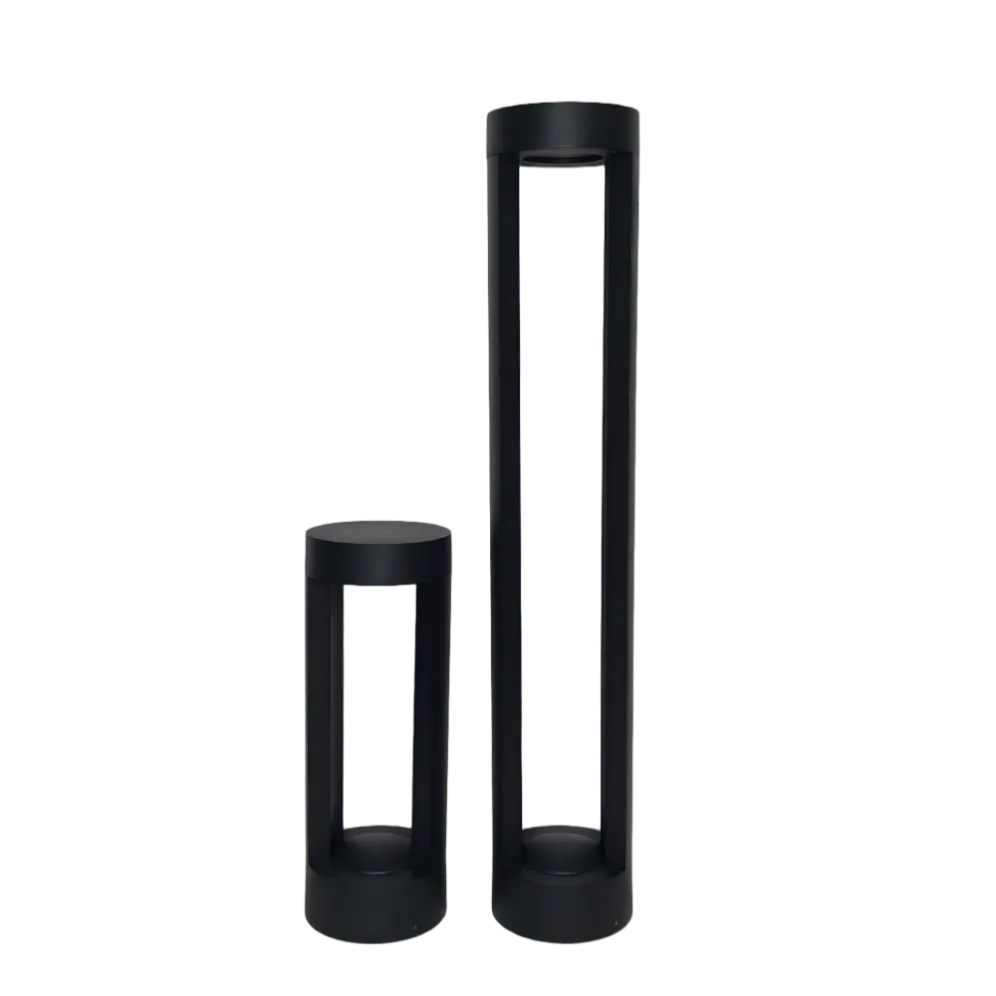

15W IP65 LED Bollard Light, 200-800mm Heights - DB-CPDA087
Open-frame 15W IP65 LED bollard light with 360° illumination. Available in 200, 400, 600 or 800 mm heights for paths, gardens and hotel landscapes.
One Bollard Design, Four Height Options
This 15W open-frame bollard is available in four heights for different landscape areas. Use the shorter versions around planting and steps, or select the taller versions for main paths and entrances.
Key Features
- Four Heights: Available in 200, 400, 600 or 800 mm.
- 360° Illumination: Provides light around the fixture and walking area.
- Open-Frame Design: Creates a lighter architectural appearance.
- 15W COB LED: The same power specification is available across all four heights.
- IP65 Aluminium Housing: Suitable for correctly installed outdoor projects.
Models and Dimensions
| Model | Power | Dimensions |
|---|---|---|
| DB-CPDA087-20H15W | 15W | Ø155 × H200 mm |
| DB-CPDA087-40H15W | 15W | Ø155 × H400 mm |
| DB-CPDA087-60H15W | 15W | Ø155 × H600 mm |
| DB-CPDA087-80H15W | 15W | Ø155 × H800 mm |
Common Specifications
| Light Source | 15W COB |
| Input Voltage | AC 85–265V, 50/60Hz |
| Beam Angle | 360° |
| Luminous Efficacy | 70–80 lm/W |
| CRI | Ra >80 |
| Colour Temperature | 3000K / 6000K |
| Housing Colour | Black |
| Material | Aluminium alloy |
| IP Rating | IP65 |
| Certification | CE / RoHS |
| Warranty | 3 years |
Choosing the Height
200–400 mm: Suitable for planting beds, steps and low-level guidance.
600 mm: Suitable for standard garden paths and residential walkways.
800 mm: Suitable for main entrances, hotel paths and wider landscape areas.
Applications
Suitable for hotel landscapes, villa gardens, residential courtyards, parks, commercial paths and building entrances.
OEM and ODM Support
DAYBREAK supports wholesalers, contractors and project buyers with OEM labels, customised packaging and project-based order support.
Request a Quote
Send us your required height, quantity, colour temperature, installation plan and delivery schedule. We can provide a datasheet, sample or project quotation.
