Low-Glare Lighting for Steps and Pathways
This 3W recessed step light uses horizontal louvers to direct light toward the walking surface. It improves step visibility while reducing direct glare.
Key Features

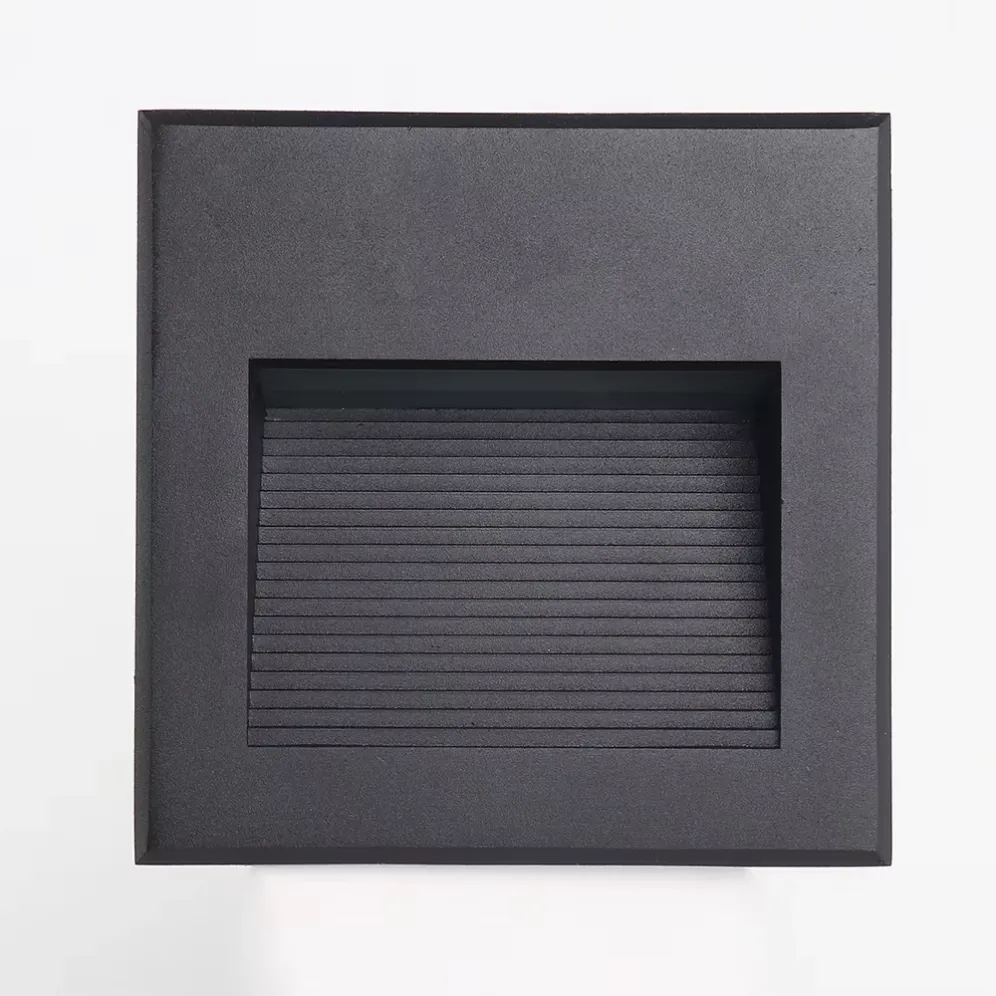

- Louvered Light Opening: Controls glare and directs light downward.

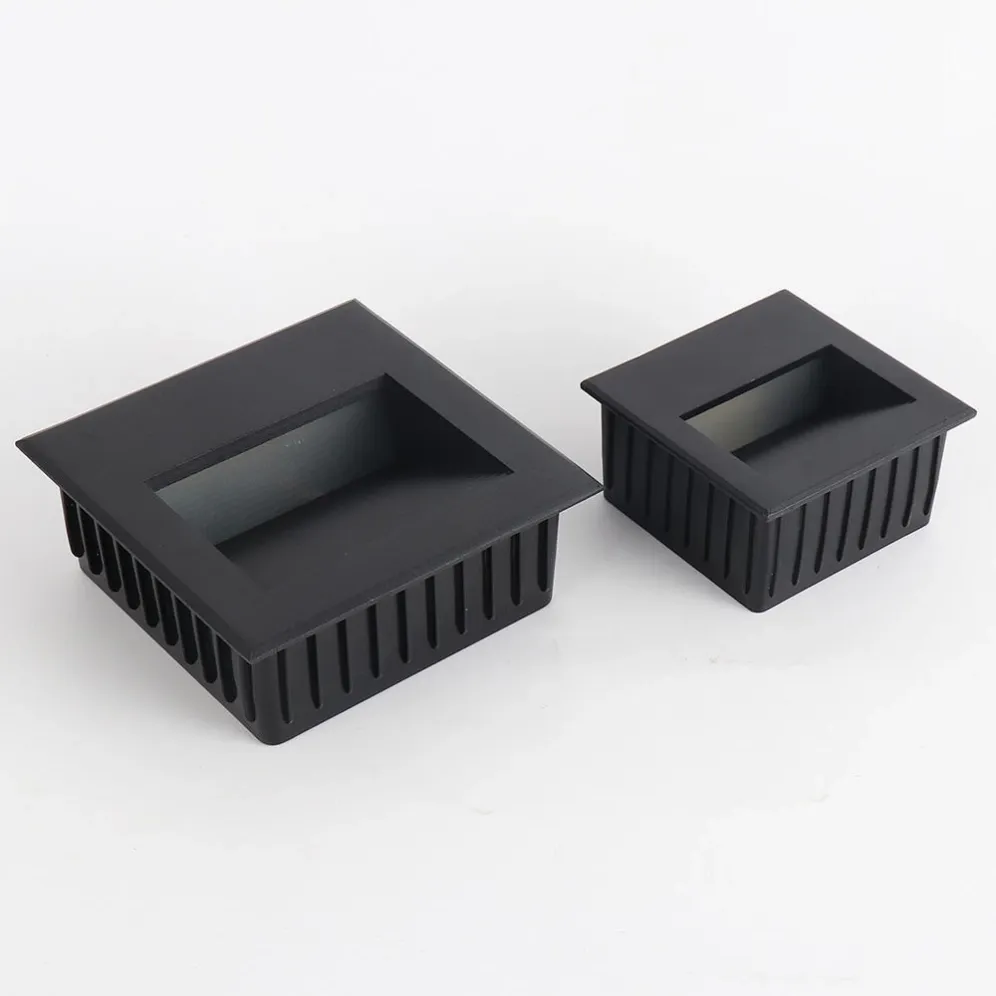

- Two Square Sizes: Available in 110 × 110 mm or 160 × 160 mm.
- 90° Beam: Provides practical coverage across steps and pathways.
- IP65 Protection: Suitable for correctly installed indoor and outdoor projects.

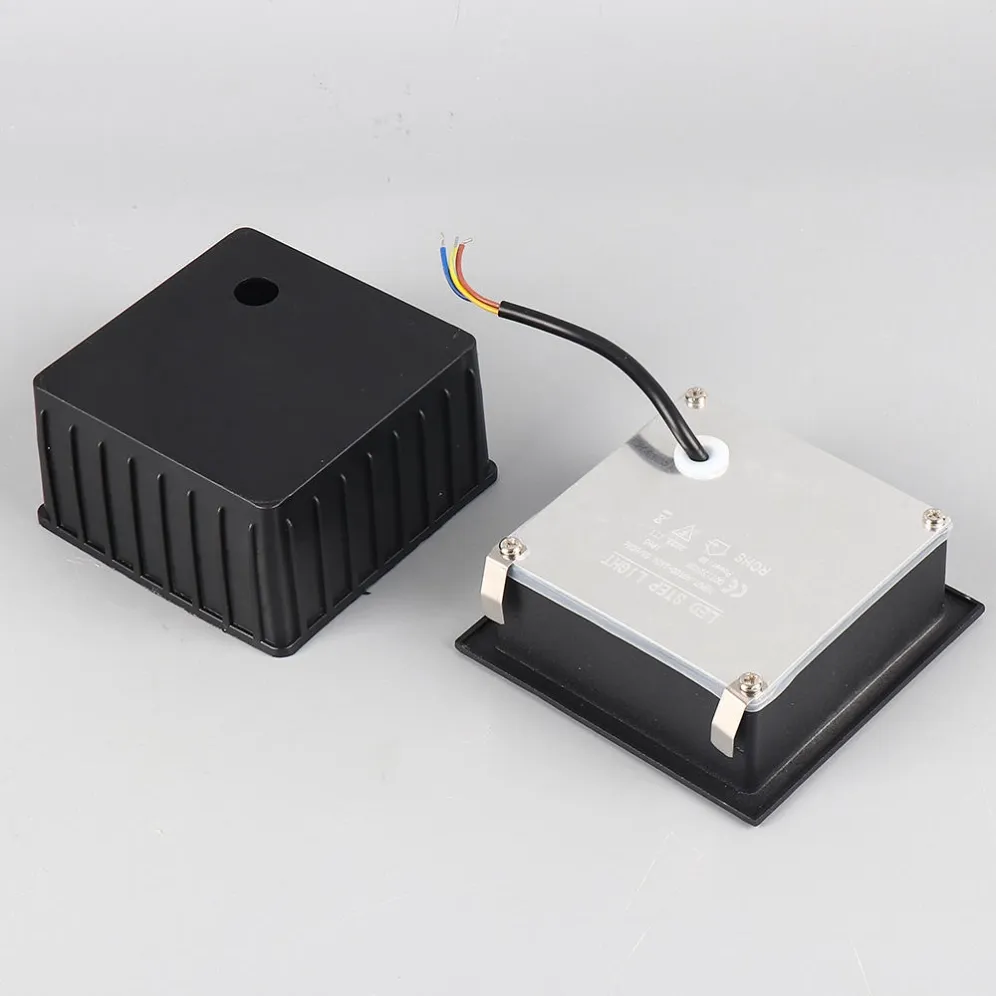

- Installation Parts Included: Supplied with the recessed mounting box.
Models and Dimensions
| Model |
Fixture Size |
Cut-out Size |
| DB-LSL-14L110-3W |
110 × 110 × 60 mm |
103 × 103 × 60 mm |
| DB-LSL-14L160-3W |
160 × 160 × 63 mm |
150 × 150 × 60 mm |
Common Specifications
| Power | 3W COB |
| Input Voltage | AC 85–265V, 50/60Hz |
| Beam Angle | 90° |
| Luminous Efficacy | 70–80 lm/W |
| CRI | Ra >80 |
| Colour Temperature | 3000K / 4000K / 6000K |
| Housing Colours | White / Black / Grey |
| Material | Aluminium |
| IP Rating | IP65 |
| Installation | Recessed mounting box included |
| Certification | CE / RoHS |
| Warranty | 3 years |
Choosing the Size
110 mm: Suitable for residential stairs, corridors and narrow walls.
160 mm: Better for wider steps, commercial walkways and larger wall surfaces.
Applications

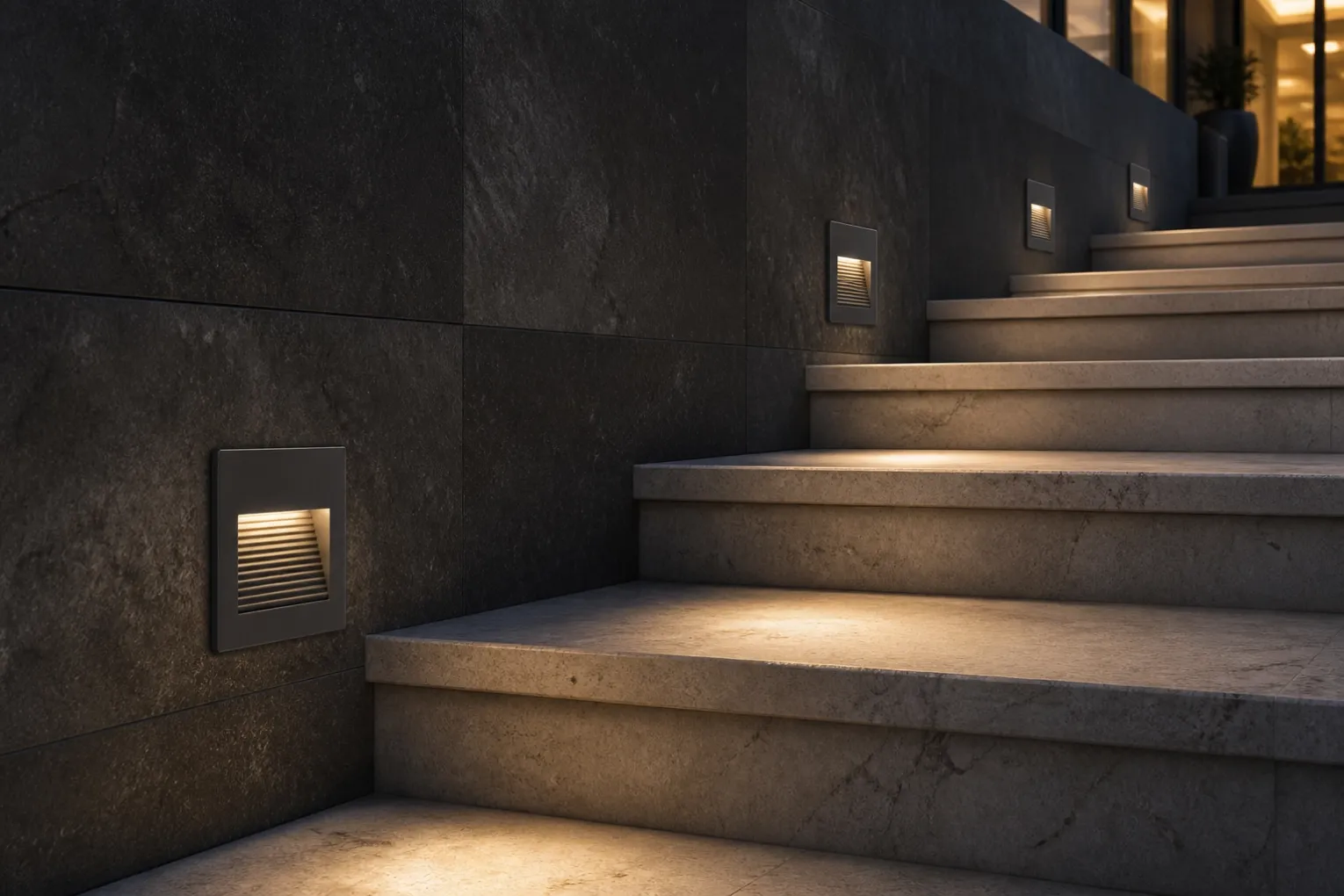

Suitable for hotel staircases, villa entrances, apartment corridors, outdoor steps, pathways and commercial passageways.
OEM and ODM Support
DAYBREAK supports wholesalers, contractors and project buyers with colour selection, OEM labels, customised packaging and project-based production.
Request a Quote
Send the required fixture size, cut-out dimensions, housing colour, colour temperature, quantity and project drawings. We can confirm the suitable model and provide technical files, a sample proposal or project pricing.
