3W IP65 PIR Sensor Stair Light, 185mm - DB-LSL-20W185S-3W
Slim PIR stair light with automatic control and a focused 10° beam. The 185 mm faceplate adds clean, low-glare guidance lighting to hotels, villas and stairways.
Smart Guidance Lighting with a Slim Architectural Look
This 185 mm recessed stair light combines a slim faceplate, PIR sensor and focused downward beam. It automatically provides low-level lighting when people approach, improving stair visibility without flooding the space with light.
Why Choose It?
- Automatic PIR Control: Provides light when movement is detected.
- Low-Glare 10° Beam: Illuminates the next tread instead of shining into the eyes.
- Slim 185 mm Faceplate: Creates a clean architectural line along the staircase.
- IP65 Protection: Suitable for correctly installed indoor and outdoor projects.

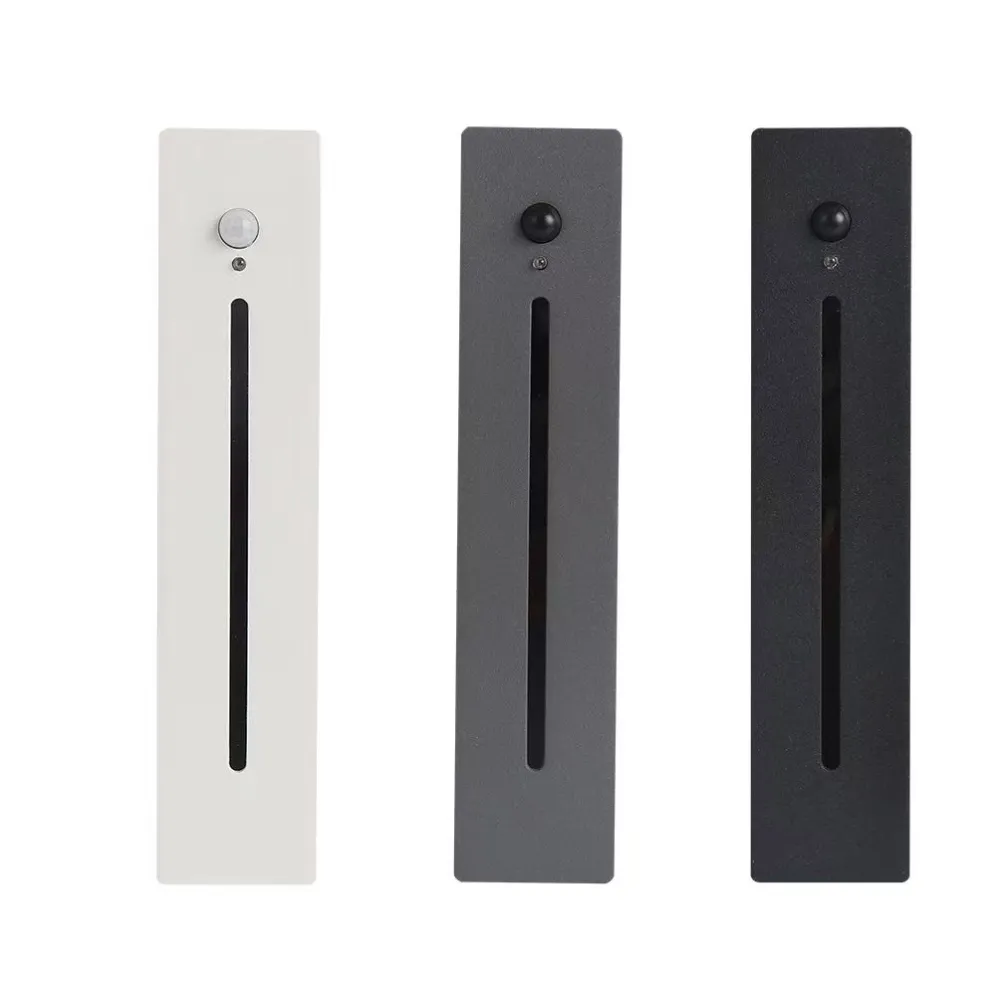

- Easy Specification: Available in three finishes and three colour temperatures.
Specifications
| Model | DB-LSL-20W185S-3W |
| Power / LED | 3W Cree LED |
| Sensor | PIR motion sensor |
| Input | AC 85–265V, 50/60Hz |
| Beam Angle | 10° |
| Efficiency | 70–80 lm/W |
| Size | 40 × 185 × 44 mm |
| Cut-out | 33 × 170 × 41 mm |
| CCT | 3000K / 4000K / 6000K |
| Finish | White / Grey / Black |
| Material | High-grade aluminium |
| IP Rating | IP65 |
| Installation | Recessed mounting parts included |
Recommended Applications

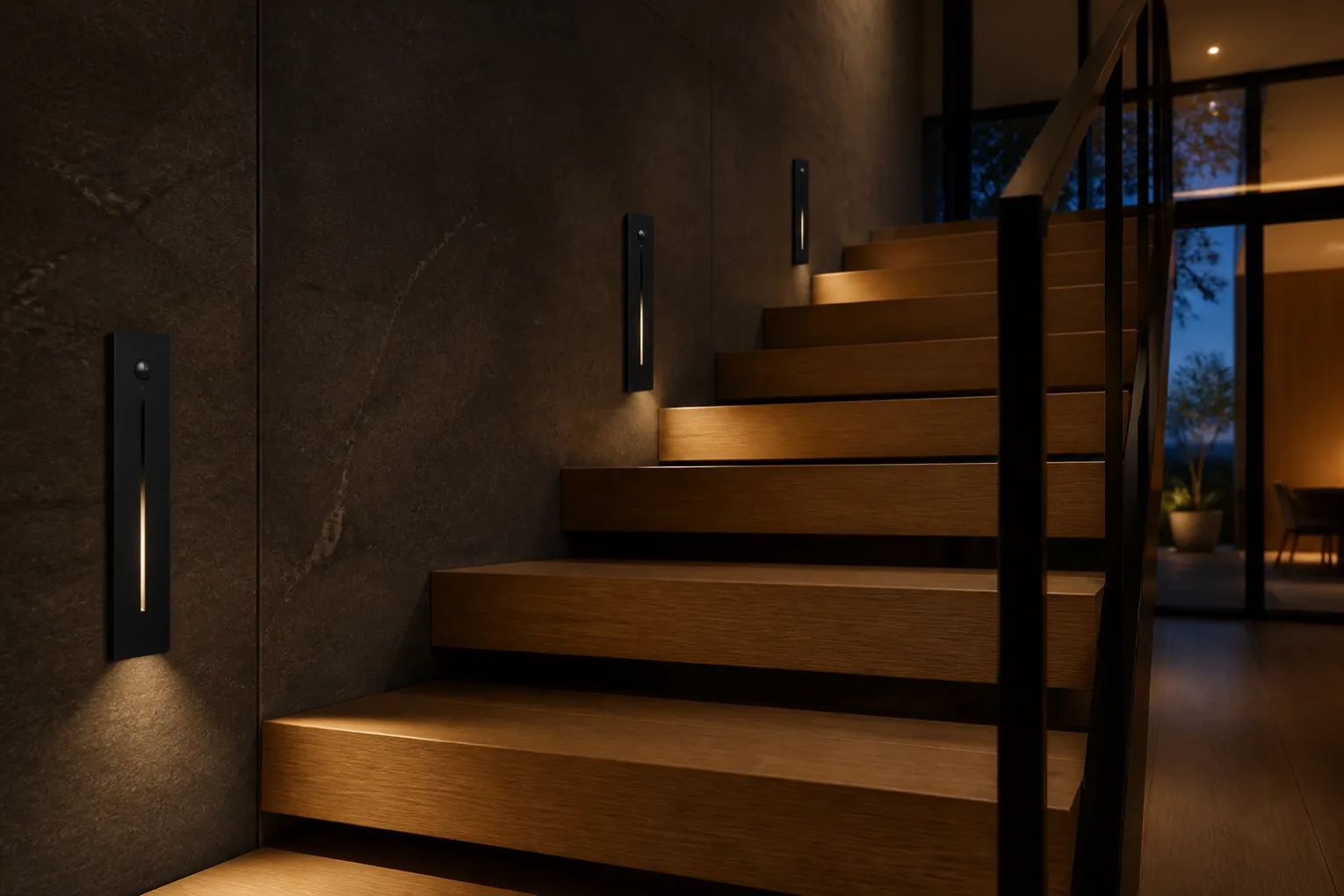

Ideal for hotel staircases, villas, apartment corridors, commercial buildings and indoor or outdoor passageways.
Built for Project Orders
Choose the finish and colour temperature to suit the interior or façade. OEM labels and customised packaging are available for wholesalers, contractors and lighting brands.
Planning a stair-lighting project? Send us the drawings, quantity, finish and CCT for a datasheet, sample or quotation.
