One Step Light Design, Two Installation Formats
This 3W recessed step light is available in horizontal and vertical versions. The deep hooded opening directs light downward, helping illuminate steps and pathways without exposing the light source.
Key Features
- Horizontal or Vertical: Select the format that best fits the installation surface.
- Hooded Light Opening: Reduces direct glare and controls the downward beam.
- 90° Beam: Provides broad guidance lighting across walking surfaces.
- IP65 Protection: Suitable for correctly installed indoor and outdoor projects.

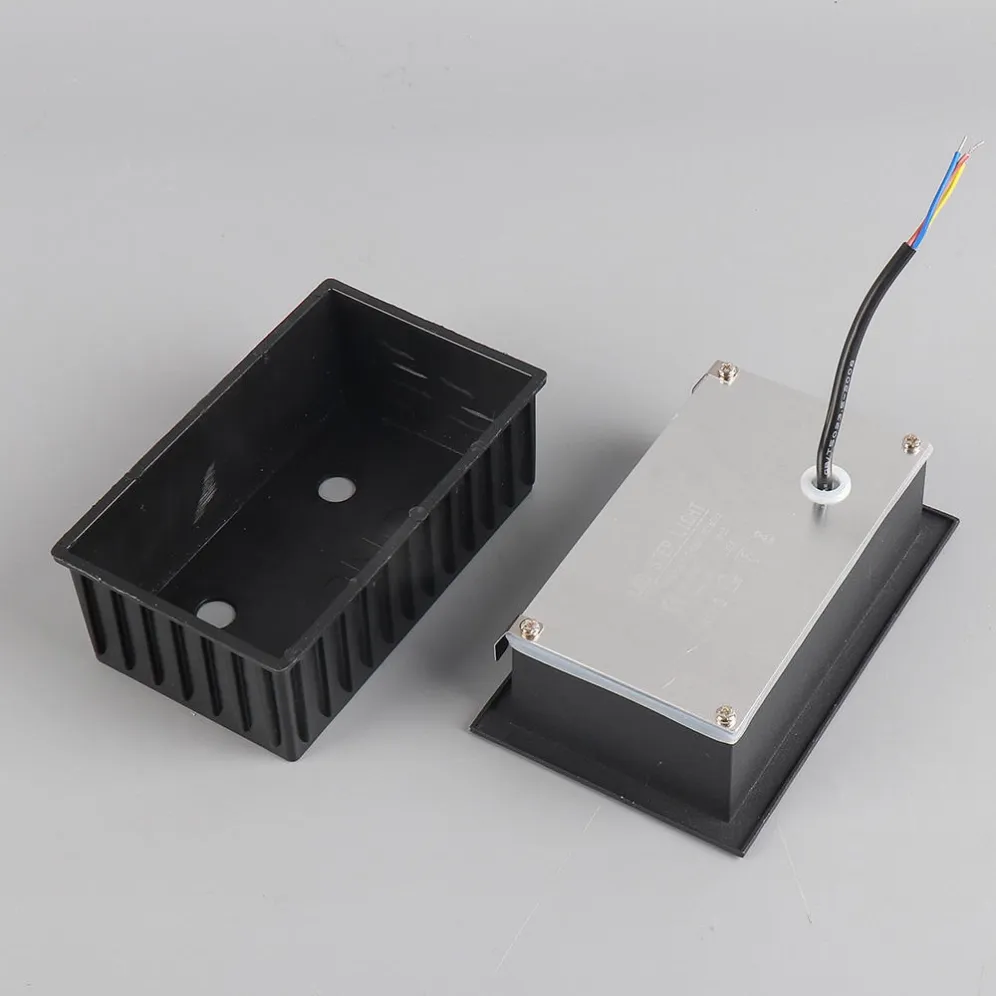

- Installation Parts Included: Supplied with the recessed mounting box.
Models and Dimensions
| Model |
Format |
Fixture Size |
Cut-out Size |

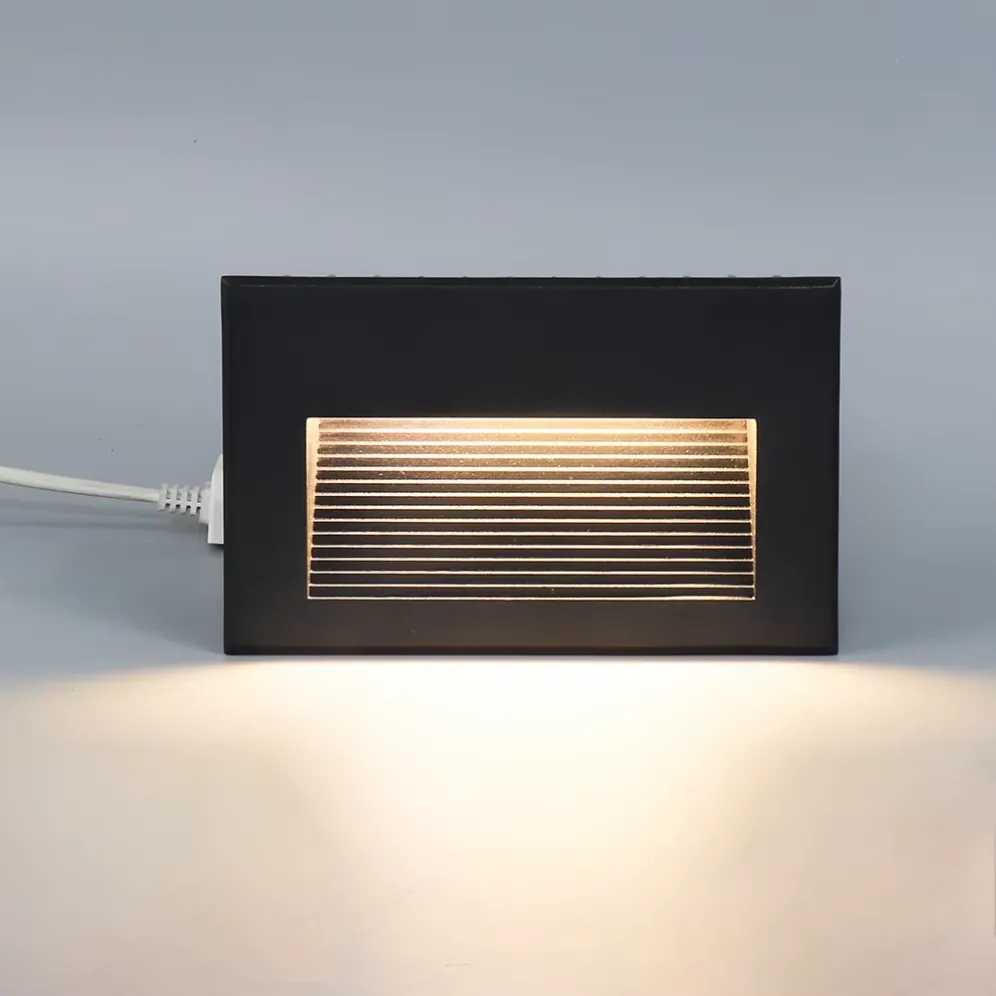

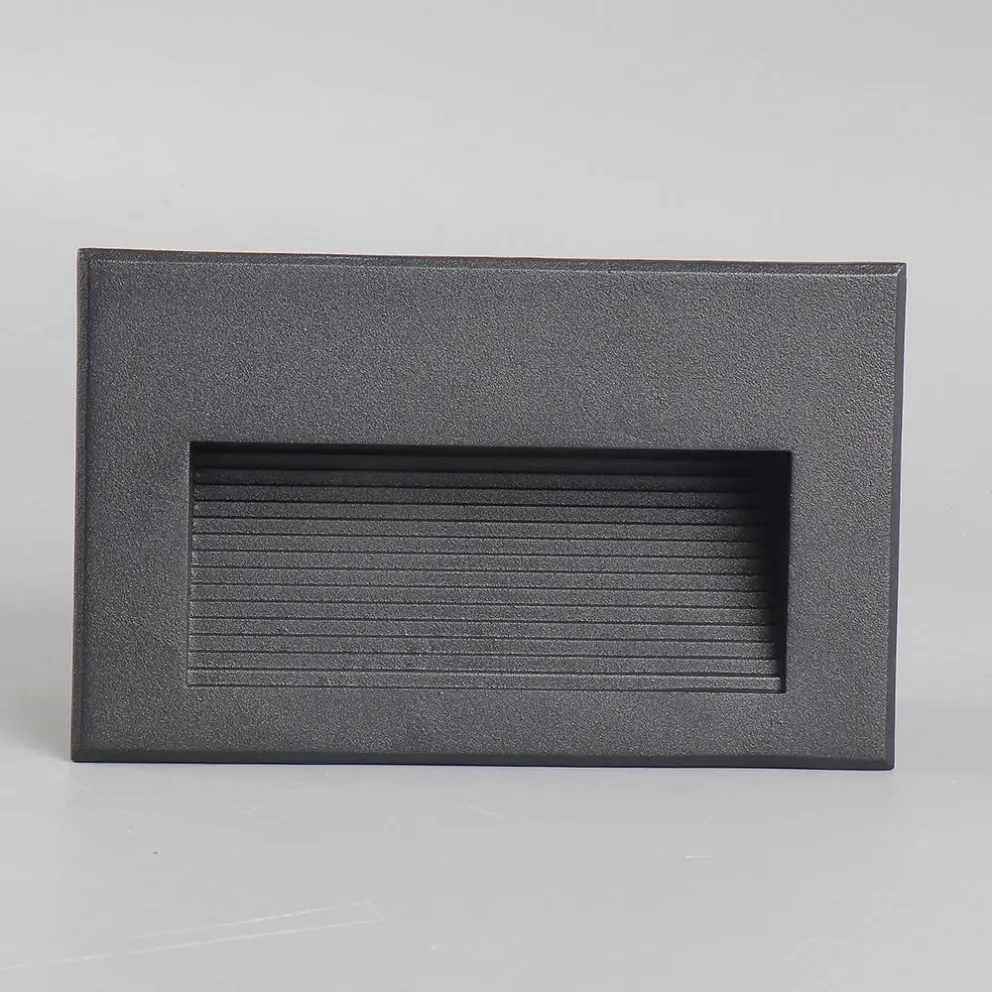

| DB-LSL-16L165-3W |
Horizontal |
165 × 105 × 60 mm |
160 × 100 × 70 mm |

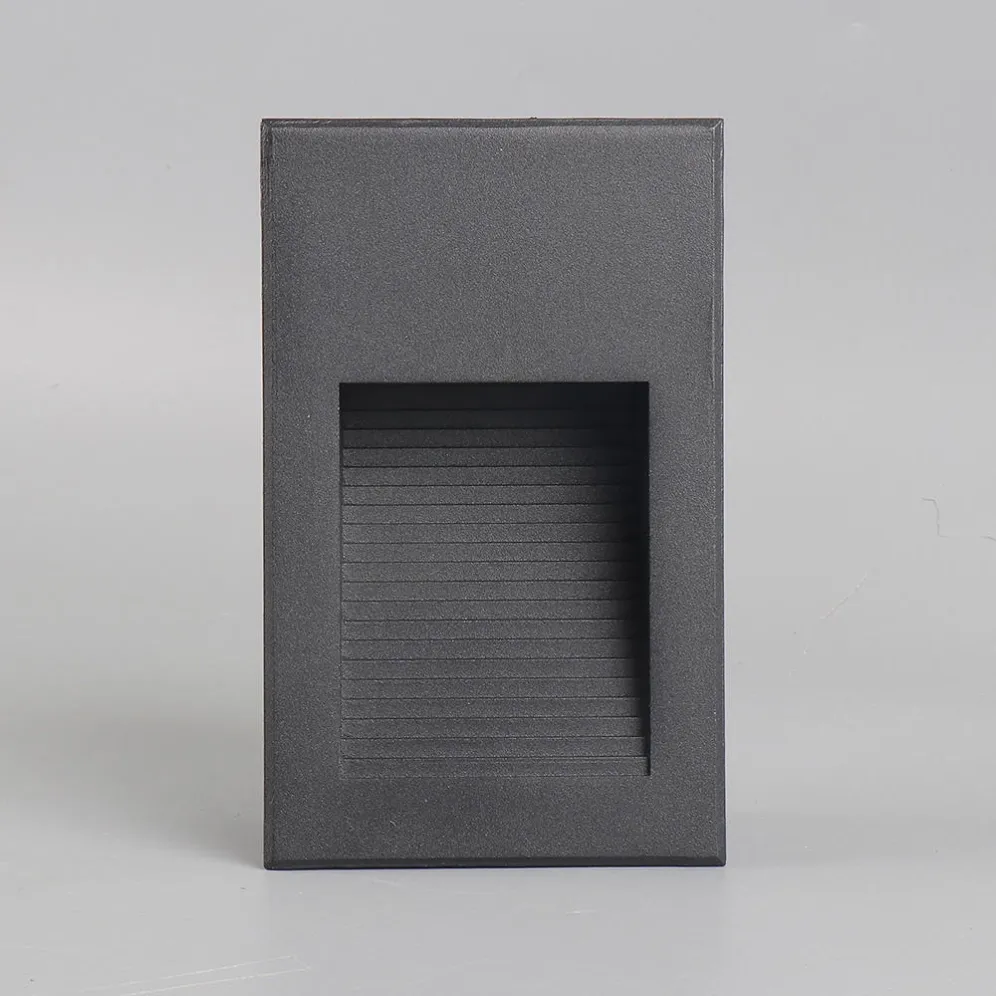

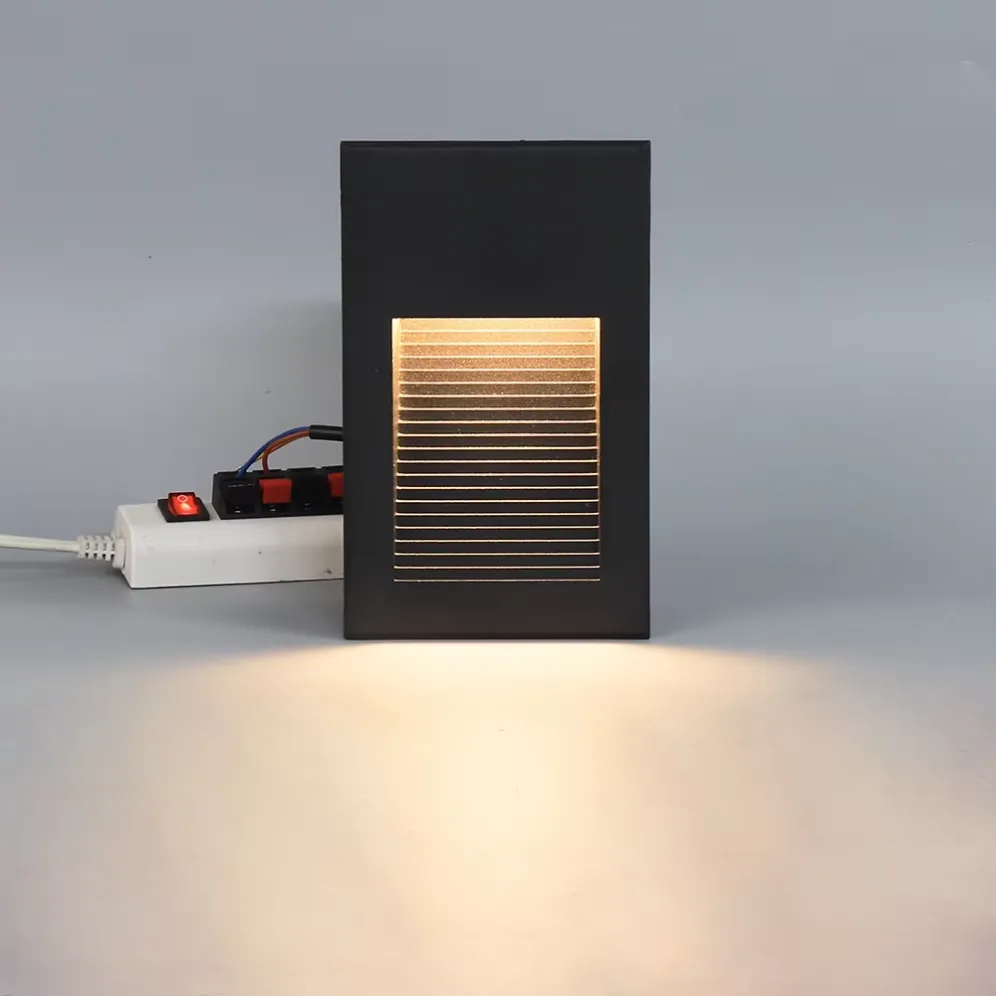

| DB-LSL-16L105-3W |
Vertical |
105 × 165 × 60 mm |
100 × 160 × 70 mm |
Common Specifications
| Power | 3W COB |
| Input Voltage | AC 85–265V, 50/60Hz |
| Beam Angle | 90° |
| Luminous Efficacy | 70–80 lm/W |
| CRI | Ra >80 |
| Colour Temperature | 3000K / 4000K / 6000K |
| Housing Colours | White / Black / Grey |
| Material | Aluminium |
| IP Rating | IP65 |
| Installation | Recessed mounting box included |
| Certification | CE / RoHS |
| Warranty | 3 years |
Choosing the Format
Horizontal: Recommended for stair risers and wider pathway walls.
Vertical: Recommended for narrow columns, boundary walls and upright architectural details.
Applications

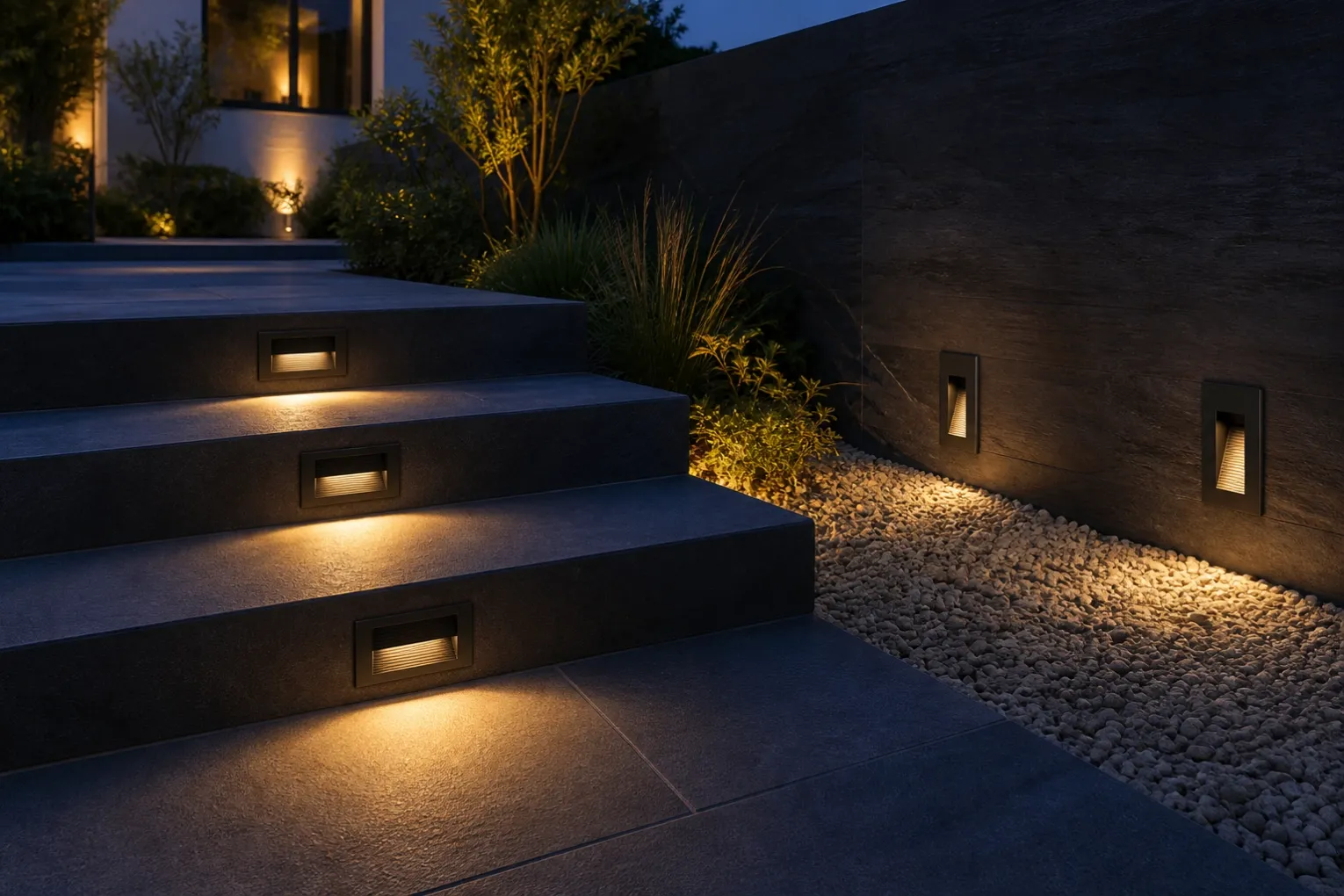

Suitable for villa steps, hotel pathways, garden walls, apartment corridors, boundary walls and commercial entrances.
OEM and ODM Support
DAYBREAK supports wholesalers, contractors and project buyers with colour selection, OEM labels, customised packaging and project-based production.
Request a Quote
Send the required format, cut-out dimensions, housing colour, colour temperature, quantity and project drawings. We can confirm the suitable model and provide technical files, a sample proposal or project pricing.
