5W/9W Round Rotatable LED Wall Light for Hotels – DB-LWL-A09-R Series
Rotatable round LED wall light that lets designers adjust the light opening and wall-wash effect. Available in 5W and 9W for hotels, corridors, and feature walls.
Adjust the Light Effect After Installation

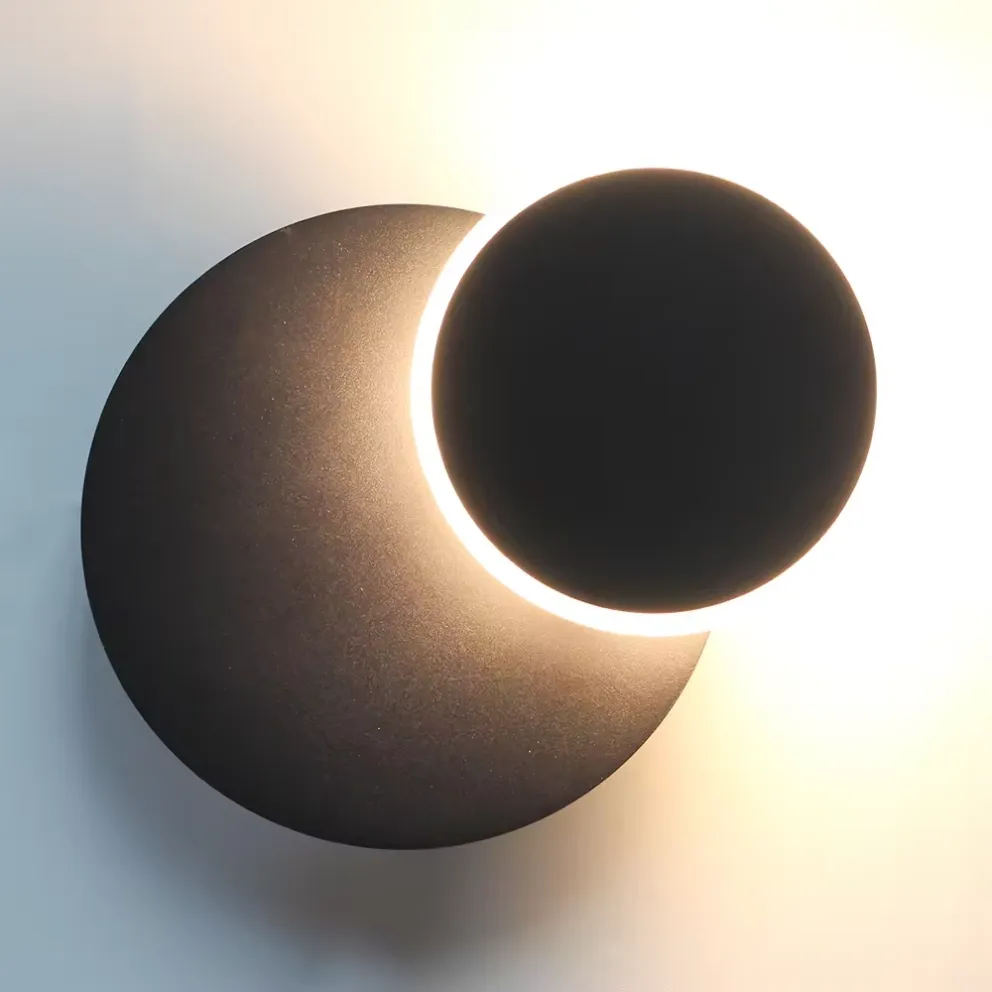

The DB-LWL-A09-R uses a rotating front disc to control how much light is exposed and where it falls on the wall. It gives designers and installers flexibility to set the final effect on site without moving the electrical point.
Key Benefits
- Rotatable Front Disc: Adjusts the light opening and wall-wash direction.
- Low-Glare Output: The concealed LED produces soft indirect light for guest areas.
- Two Coordinated Sizes: Use the same design in small rooms and larger public spaces.
- Simple Specification: Wide-voltage input, three CCT options and black or white finishes cover common project requirements.
Technical Specifications
| Specification | 5W | 9W |
|---|---|---|
| Model | DB-LWL-A09-5WR | DB-LWL-A09-9WR |
| Light Source | 5W SMD | 9W SMD |
| Luminous Flux | 280–300 lm | 480–540 lm |
| Fixture Size | Ø161 × 52mm | Ø235 × 55mm |
| Front Disc | Ø120mm | Ø180mm |
| Input Voltage | AC85–265V, 50/60Hz | |
| Driver | DONE driver | |
| CCT | Warm White / Neutral White / White | |
| IP Rating | IP44 | |
| Material | PMMA and steel | |
| Finish | White / Black | |
| Installation | Surface-mounted | |
| Certifications | CE and RoHS | |
| Warranty | 3 years | |
Where to Use It

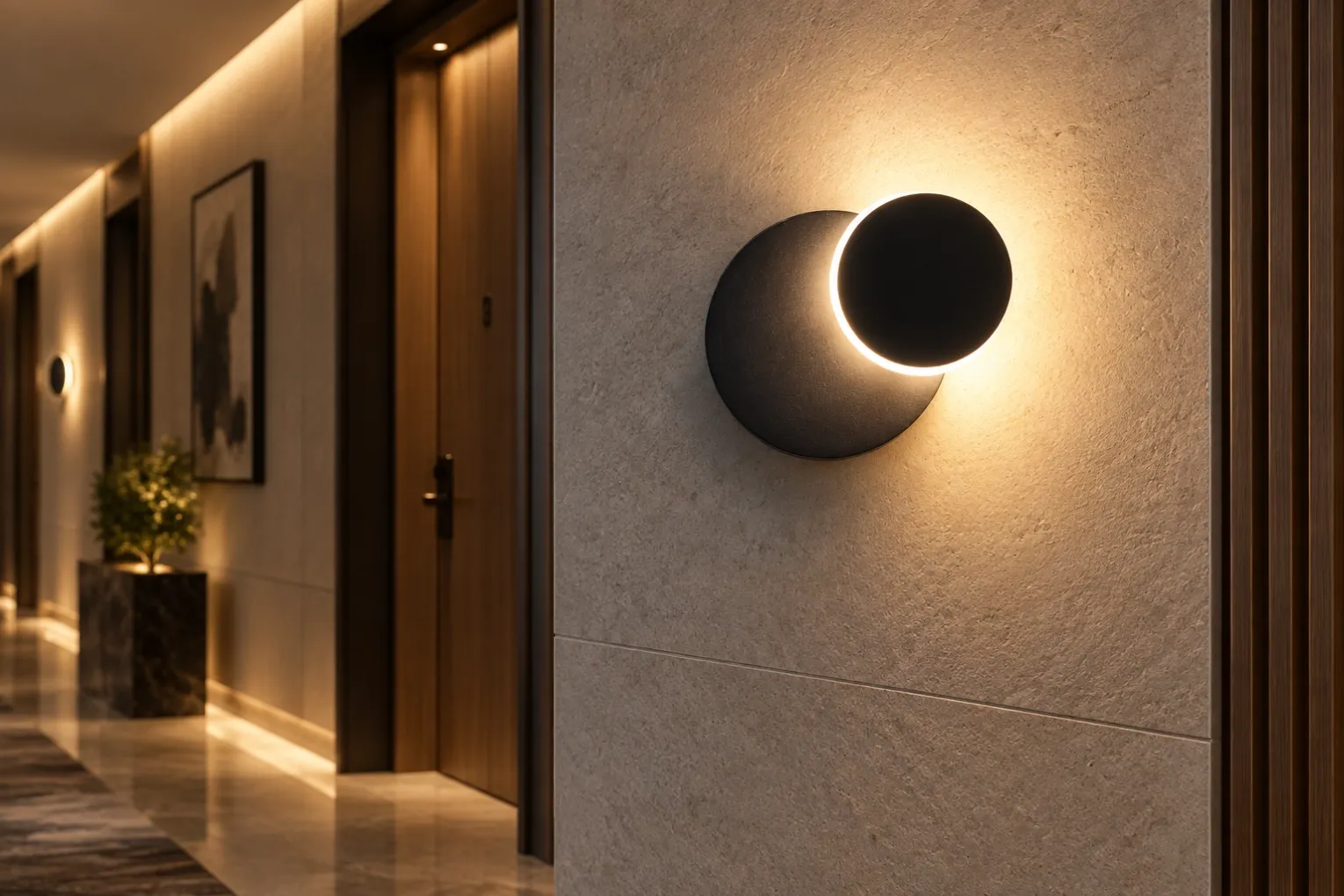

The 5W model suits guest rooms, apartment entrances and narrow corridors. The larger 9W model gives more output and stronger visual presence in hotel corridors, lounges, restaurants and reception areas. Use indoors or in protected covered areas according to the IP44 rating.
Project and OEM Support
CCT, finish, product labels and packaging can be prepared for project and wholesale orders. Send us the model, quantity, CCT, finish and destination to request a datasheet, sample or quotation.
