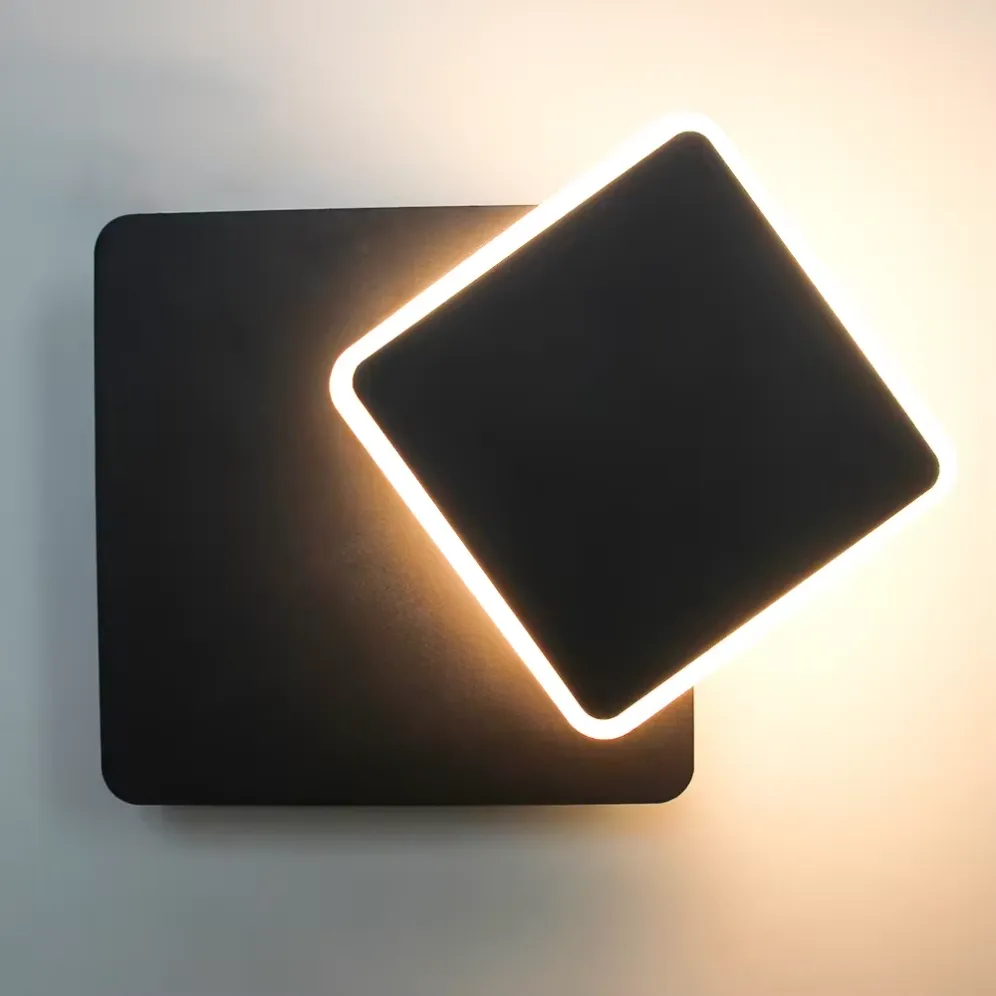

5W/9W Square Rotatable LED Wall Light – DB-LWL-A09-S
Square wall light with a rotatable front panel for adjusting the illuminated edge and light direction. Available in 5W and 9W for hospitality interiors.
Shape the Wall-Wash Effect on Site
The DB-LWL-A09-S combines a fixed square backplate with a rotating front panel. Turning the front panel changes the exposed illuminated edge and light direction, helping installers match the final effect to the wall layout.
Key Benefits
- Rotatable Front Panel: Changes the illuminated edge and wall-wash direction.
- Comfortable Indirect Light: The concealed LED reduces direct glare in corridors and guest areas.
- Two Coordinated Sizes: The 5W and 9W models keep one design language across the project.
- Easy to Specify: Three CCT options and black or white finishes suit different interior schemes.
Technical Specifications
| Specification | 5W | 9W |
|---|---|---|
| Model | DB-LWL-A09-5WS | DB-LWL-A09-9WS |
| Light Source | 5W SMD | 9W SMD |
| Luminous Flux | 280–300 lm | 480–540 lm |
| Fixture Size | 161 × 161 × 52mm | 235 × 235 × 55mm |
| Input Voltage | AC85–265V, 50/60Hz | |
| Driver | DONE driver | |
| CCT | Warm White / Neutral White / White | |
| IP Rating | IP44 | |
| Material | PMMA and steel | |
| Finish | White / Black | |
| Installation | Surface-mounted | |
| Certifications | CE and RoHS | |
| Warranty | 3 years | |
Where to Use It
Use the 5W model in guest rooms, apartment entrances and smaller corridors. Choose the 9W model for hotel lobbies, lounges, restaurants and larger feature walls. Install indoors or in protected covered areas according to the IP44 rating.
Project and OEM Support
CCT, finish, product labels and packaging can be prepared for project and wholesale orders. Send us the wattage, quantity, CCT, finish and destination to request a datasheet, sample or quotation.
