How Should Contractors Install LED Wall Lights on Drywall Partitions?
Check the wall structure, reinforcement, cable outlet, and mounting plate before closing drywall partitions to prevent unstable fittings and costly rework.
Contractors should not install an LED wall light directly onto unsupported plasterboard. Before closing the drywall partition, confirm the fixture weight, mounting-plate dimensions, fixing points, cable outlet and available space behind the board. Provide reinforcement or a suitable wall box where required. This preparation helps prevent loose fittings, exposed cable holes and costly wall repairs.
Can an LED wall light be fixed directly to drywall?
A light fitting may appear small, but the plasterboard alone may not provide a reliable fixing surface. The correct method depends on the fixture, wall construction and local installation requirements.
For project installations, the contractor should identify the metal or timber studs and prepare a secure fixing point before the wall is closed. Heavier or projecting fittings may require additional reinforcement. The final method should be approved by the project’s qualified installer.
What must be checked before closing the wall?
| Item to confirm | Why it matters |
|---|---|
| Fixture dimensions and weight | Determines the required fixing support |
| Mounting-plate size and hole spacing | Allows the fixing points to be prepared accurately |
| Cable-entry position | Prevents the cable outlet from remaining visible |
| Wall box or reinforcement | Provides a secure mounting surface |
| Finished wall thickness | Affects screw length and mounting clearance |
| Installation and maintenance access | Allows safe wiring and future removal |
Why is the cable outlet position important?
The wall cable should enter behind the fixture or through the opening provided in its mounting plate. If the site outlet and fixture entry do not align, the installer may need to enlarge the wall opening, expose part of the cable or reposition the fitting.

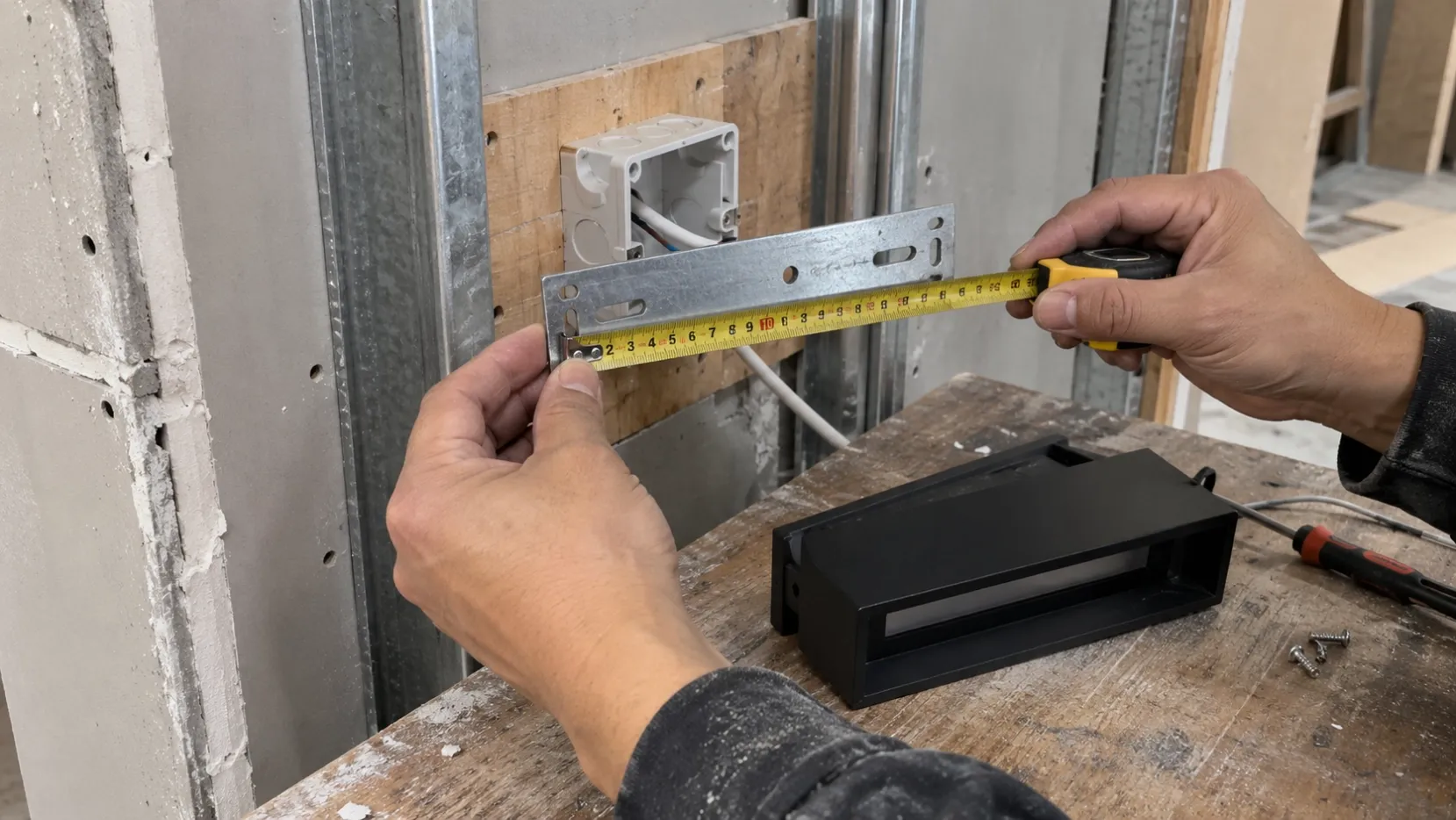

Before preparing the partition, request the product drawing and mark the fixture centreline, mounting holes and cable entry on the wall elevation.
Should contractors use a wall box or reinforcement board?
There is no single answer for every wall light. A wall box may be required for electrical connections or by local regulations. A reinforcement board can provide a stable surface for the mounting screws. Some installations may need both.
The contractor should compare the fixture’s rear structure with the proposed wall build-up. DAYBREAK can provide available product dimensions and mounting details for review, but the project electrician and contractor must confirm the final installation method on site.
When should a sample be checked?
Check a sample before closing multiple identical wall positions whenever possible. The sample allows the team to verify:
- Whether the base covers the cable outlet completely
- Whether the mounting holes match the prepared support
- Whether wiring space is sufficient
- Whether the light direction suits the wall and room layout
- Whether the finish matches nearby materials
One approved installation point can then be used as the reference for the remaining rooms or corridors.
What should contractors send when requesting wall lights?
Send the wall construction, finished wall thickness, electrical-box dimensions, cable-outlet position, required quantity and a wall elevation. If an existing opening or wall box must be reused, include its measurements and a clear photo.
Frequently Asked Questions
Can the mounting plate be confirmed before ordering?
Yes. Ask for the rear view, mounting-plate dimensions and fixing-hole spacing for the selected model.
Can one mounting detail be used for every wall light?
No. Different models can have different base sizes, fixing points, cable entries and wiring-space requirements.
Should the drywall opening be prepared from a catalogue photo?
No. Use the confirmed dimensional drawing or an approved sample rather than estimating from a product image.
Who should approve the final fixing method?
The project contractor and qualified electrician should approve it according to the wall structure and local requirements.
What information helps DAYBREAK review the application?
Provide the selected model, quantity, wall construction, wall-box details, installation drawing and project country.
Next Step
Review DAYBREAK’s LED wall-light range. Before preparing the drywall, send us the model, wall build-up, box dimensions and elevation so the available product drawing and mounting details can be checked.
