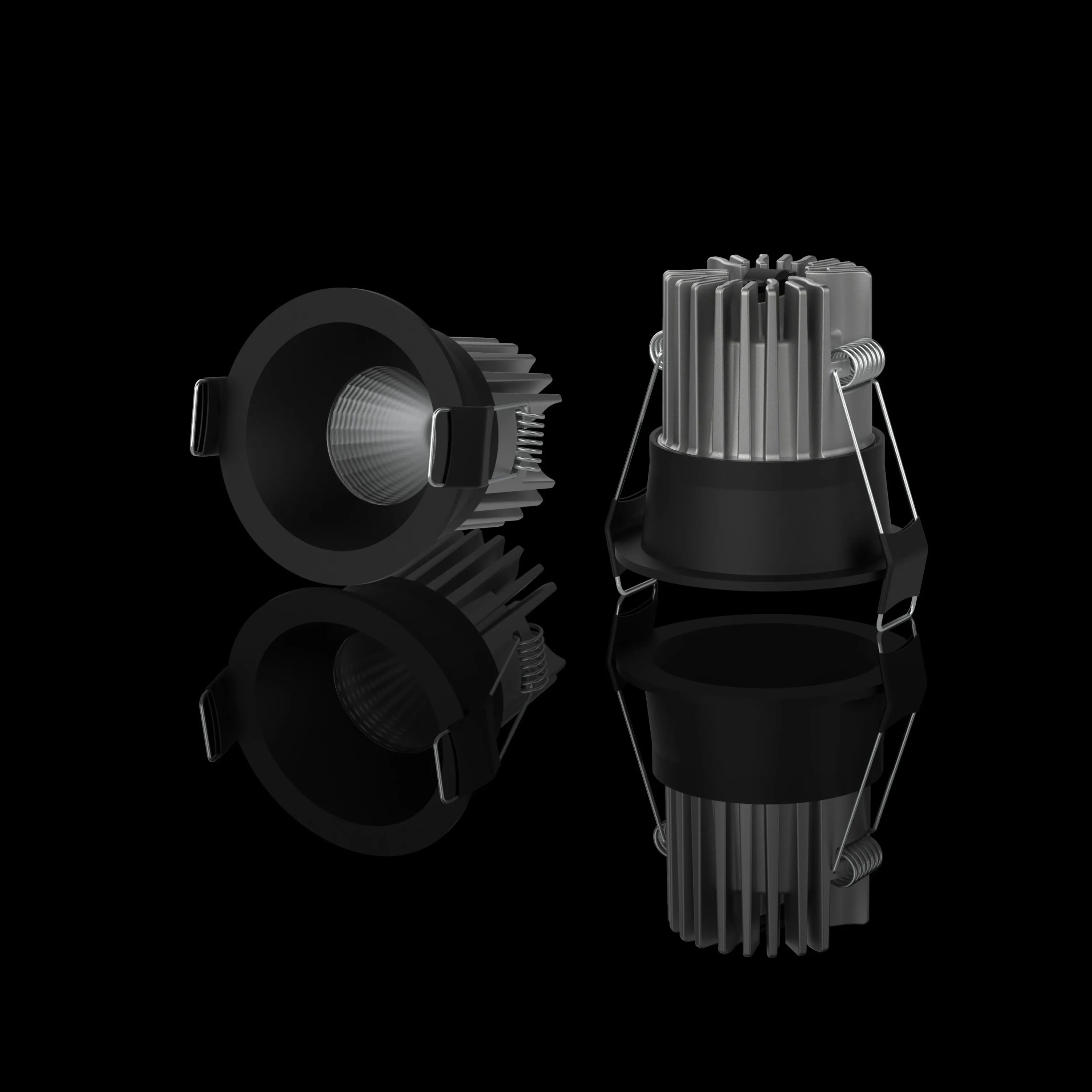

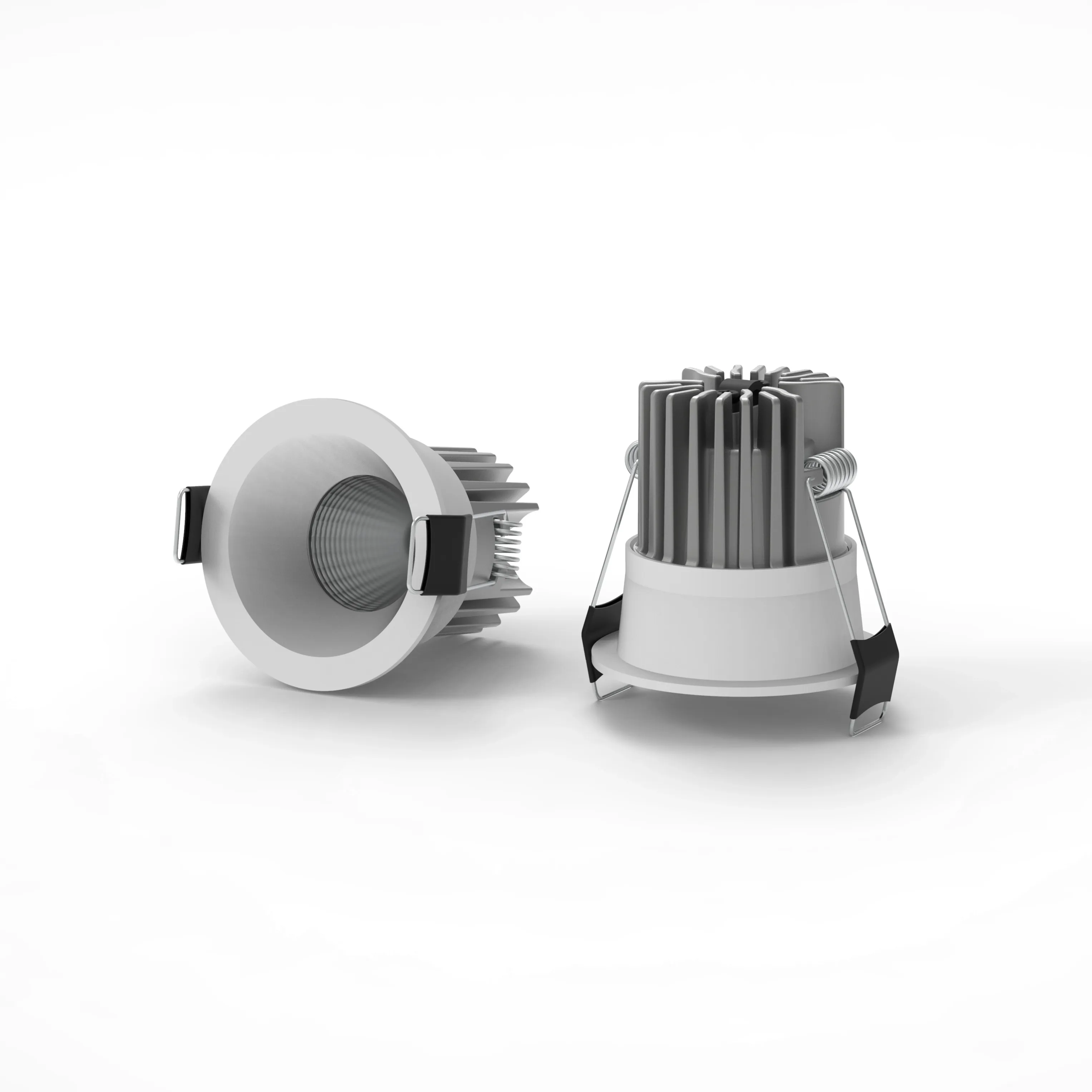

10W/18W 60° Recessed COB Downlight with Lifud Driver – DB-DL5B
10W and 18W recessed COB downlight with a 60° beam and Lifud driver. Available with 75mm or 95mm cut-outs for retail, hotel, and commercial interiors.
Specifications
- Power
- 10W / 18W
- Finish
- Black / White
- CCT
- Warm White / Neutral White / White
Focused Downlighting for Commercial Interiors
The DB-DL5B Series uses a recessed COB light source and 60° beam to provide controlled general lighting without a bulky ceiling profile. The 10W and 18W options cover different ceiling heights and lighting levels while keeping the same product design.
Key Project Benefits
- 60° Beam: Provides useful floor and display coverage without an overly narrow hotspot.
- Deep-Recessed COB: Sets the light source back from the ceiling line for better visual comfort.
- Two Output Options: Select 10W for smaller areas or 18W where more light is required.
- Lifud Driver: A recognised driver option for commercial lighting projects.
- Clear Cut-Out Sizes: The specified 75mm and 95mm cut-outs simplify ceiling coordination.
Technical Specifications
| Specification | 10W | 18W |
|---|---|---|
| Model | DB-DL5B-COB-10W | DB-DL5B-COB-18W |
| Power | 10W | 18W |
| Fixture Size | Ø85 × 80mm | Ø103 × 95mm |
| Ceiling Cut-Out | Ø75mm | Ø95mm |
| Beam Angle | 60° | |
| Input Voltage | AC220V | |
| Driver | Lifud | |
| CCT | Warm White / Neutral White / White | |
| Material | Aluminium and PC | |
| Finish | White / Black | |
| Installation | Recessed ceiling installation | |
| Certifications | CE and RoHS | |
| Warranty | 3 years | |
Which Model Fits the Project?
Choose the 10W model for hotel rooms, residential areas and smaller retail zones. Use the 18W model for shops, reception areas and commercial spaces requiring higher output. Confirm the 75mm or 95mm ceiling cut-out before ordering.
Applications

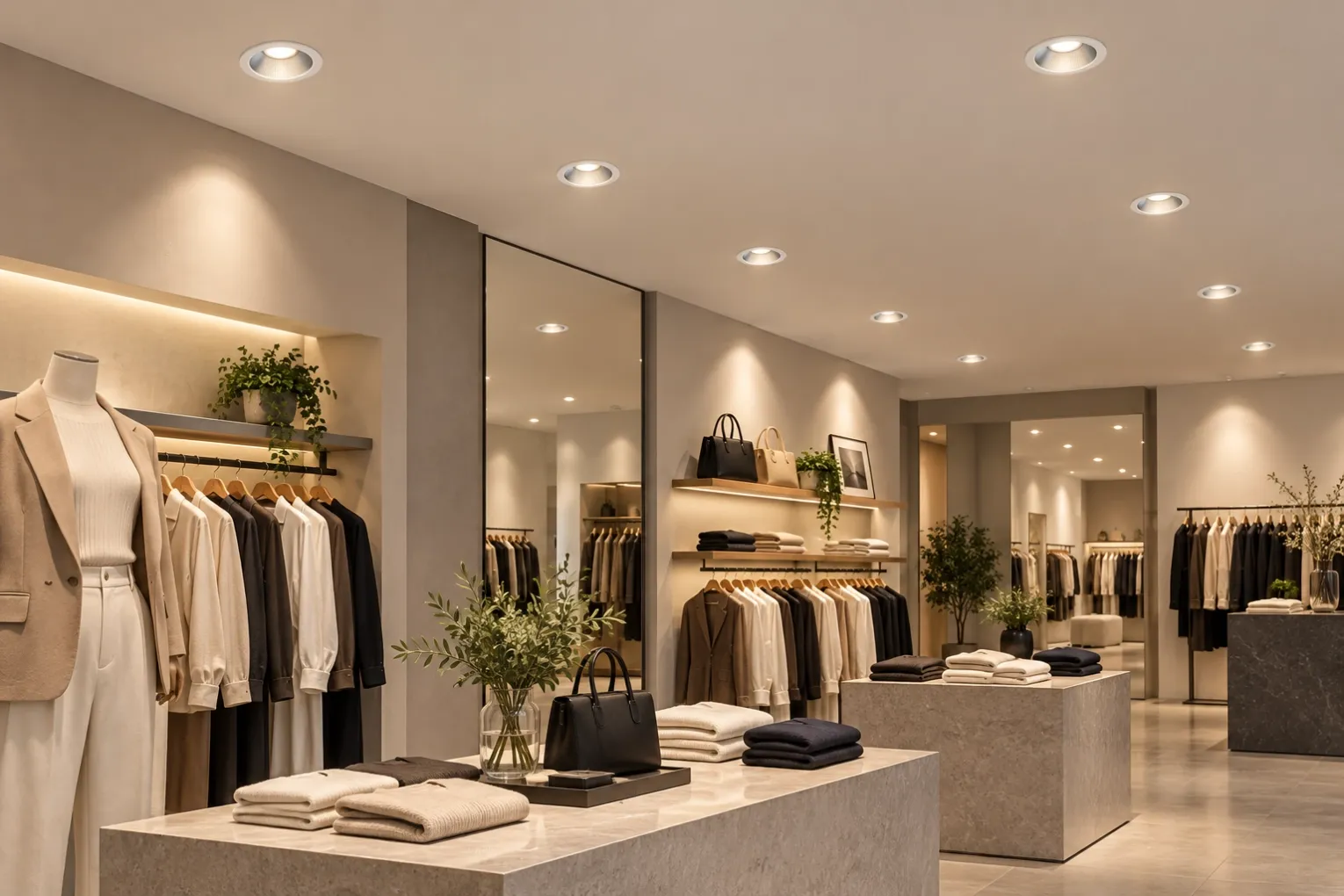

Suitable for retail stores, hotels, restaurants, offices, reception areas and residential interiors. The 60° beam works well for general lighting and wider display coverage.
Project and OEM Support
CCT, black or white finish, product labels and packaging can be prepared for project and wholesale orders. Send us the wattage, quantity, CCT, finish and destination to request a datasheet, sample or quotation.
