12W–30W Ra>95 Zoomable 48V Magnetic Track Spotlight, 15°–60° – DB-TL20-M05
Ra>95 magnetic track spotlight with an adjustable 15°–60° beam. Available in 12W, 24W and 30W for retail displays, galleries, showrooms and hospitality projects.
One Spotlight for Narrow and Wide Display Lighting

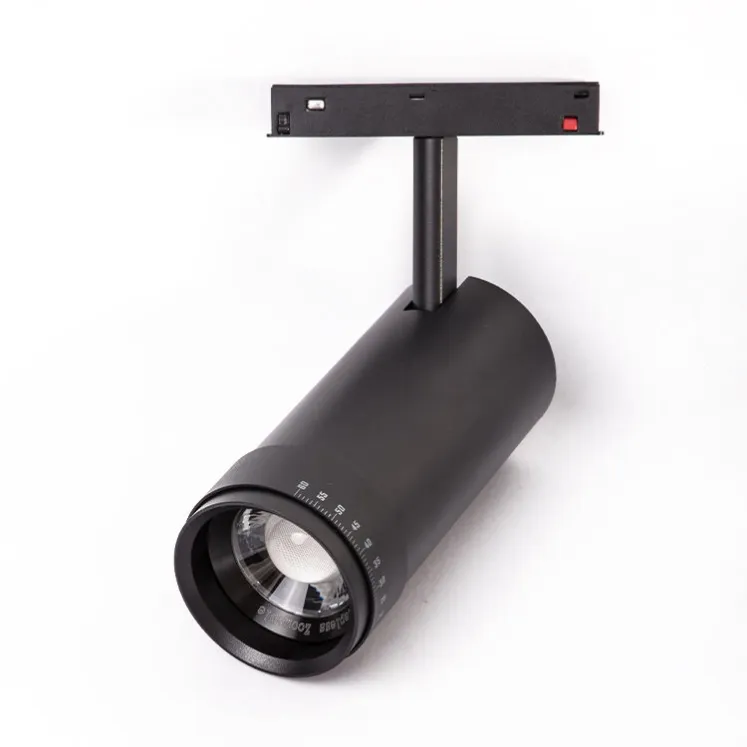

The DB-TL20-M05 is a zoomable 48V magnetic track spotlight with an adjustable 15°–60° beam. The beam can be narrowed to highlight a product or artwork, or widened to cover a larger display area. Ra>95 colour rendering makes it suitable for projects where product colours and material finishes need to appear natural.
Why Use an Adjustable Beam Spotlight?
- 15° narrow beam: Highlights individual products, artwork and small focal points.
- Wider beam up to 60°: Covers shelves, display tables and larger wall areas.
- On-site adjustment: The beam can be changed when the display layout or illuminated object changes.
- Ra>95: Supports more accurate presentation of fabrics, artwork, finishes and merchandise colours.

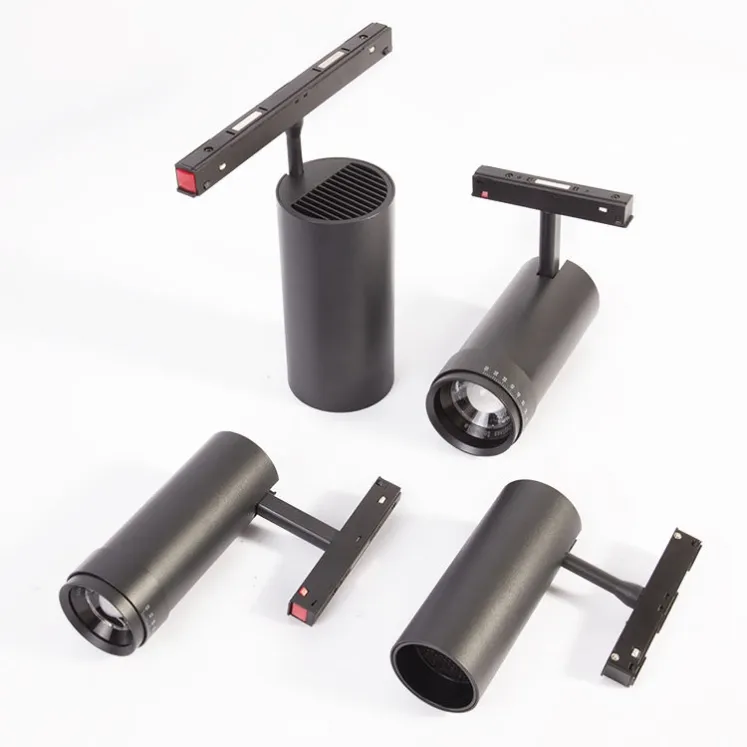

- Three power options: Select 12W, 24W or 30W according to mounting height and required light output.
Model Selection
| Model | Power | Dimensions | Adjustable Beam |
|---|---|---|---|
| DB-TL20-M05-12W | 12W | Ø50 × 130 mm | 15°–60° |
| DB-TL20-M05-24W | 24W | Ø65 × 160 mm | 15°–60° |
| DB-TL20-M05-30W | 30W | Ø73 × 180 mm | 15°–60° |
Technical Specifications
| Product Type | Zoomable magnetic track spotlight |
|---|---|
| Input Voltage | DC48V |
| Power Options | 12W / 24W / 30W |
| Luminous Efficiency | 70–80 lm/W |
| Beam Angle | Adjustable from 15° to 60° |
| Colour Temperature | 3000K / 4000K / 6000K |
| Colour Rendering | Ra>95 |
| IP Rating | IP44 |
| Material | Aluminium |
| Finish | Black / White |
Which Power Should You Choose?
- 12W: Suitable for small displays, niches, artwork and lower mounting positions.
- 24W: Suitable for retail shelves, medium display areas and general commercial accent lighting.
- 30W: Suitable for larger displays or projects requiring more light from a higher mounting position.
Final selection should consider mounting height, target size, surface reflectance and required illuminance. Send the layout if you need help comparing the three models.
Where Does Ra>95 Matter?

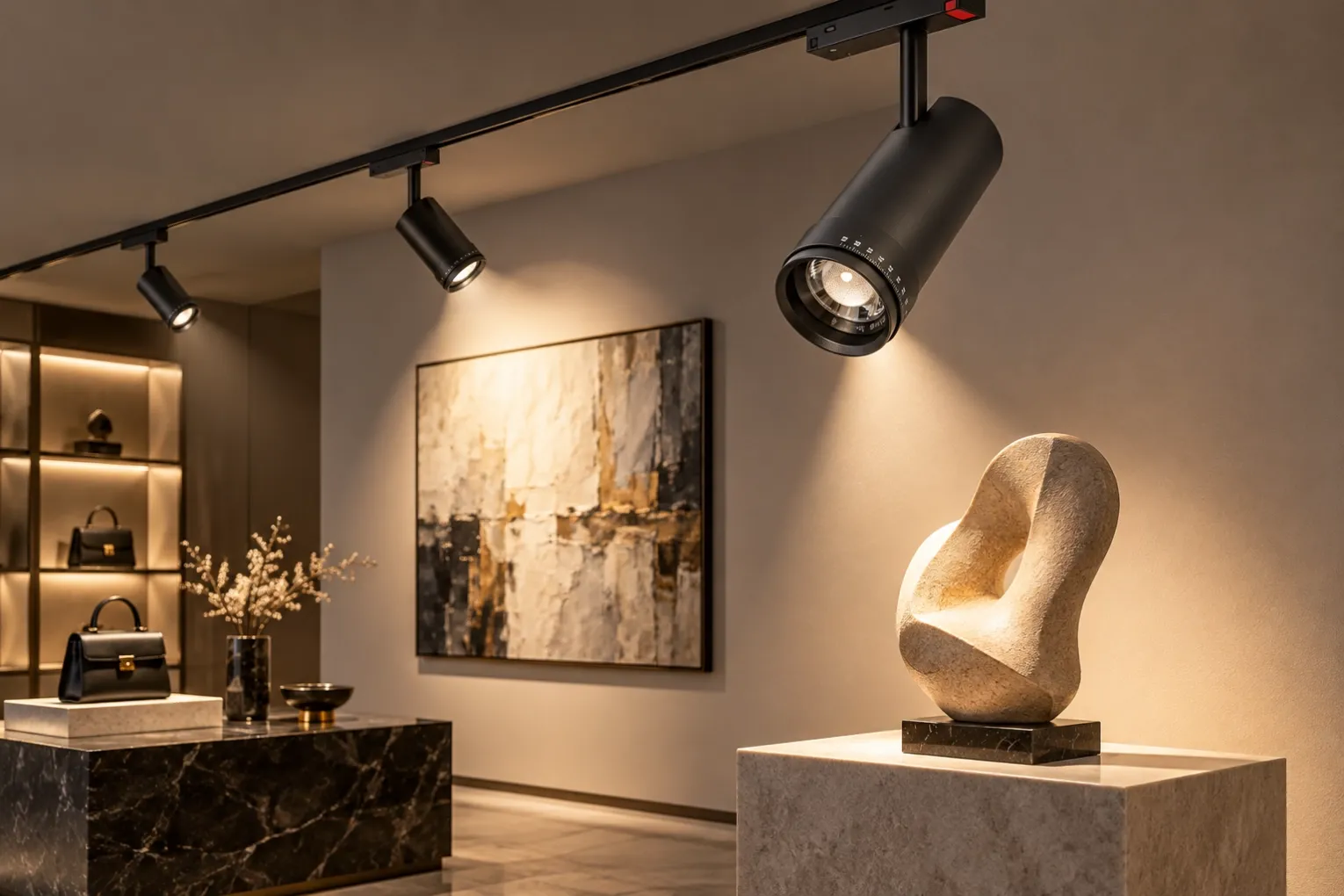

High colour rendering is useful when customers need to judge colour, texture or finish accurately. Typical applications include:
- Fashion and fabric displays
- Artwork and gallery lighting
- Furniture and material showrooms
- Cosmetics and product displays
- Hotel reception and feature areas
What Should Be Confirmed Before Ordering?
Will It Fit the Existing Magnetic Track?

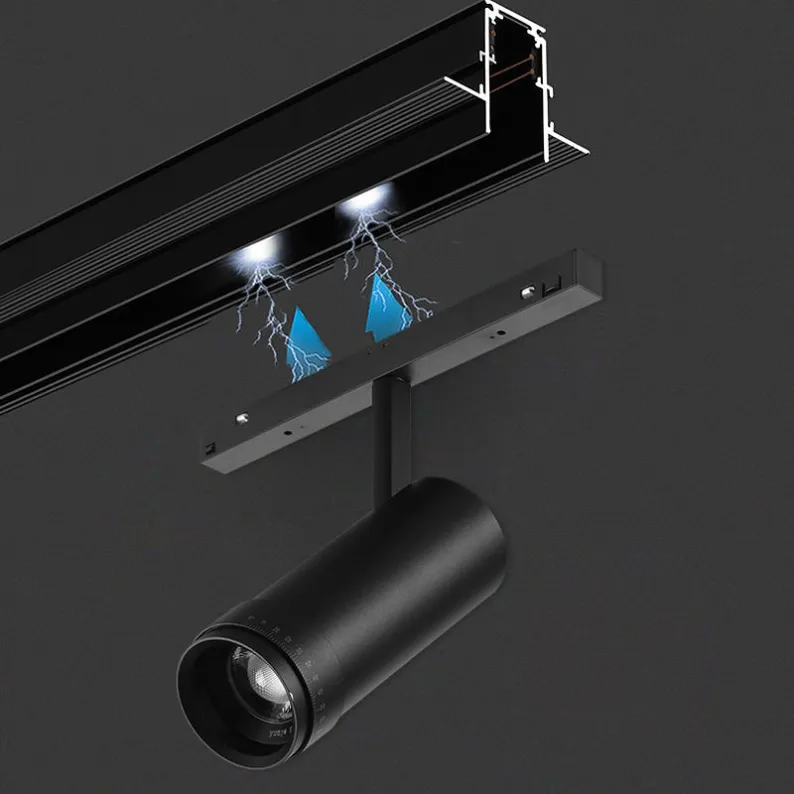

Magnetic track profiles, locking structures and electrical contacts can differ between suppliers. This fixture requires a compatible DC48V magnetic track system. Send the rail cross-section drawing, connector dimensions or clear track photos before ordering.
What Beam Angle Is Required?
Provide the mounting height and approximate target size. A narrow setting creates a smaller, more concentrated light area, while a wider setting covers a larger display.
Which CCT Should Be Selected?
Choose 3000K, 4000K or 6000K according to the interior materials, merchandise and required atmosphere. Confirm one CCT for the order to maintain consistency across the project.
Information Required for a Project Quote
- Required quantity and model
- Preferred CCT
- Black or white finish
- Magnetic track drawing or clear rail photos
- Mounting height and target dimensions
- Project location and required delivery date
Need help choosing 12W, 24W or 30W? Send the mounting height, target size, required quantity and track information. We can review the selection before preparing a sample or quotation.
Frequently Asked Questions
Does the 15°–60° range require different lenses?
The product information specifies an adjustable 15°–60° beam. Confirm the required beam adjustment method and sample configuration before bulk ordering.
Can the spotlight direction also be adjusted?
The mounted spotlight head can be aimed toward the required display area. Confirm the physical adjustment range with the product drawing or sample when the project has restricted ceiling space.
Can it fit any 48V magnetic track?
No. The same voltage does not guarantee mechanical or electrical compatibility. The track profile and contact position must also match.
Is this suitable for general ambient lighting?
It is mainly intended for accent and display lighting. General illumination may require additional wide-distribution fixtures depending on the room layout.
