Which Track Light Beam Angle Works Best for Retail Displays?

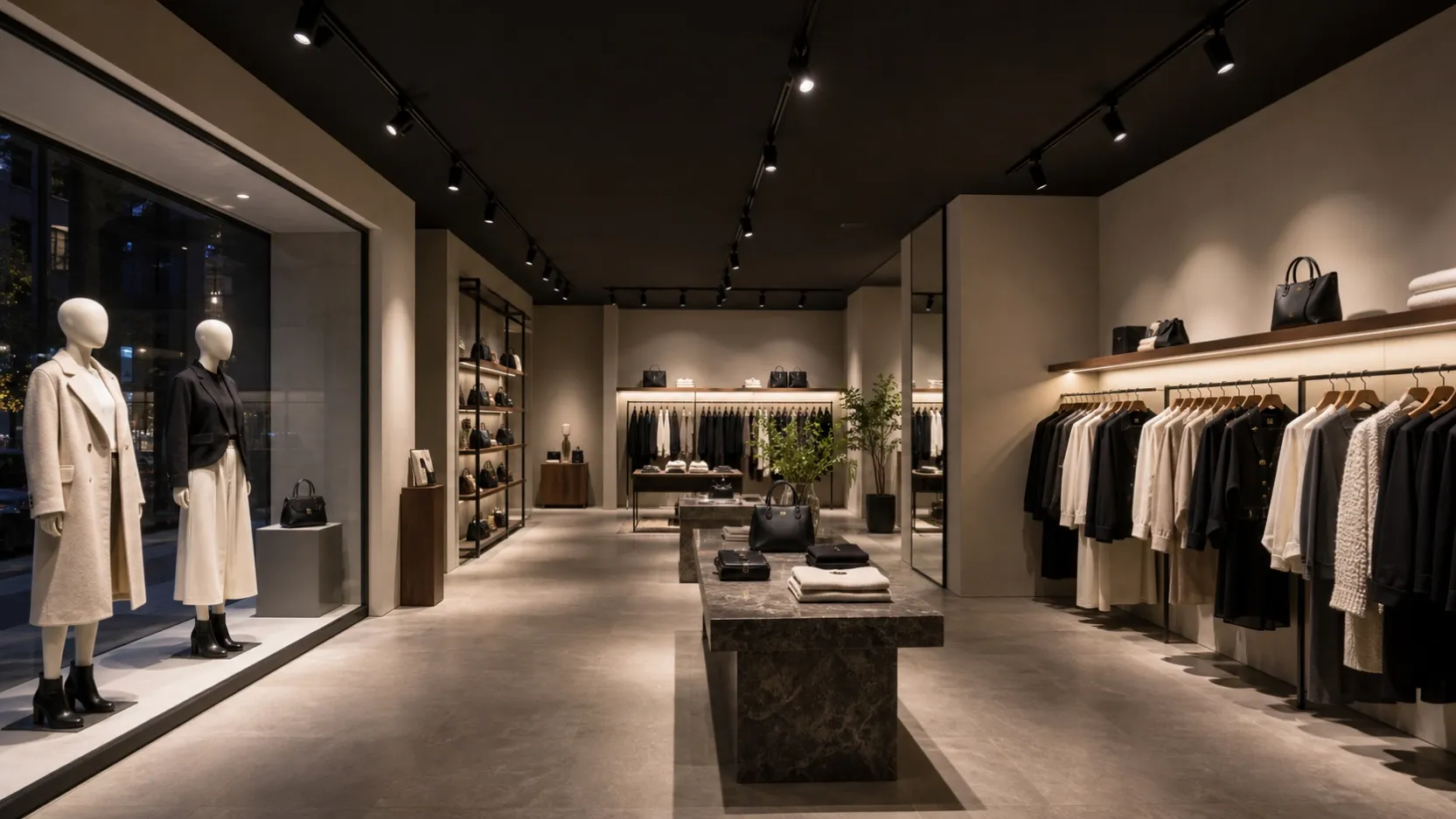

Use a 15°–24° track light beam for window displays and individual products, 24°–36° for mannequins and merchandise walls, and 36°–60° for aisles and wider displays. This gives retailers, designers and contractors a practical starting point. Final selection should also consider mounting height, display size, aiming distance and the required contrast.
Which Beam Angle Fits Each Retail Display?
What beam angle should be used for window displays?
A 15°–24° beam works well for mannequins, handbags and featured products. It concentrates light on the merchandise and separates it visually from the background.
Use 15° for a small product or a long aiming distance. Choose 24° when the light needs to cover most of a mannequin or a wider product group.
What beam angle is suitable for wall displays?
A 24°–36° beam is a flexible choice for clothing racks, shelves and merchandise walls. A 24° beam creates a stronger accent, while a 36° beam provides broader and more continuous coverage.
For example, a fashion store can use 24° beams for new collections and 36° beams for the surrounding garments.
What beam angle works for aisles and large display areas?
A 36°–60° beam is more suitable for aisles, promotional zones and low shelving. Wider beams reduce dark gaps and provide a comfortable lighting base across the store.
| Retail Area | Suggested Beam Angle | Lighting Purpose |
|---|---|---|
| Jewellery or small feature product | 10°–15° | Precise accent |
| Window display or mannequin | 15°–24° | Strong visual focus |
| Wall display or garment rack | 24°–36° | Balanced product coverage |
| Aisle or wide display zone | 36°–60° | Even general coverage |
How Does Mounting Height Affect Beam Selection?
Does a higher ceiling require a narrower beam?
Often, yes. The light spot becomes larger as the distance between the fixture and the display increases. A high-ceiling store may therefore need a narrower beam to maintain useful intensity on the merchandise.
However, beam angle should not be selected from ceiling height alone. The supplier should also check the track position, aiming angle and photometric data.
| Beam Angle | Approximate Coverage at 3 m |
|---|---|
| 15° | 0.79 m diameter |
| 24° | 1.28 m diameter |
| 36° | 1.95 m diameter |
| 60° | 3.46 m diameter |
These figures are preliminary estimates. The actual result depends on the optical design and light distribution of the selected track light.
Is Beam Angle the Only Specification That Matters?
What else should a retail buyer compare?
No. Beam angle controls where the light goes, but it does not fully describe the display effect. Buyers should also compare lumen output, peak intensity, color rendering, color consistency, color temperature and glare control.
- Check photometric files instead of comparing wattage alone.
- Select suitable color rendering for fabrics, food, cosmetics or artwork.
- Keep color temperature consistent across the same retail zone.
- Aim track lights away from the customer’s normal viewing direction.
Should a Store Use More Than One Beam Angle?
Why is a mixed-beam layout useful?
Most retail stores benefit from using several beam angles. Narrow beams attract attention to priority products, medium beams illuminate the main displays, and wider beams support aisles and circulation.
This creates a clear visual hierarchy without overlighting the entire store. Interchangeable reflectors or lenses can also make future display changes easier.
How Can You Confirm the Right Track Light Configuration?
Start with the display size, working distance and required visual focus. Then verify the choice using photometric data, a lighting calculation or a sample test.
To receive a project-specific recommendation, send us your store plan, ceiling height, track position, display dimensions and fixture schedule. You can also view our track light category and completed retail lighting applications before selecting a model.
Frequently Asked Questions
Is a 24° or 36° track light better for a clothing store?
Use 24° for mannequins and featured collections. Use 36° for garment racks and wider wall displays. Many stores combine both.
Can one track light illuminate a full mannequin?
It can when the beam covers the full figure from the selected mounting position. A wider mannequin display or shorter aiming distance may require two fixtures.
How many track lights are needed for a retail display?
The quantity depends on display dimensions, mounting distance, beam coverage and target illuminance. A store plan provides a more reliable basis than a fixed fixture-per-square-metre rule.
Are interchangeable beam angles useful for retail projects?
Yes. Replaceable reflectors or lenses allow the lighting to adapt when merchandise layouts change. Confirm optical compatibility with the selected track light before ordering.
