12W CCT IP65 Up & Down Wall Light, 100mm Cube - DB-LWL-A06AIP65-12WCCT
12W IP65 cube wall light with adjustable 3000–6000K CCT and 0–180° up/down beams. Aluminium housing in black or white for façades, hotels and villas.
12W CCT Adjustable IP65 Up and Down Wall Light
This 12W cube wall light combines adjustable 3000–6000K colour temperature with flexible up and down beams. Its compact IP65 aluminium housing is designed for façades, entrances, hotels, villas and commercial buildings.
Key Features
- Adjustable CCT: Select light colour from 3000K to 6000K to suit different project requirements.
- Up and Down Lighting: Two 6W LED modules provide balanced two-way illumination.

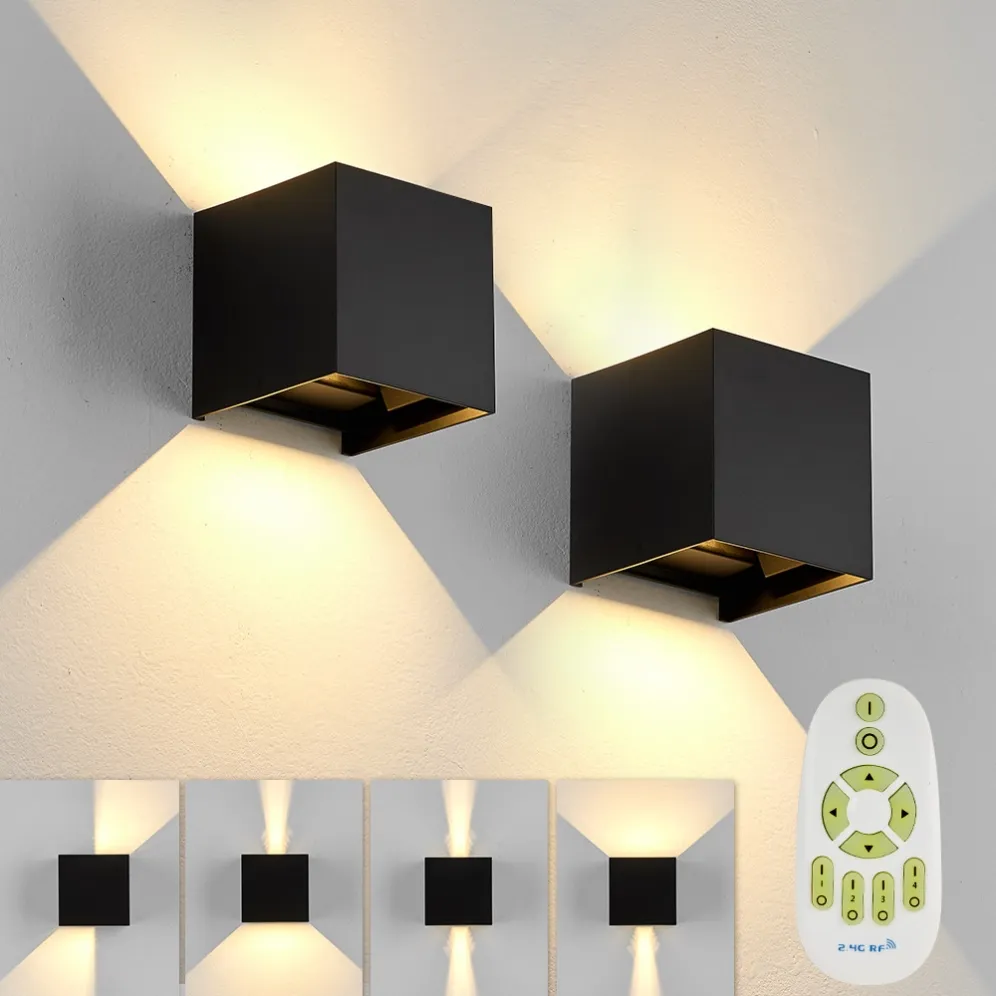

- Adjustable Beam: The 0–180° design creates narrow, wide or mixed light patterns.
- IP65 Protection: Protects the internal components against rain, water jets and dust.
- Compact Cube Design: The 100 × 100 × 100 mm housing suits modern architectural walls.
- Two Finishes: Available in matte black or white.
Specifications
| Model | DB-LWL-A06AIP65-12WCCT |
| Product Type | CCT adjustable up and down LED wall light |
| Total Power | 12W |
| LED Configuration | 2 × 6W |
| Input Voltage | AC 85–265V, 50/60Hz |
| Colour Temperature | Adjustable from 3000K to 6000K |
| Beam Adjustment | 0–180° |
| Luminous Efficacy | 70–80 lm/W |
| CRI | Ra >80 |
| Dimensions | 100 × 100 × 100 mm |
| IP Rating | IP65 |
| Material | High-grade aluminium alloy |
| Finishes | Matte black or white |
| Certifications | CE and RoHS |
| Warranty | 3 years |
Adjustable Light for Different Projects

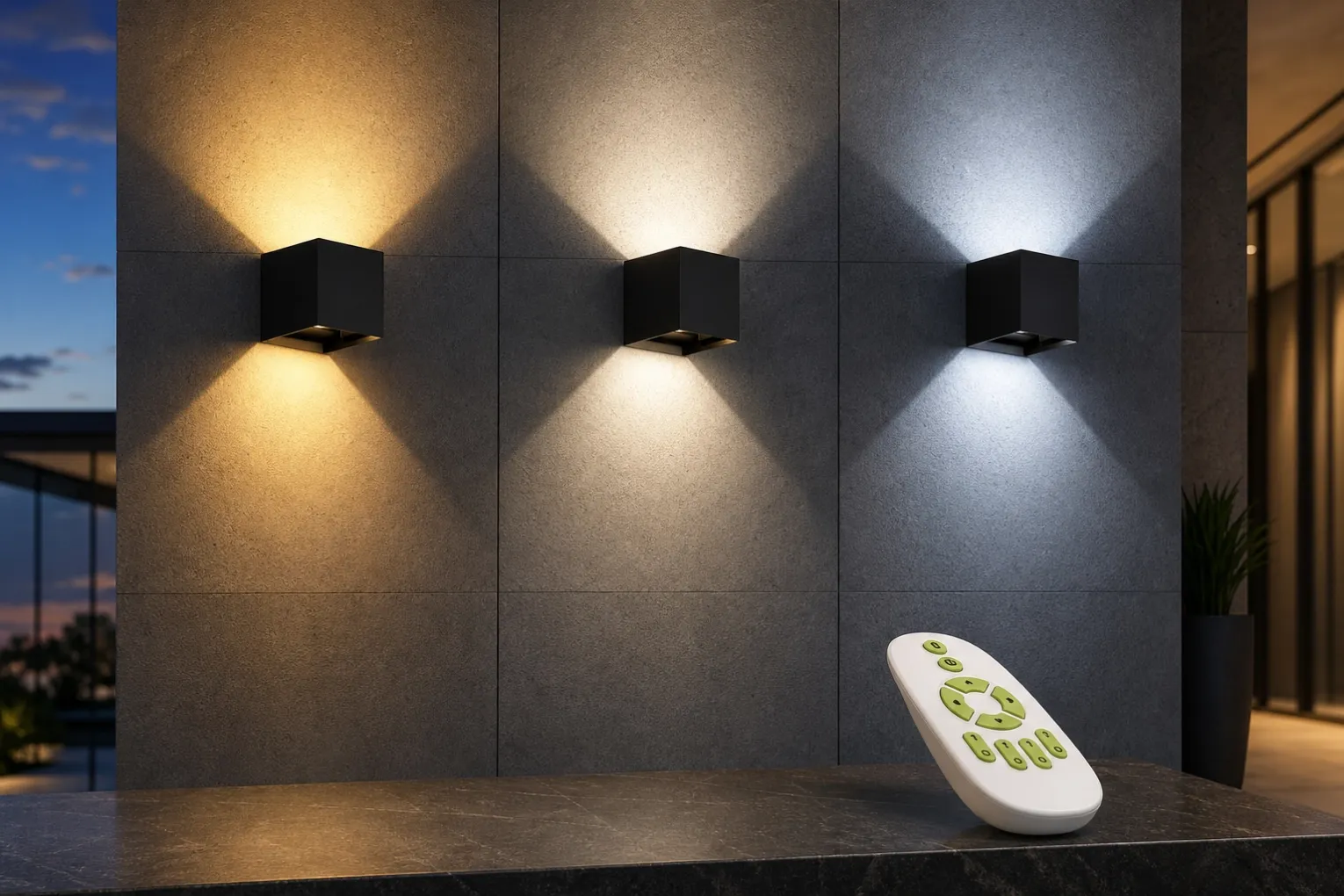

The 3000–6000K CCT range allows one model to cover warm, neutral and cool-white lighting requirements. The adjustable upper and lower openings provide different beam widths for façades, columns and feature walls.
Outdoor Housing
The high-grade aluminium housing provides strength and supports heat dissipation. Its IP65 construction delivers reliable performance for indoor and outdoor wall installations.
Applications
- Hotel and resort façades
- Villa entrances and terraces
- Apartment corridors
- Restaurants and cafés
- Retail and commercial entrances
- Columns and feature walls
OEM and ODM Support
DAYBREAK supports wholesalers, contractors and project buyers. Custom options include housing finish, CCT control, product label and packaging. Project samples and specification matching are available.
Request a Quote
Send us your required quantity, housing colour, installation location and target market. Contact DAYBREAK for the datasheet, sample, Dialux support or project quotation.
