6W Multi-Beam IP65 Up & Down LED Wall Light for Facades – DB-LWL-A07A
Compact 6W IP65 wall light with decorative multi-beam uplighting and a broad downward beam. CRI>80 aluminium housing in black or white.
Decorative Multi-Beam Wall Light

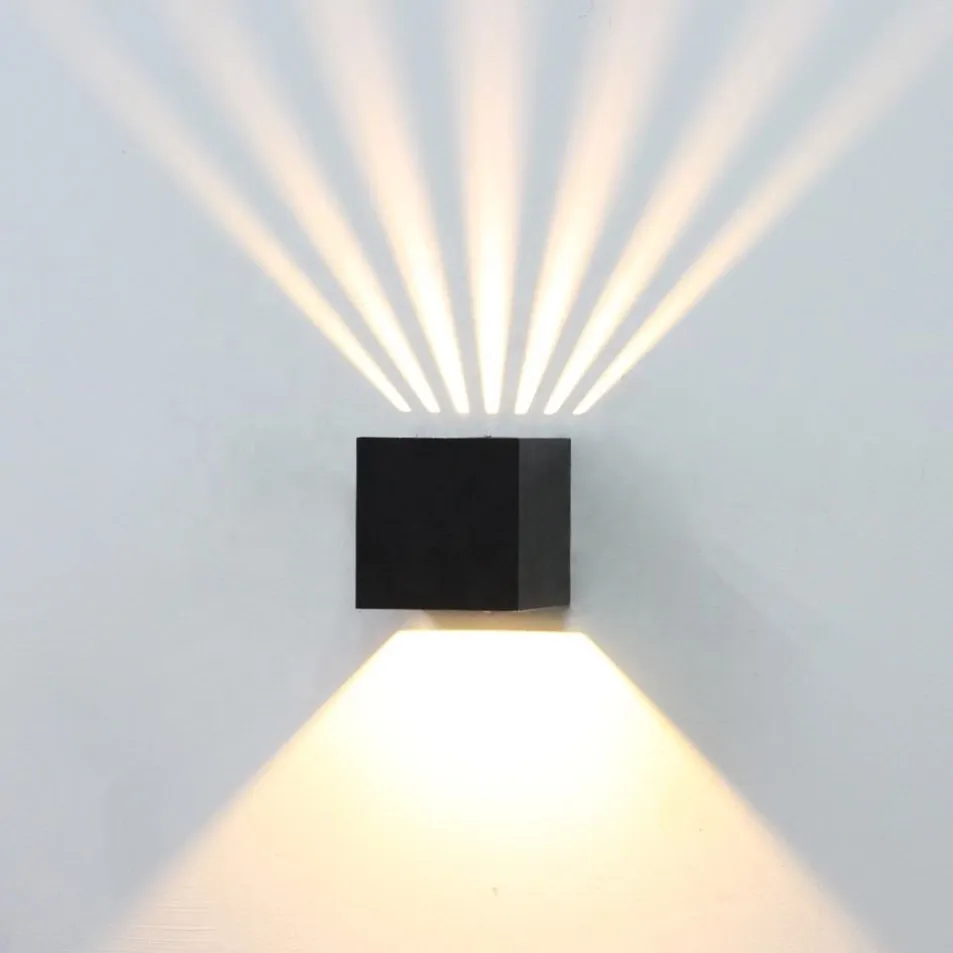

The DB-LWL-A07A combines decorative upper light rays with practical downward illumination. Its compact 100mm square body creates a distinctive facade pattern without taking up excessive wall space.
Key Features
- Two-part optical design: A 5W upper section creates multiple narrow rays while a 1W lower section provides a broad downward beam.
- Distinctive facade effect: Adds visual rhythm to repeated wall installations.
- Compact dimensions: The 100 × 100mm face suits corridors, columns and narrow exterior walls.
- IP65 protection: Suitable for indoor and outdoor applications.
- Black or white finish: Matches modern residential and commercial architecture.
Technical Specifications
| Model | DB-LWL-A07AIP65-6W |
| Power | 6W (5W upper light + 1W lower light) |
| Input Voltage | AC85–265V, 50/60Hz |
| Light Distribution | Multi-beam uplight with broad downlight |
| Luminous Efficiency | 50–60 lm/W |
| CRI | Ra>80 |
| Color Temperature | Warm White / Neutral White / White |
| IP Rating | IP65 |
| Dimensions | 100 × 100 × 60 mm |
| Material | High-grade aluminium alloy |
| Finish | Matte Black / White |
| Installation | Surface-mounted wall installation |
| Certification | CE, RoHS |
| Warranty | 3 years |
Optical Design

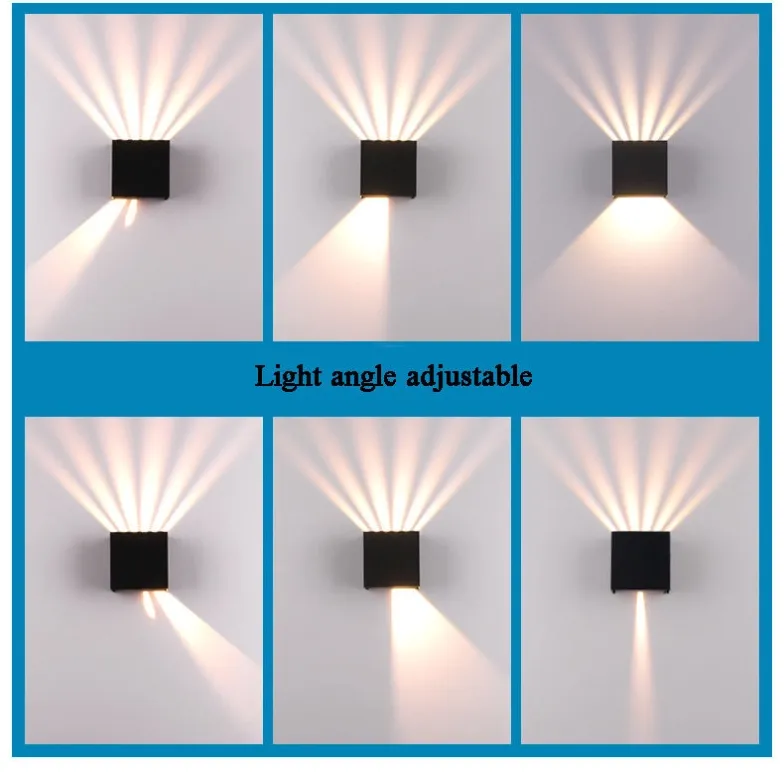

The upper optical section divides the light into narrow decorative rays, while the lower section spreads light across the wall and nearby walking surface. This combination provides both a recognizable facade effect and useful low-level illumination.
Applications
Recommended for villa walkways, hotel corridors, apartment entrances, garden walls, restaurants, balconies and commercial facades.
OEM/ODM Support
Color temperature, finish, driver, labeling and packaging can be prepared for project and wholesale orders. Datasheets and dimensional drawings are available on request.
Request Project Information
Need a sample, datasheet or project quotation? Send us the required quantity, color temperature, finish and project location.
