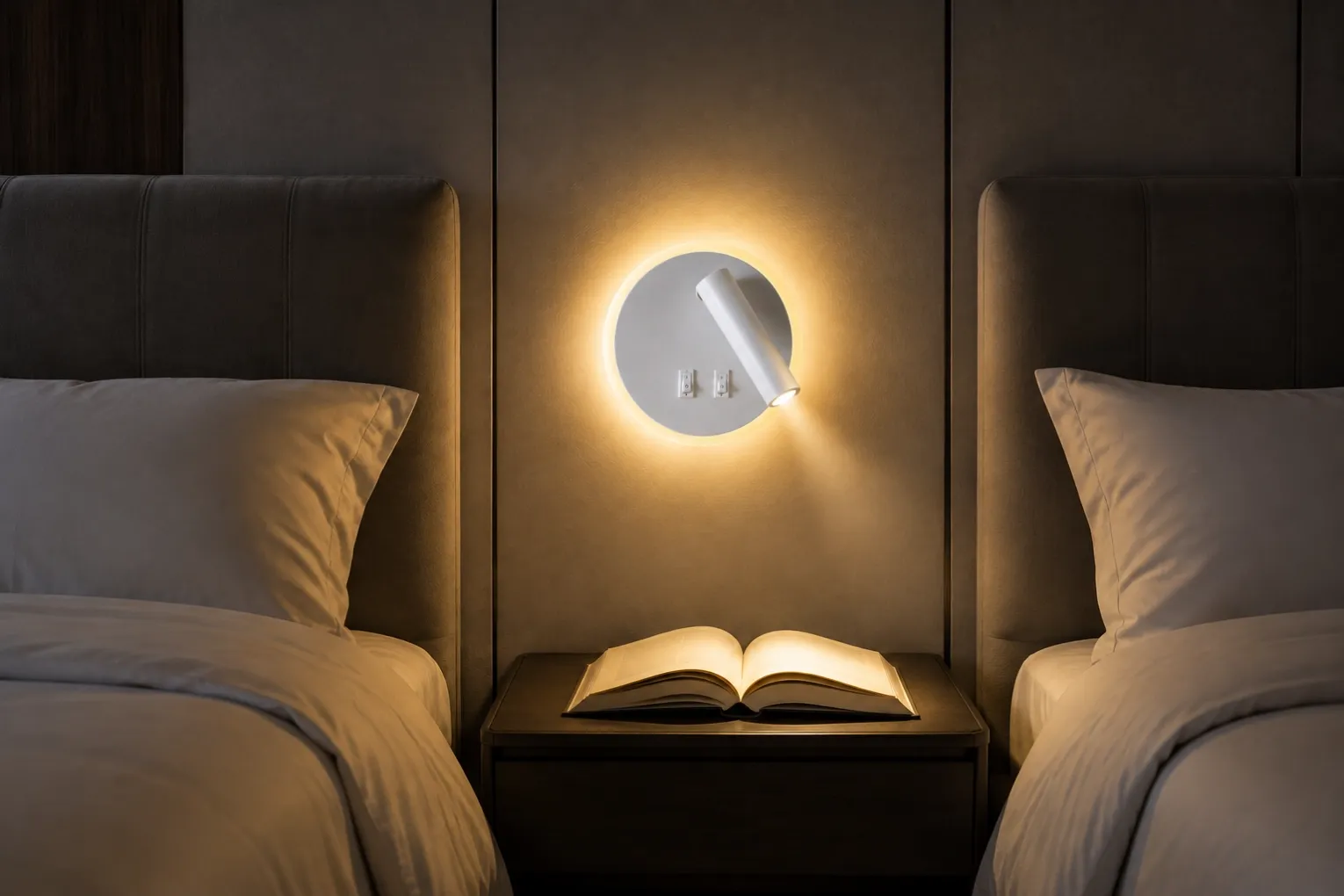

Round Bedside Light for Hotel Guest Rooms
The DB-LWL-A08A-R12W combines soft ambient lighting and focused bedside reading in one compact fitting. The 8W backlight and 4W rotatable spotlight operate independently, giving guests simple control without taking up bedside table space.
Key Features
- Two Lights in One: 8W circular ambient backlight plus a 4W reading spotlight.
- Focused Reading: The rotatable spot directs light towards a book or working area.
- Independent Control: Two switches allow separate operation of the ambient and reading lights.
- Compact Installation: Ø145mm round body suits narrow headboards and small guest rooms.
- Project-Ready: CE and RoHS certified with a 3-year warranty.
Technical Specifications
| Model | DB-LWL-A08A-R12W |
|---|
| Total Power | 12W (4W reading spot + 8W ambient light) |
|---|
| Input Voltage | AC85–265V, 50/60Hz |
|---|
| Light Distribution | 360° ambient backlight with directional reading spot |
|---|
| Luminous Efficiency | 70–80 lm/W |
|---|
| CRI | Ra >80 |
|---|
| CCT Options | Warm White / Neutral White / White |
|---|
| Dimensions | Ø145 × 50mm |
|---|
| IP Rating | IP44 |
|---|
| Material | High-grade aluminium alloy |
|---|
| Finish | White / Black |
|---|
| Control | Two independent on/off switches |
|---|
| Installation | Surface-mounted |
|---|
| Certifications | CE and RoHS |
|---|
| Warranty | 3 years |
|---|
Recommended Applications
Suitable for hotel rooms, serviced apartments, student accommodation, hospital rooms, cruise cabins and residential bedrooms.
OEM and Project Support
CCT, finish, switch position, product label and packaging can be prepared for hospitality projects and wholesale orders. Send your headboard elevation or drawing, quantity, required CCT, finish, switch position and destination for technical review, model confirmation, a sample proposal or project pricing.
Round Bedside-Light Questions Before Ordering
What installation space is required on the headboard?
Allow for the Ø145 × 50 mm fixture body, the electrical point and clear access to both switches. Check the panel position against the bed, bedside table and other controls on the room elevation.
Can the ambient backlight and reading spotlight operate separately?
Yes. Two independent switches control the 8W ambient backlight and 4W rotatable reading spotlight separately.
How should the reading-light direction be planned?
Review the guest’s reading position, mounting height and side of the bed before fixing the electrical point. Record any left- and right-side configuration requirements during sample approval.
Where is the IP44 fixture intended to be installed?
It is intended for normal indoor bedside applications. Confirm moisture exposure, room zone and local installation requirements before specifying it near bathrooms or other exposed areas.
What information should hotel buyers send for project pricing?
Send the headboard elevation, room quantity, CCT, finish, switch position, preferred reading-light direction, destination market and delivery timing. A room schedule helps us review the configuration before quotation.
Round Hotel Bedside-Light Questions Before Ordering
How are the ambient and reading lights controlled?
The listed configuration combines an 8W ambient backlight and a 4W rotatable reading spot with two independent switches, allowing each light function to be operated separately.
What should be shown on the headboard drawing?
Mark the fixture centre, electrical point, switch position, bed width and finished headboard thickness. This helps confirm the installation position before production.
Which details should be approved with a sample?
Confirm the finish, colour temperature, reading-light direction, switch operation and visual relationship with the headboard before approving the room standard.
How can installation remain consistent across hotel rooms?
Use the approved headboard drawing and sample-room position as the installation reference for repeated rooms. Record the mounting height and left/right orientation where applicable.
What should buyers send for technical review and pricing?
Send the headboard drawing, room quantity, required finish, colour temperature, switch position and delivery schedule so DAYBREAK can review the configuration and prepare a quotation.
