3W/5W 100mm Compact Up & Down LED Wall Light, IP44 – DB-LWL-A04A
Compact 100mm up-and-down wall light in 3W or 5W. IP44 aluminium housing, CRI>80 and multiple white or colored light options for interior projects.
Compact Up and Down Wall Light for Decorative Projects

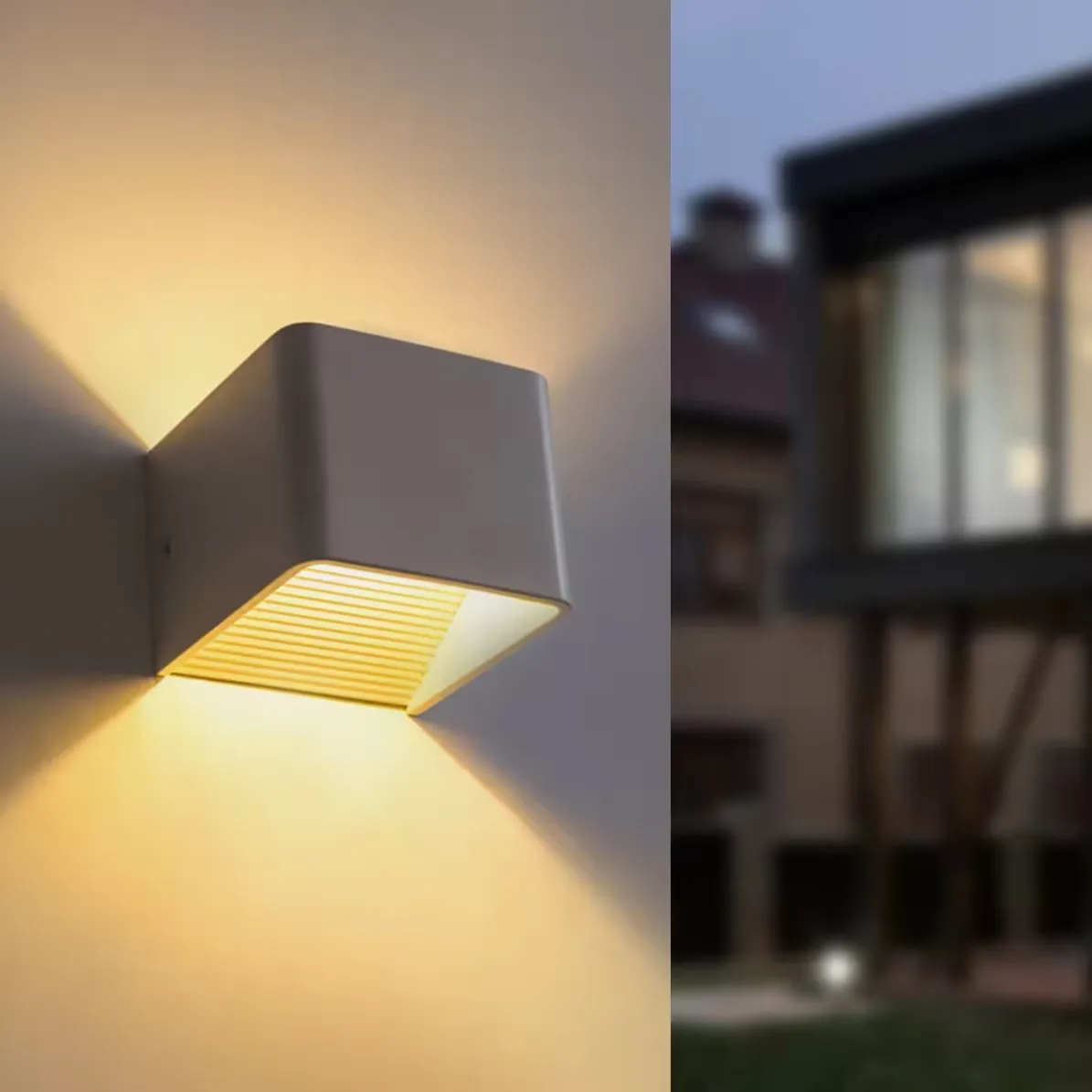

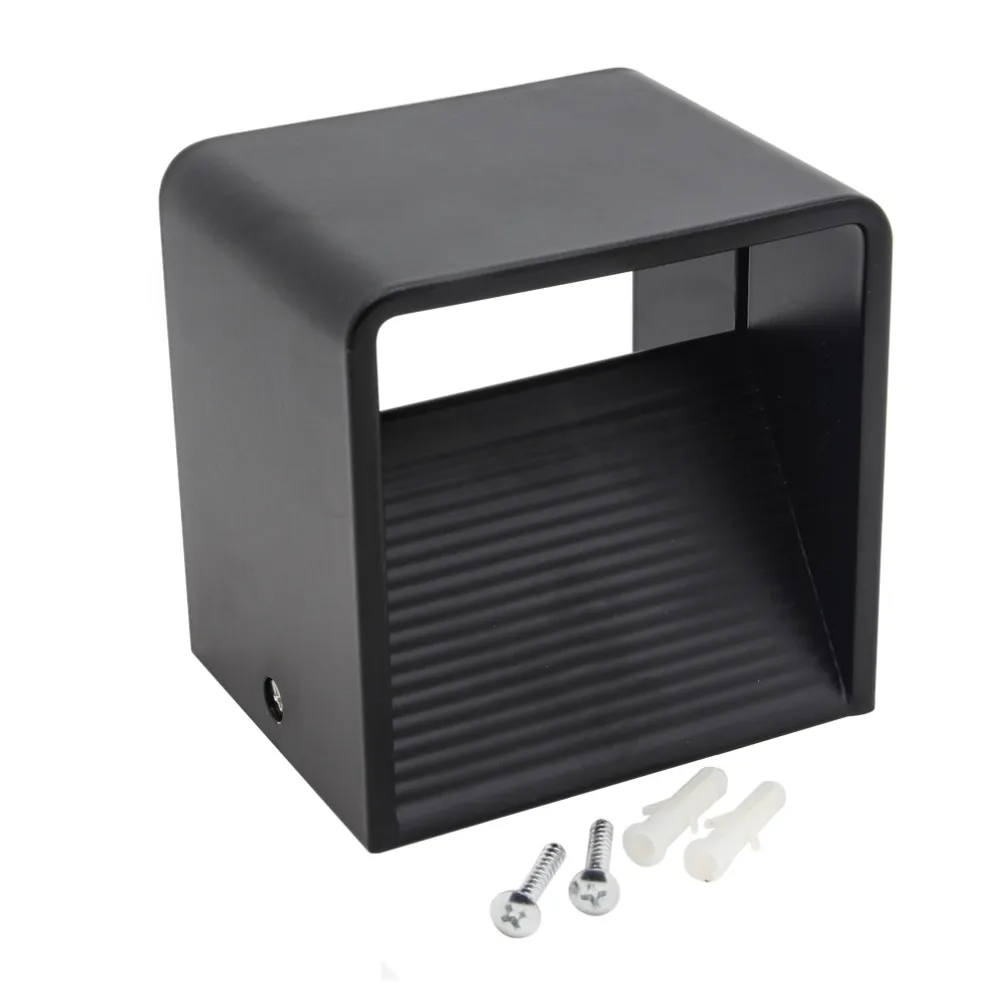

The DB-LWL-A04A is a compact 100mm wall light available in 3W and 5W versions. Its recessed upper and lower openings create controlled wall illumination while keeping the light sources away from direct view.
Key Features
- 3W and 5W options: Select the output required for decorative or functional wall lighting.
- Compact 100mm body: Fits corridors, columns and smaller wall areas.
- Up and down illumination: Adds depth and visual rhythm to architectural surfaces.
- White and colored light options: Suitable for standard projects and decorative environments.
- Aluminium housing: Supports heat dissipation and a clean architectural finish.
Technical Specifications
| Models | DB-LWL-A04A-3W / DB-LWL-A04A-5W |
| Power | 3W / 5W |
| Input Voltage | AC85–265V, 50/60Hz |
| Light Distribution | Up and down |
| Luminous Efficiency | 70–80 lm/W |
| CRI | Ra>80 |
| Color Options | Warm White / White / Red / Green / Blue / Yellow / Purple |
| IP Rating | IP44 |
| Dimensions | 100 × 100 × 80 mm |
| Material | High-grade aluminium alloy |
| Finish | Matte Black / White |
| Installation | Surface-mounted wall installation |
| Certification | CE, RoHS |
| Warranty | 3 years |
Optical and Housing Design
The recessed optical openings help shield the LEDs from direct view. Upward light highlights the wall surface, while downward light improves visual guidance near corridors and walkways.
Which Power Should You Choose?
| 3W | Decorative accents, narrower walls and shorter spacing |
| 5W | Stronger wall illumination, wider spacing and commercial applications |
Applications
Recommended for hotel corridors, restaurants, clubs, residential interiors, villa entrances, stair landings, balconies and decorative feature walls. Use IP44 fixtures in suitable sheltered locations.
OEM/ODM Support
Power, light color, color temperature, finish, driver, labeling and packaging can be prepared for project, wholesale and private-label orders.
Request a Sample or Quotation
Send us your required quantity, power, light color, finish and installation location. We can provide a datasheet, sample proposal and project quotation.
