5W–12W 24° Deep Recessed Pinhole COB Downlight for Hotels – DB-DL6A
Deep-recessed COB downlight with a small aperture and a focused 24° beam. Four wattages and 45–75mm cut-outs for hotels, retail displays, and accent lighting.
Small Aperture, Controlled Accent Light

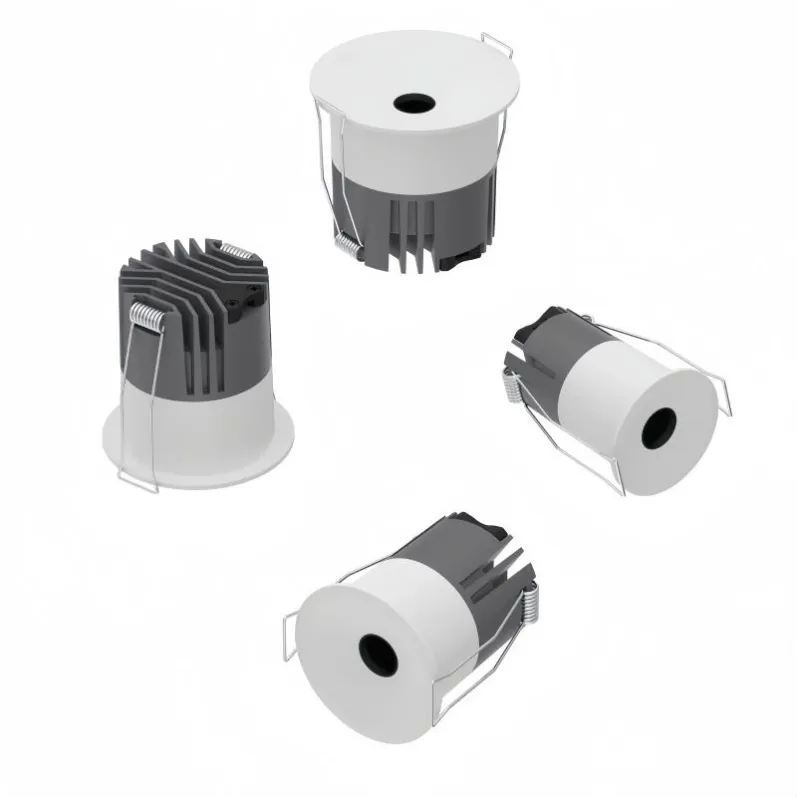

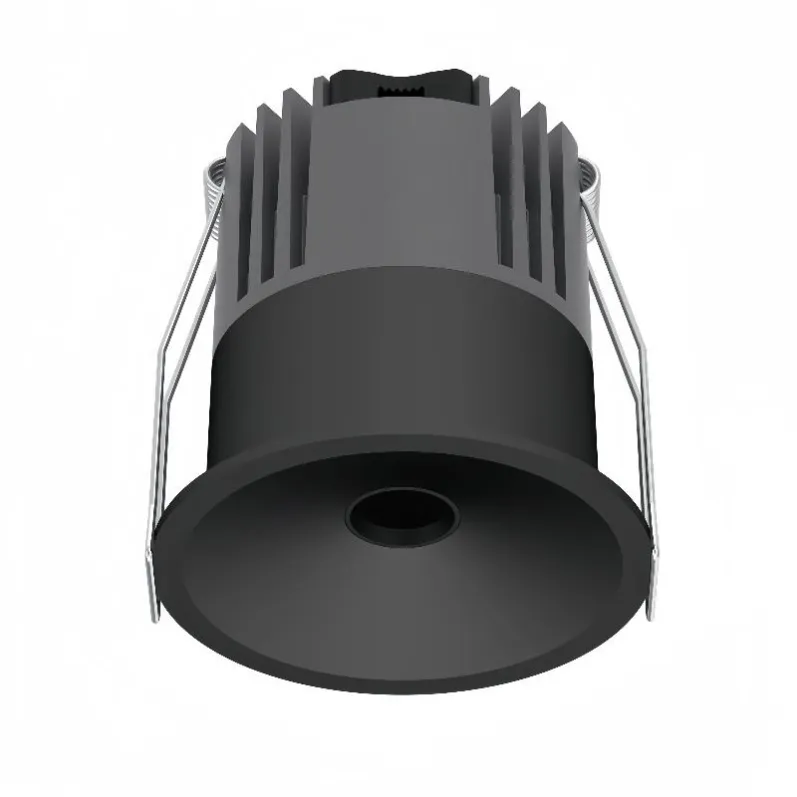

The DB-DL6A Series uses a deep-recessed COB light source and a small black aperture to keep the ceiling appearance clean. Its 24° beam concentrates light on artwork, displays, tables and other selected areas instead of spreading light across the entire room.
Key Project Benefits
- 24° Narrow Beam: Creates controlled accent lighting for displays and architectural details.
- Deep Pinhole Design: Shields the light source from normal viewing angles and reduces direct glare.
- Four Sizes: 5W, 7W, 9W and 12W options cover different ceiling heights and lighting requirements.
- Compact Cut-Outs: Ceiling openings range from 45mm to 75mm for a discreet ceiling layout.

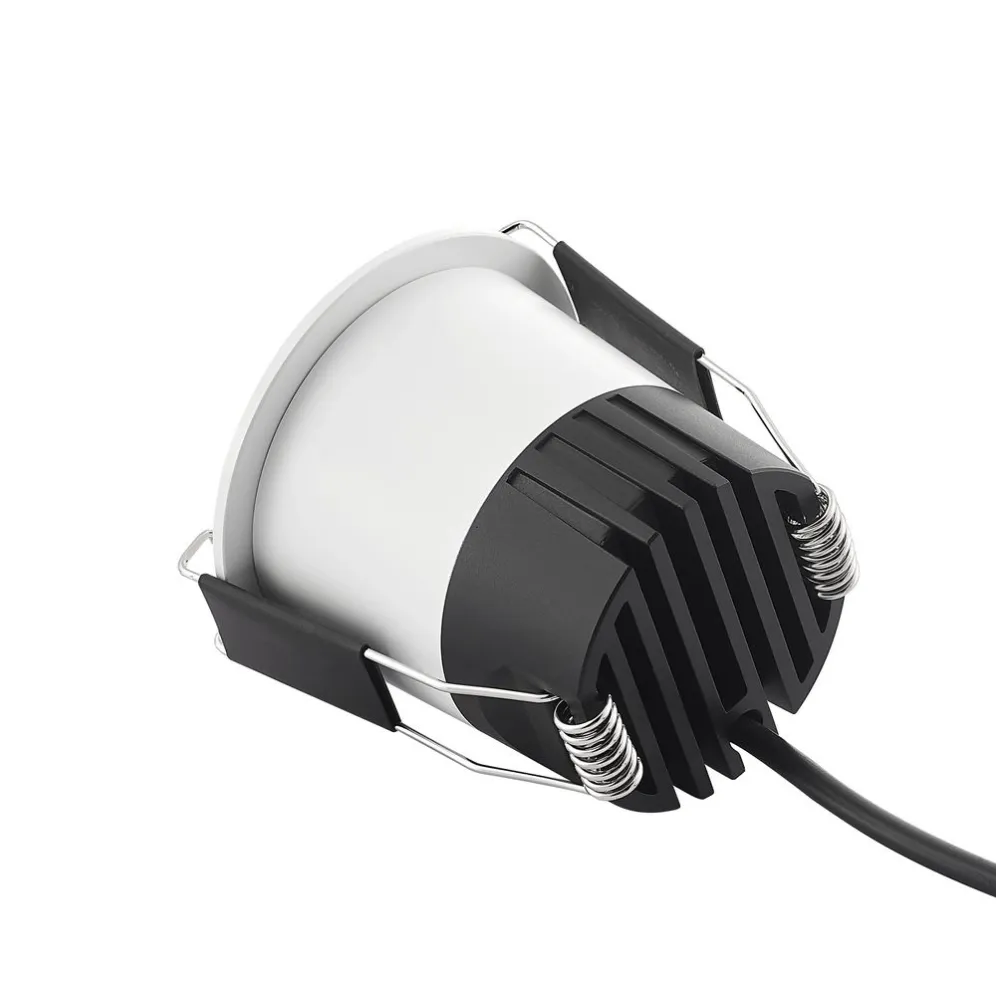

- Aluminium Heat Sink: Finned construction supports heat dissipation around the COB module.
Technical Specifications
| Specification | 5W | 7W | 9W | 12W |
|---|---|---|---|---|
| Model | DB-DL6A-51mm-5W | DB-DL6A-62mm-7W | DB-DL6A-72mm-9W | DB-DL6A-82mm-12W |
| Power | 5W COB | 7W COB | 9W COB | 12W COB |
| Fixture Size | Ø51 × H70mm | Ø62 × H70mm | Ø72 × H70mm | Ø82 × H70mm |
| Ceiling Cut-Out | Ø45mm | Ø55mm | Ø65mm | Ø75mm |
| Beam Angle | 24° | |||
| Input Voltage | AC85–265V | |||
| Luminous Efficiency | 70–80 lm/W | |||
| CCT | 3000K / 4000K / 6000K | |||
| Material | Aluminium | |||
| Finish | White / Black | |||
| Installation | Recessed ceiling installation | |||
| Certifications | CE and RoHS | |||
| Warranty | 3 years | |||
How to Select the Wattage
Use 5W or 7W for low ceilings, cabinets and small displays. Choose 9W for hotel corridors, dining tables and medium-sized retail displays. Use 12W where a stronger accent is required or the mounting height is greater. Confirm the ceiling cut-out before ordering.
Applications

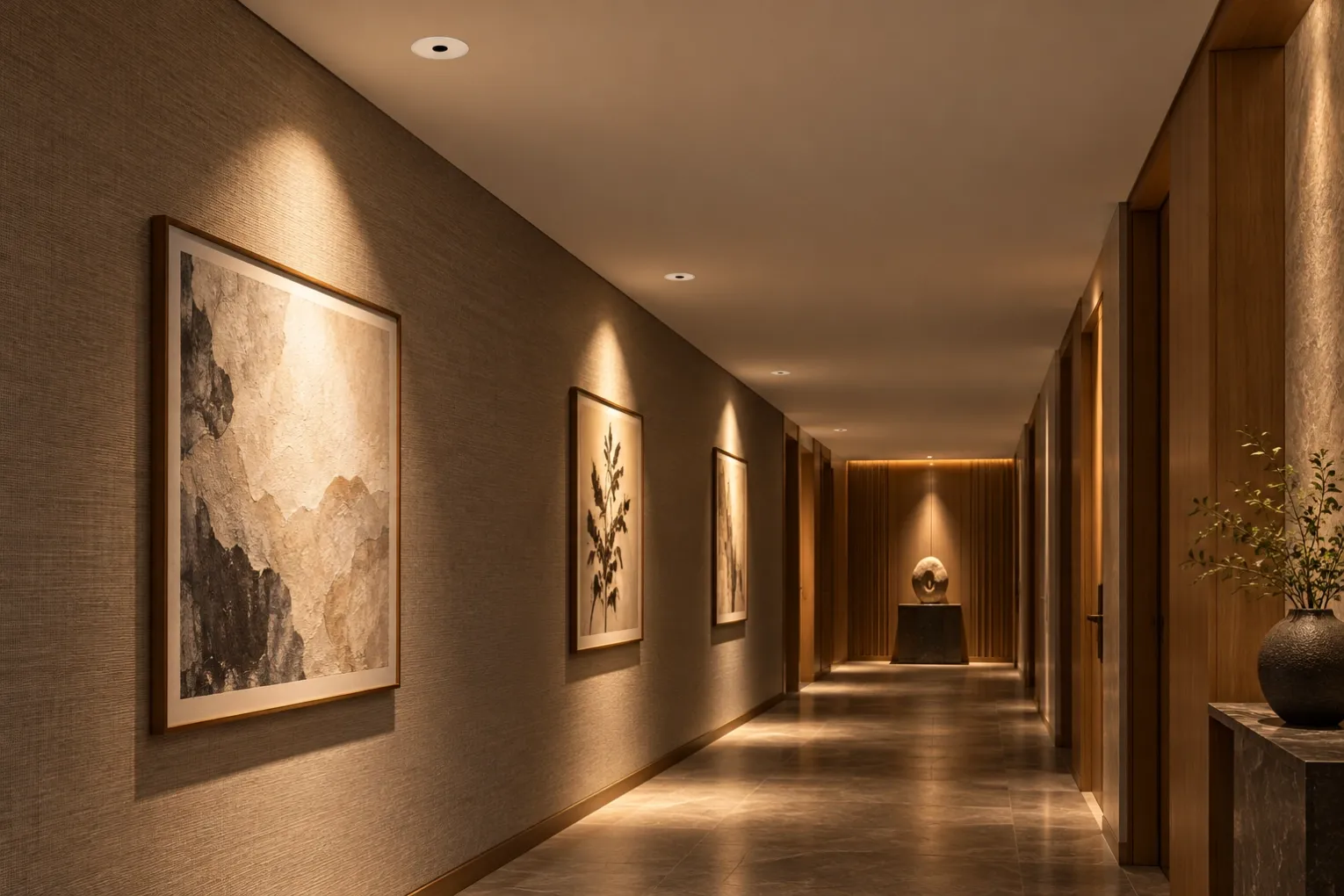

Suitable for hotels, galleries, retail stores, restaurants, showrooms and residential interiors. The 24° beam is intended for accent lighting; wider general lighting may require additional ambient fixtures.
Project and OEM Support
CCT, black or white finish, product labels and packaging can be prepared for project and wholesale orders. Send us the wattage, quantity, CCT, finish and destination to request a datasheet, sample or quotation.
