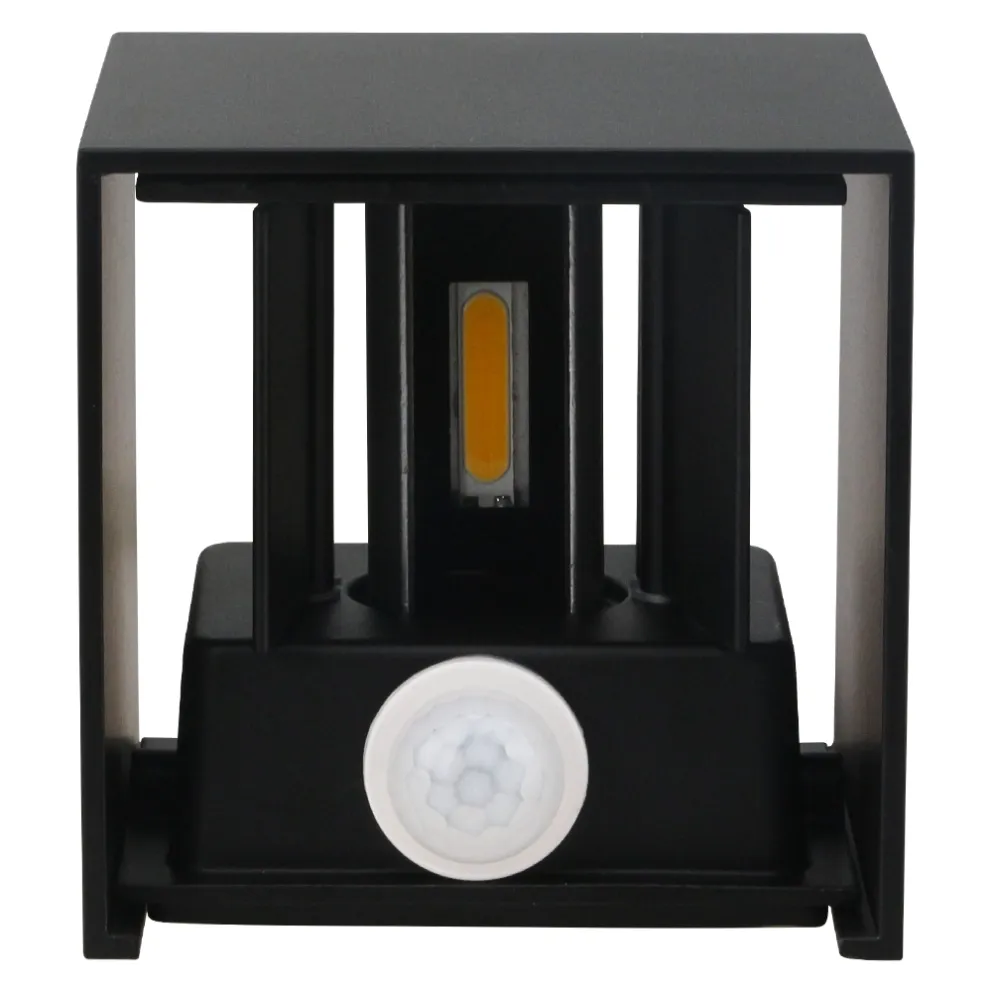

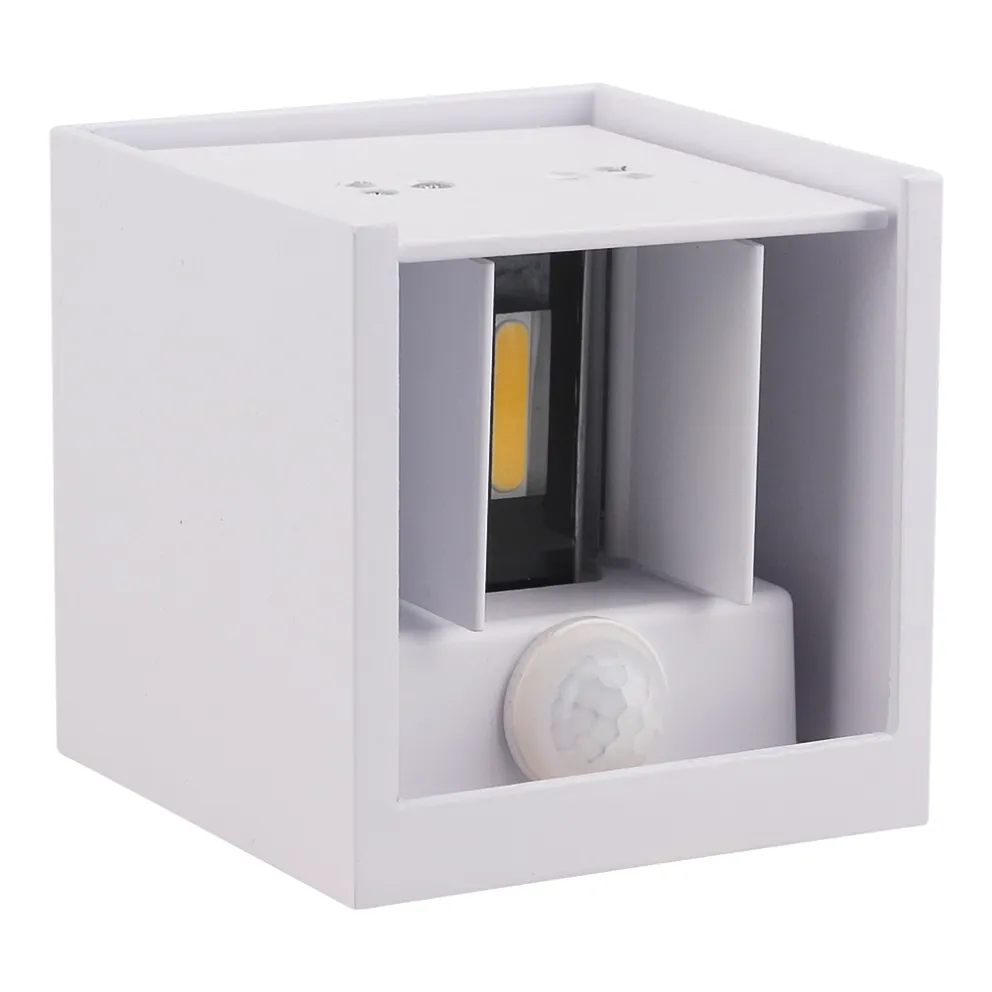

6W/12W IP65 PIR Sensor Adjustable Up & Down LED Wall Light – DB-LWL-A06A
6W/12W IP65 LED wall light with PIR motion sensing and independently adjustable 0–180° up/down beams. Send your wall elevation, quantity, finish and preferred light effect for model confirmation and project pricing.
Light That Responds When People Approach
This compact wall light combines automatic PIR sensing with adjustable up and down illumination. It switches on when movement is detected, providing practical lighting and a clean architectural effect around entrances, corridors and exterior walls.
Why Buyers Choose It
- Built-in PIR Sensor: Activates the light when movement is detected.

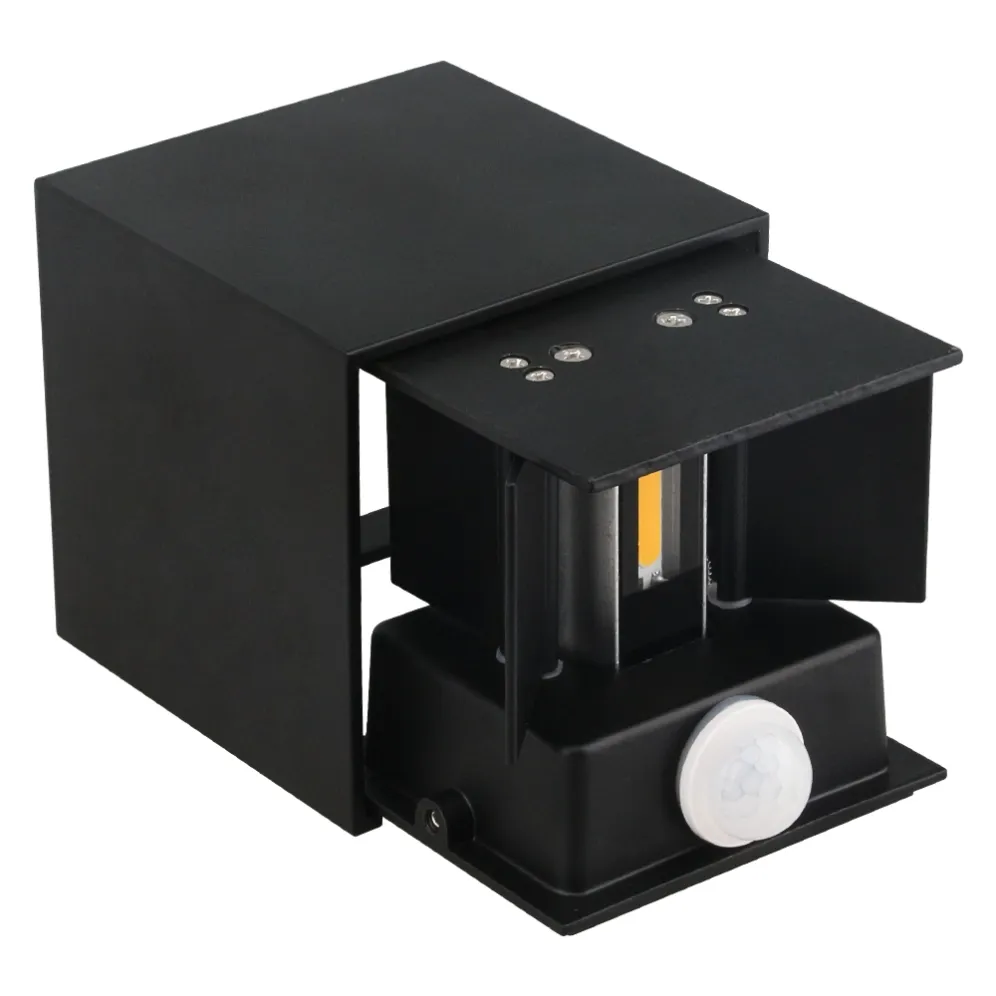

- Adjustable Beams: Set the upper and lower light openings from 0–180°.
- 6W or 12W: Choose the output required without changing the fixture size.
- IP65 Protection: Suitable for correctly installed indoor and outdoor projects.
- Compact Cube: The 100 mm housing fits modern residential and commercial walls.
Specifications
| Specification | 6W Version | 12W Version |
|---|---|---|
| Model | DB-LWL-A06AIP65-S6WA | DB-LWL-A06AIP65-S12WA |
| Power | 2 × 3W | 2 × 6W |
| Luminous Efficacy | 50–60 lm/W | 70–80 lm/W |
| Input | AC 85–265V, 50/60Hz | |
| Sensor | PIR motion sensor | |
| Beam Adjustment | 0–180° | |
| CRI | Ra >80 | |
| Size | 100 × 100 × 100 mm | |
| CCT | Warm white / Neutral white / White | |
| Finish | Matte black / White | |
| Material | High-grade aluminium alloy | |
| IP Rating | IP65 | |
| Certification | CE / RoHS | |
| Warranty | 3 years | |
Where It Works
Ideal for villa entrances, hotel corridors, apartment doorways, balconies, passageways and commercial exterior walls.
Choose the Right Power
Choose 6W for decorative guidance lighting and smaller mounting areas. Choose 12W when the project requires stronger wall illumination from the same compact housing.
Request Project Pricing
Send your wall elevation or project drawing, required power, quantity, finish, CCT, installation location and preferred up/down beam effect. DAYBREAK can confirm the suitable model and provide technical files, a sample proposal or project pricing.
