6W–24W 48V Magnetic Linear Track Light, 24° Beam – DB-TL20-LM02
48V magnetic linear track light available in 6W, 12W, 18W and 24W. Features a 24° beam, four lengths and recessed optical cells for retail, hotel and display lighting.
Specifications
- Power
- 6W 12W 18W 24W
- CCT
- 3000K / 4000K / 6000K
- Input Voltage
- DC48V
Focused Lighting for a Clean Magnetic Track Layout

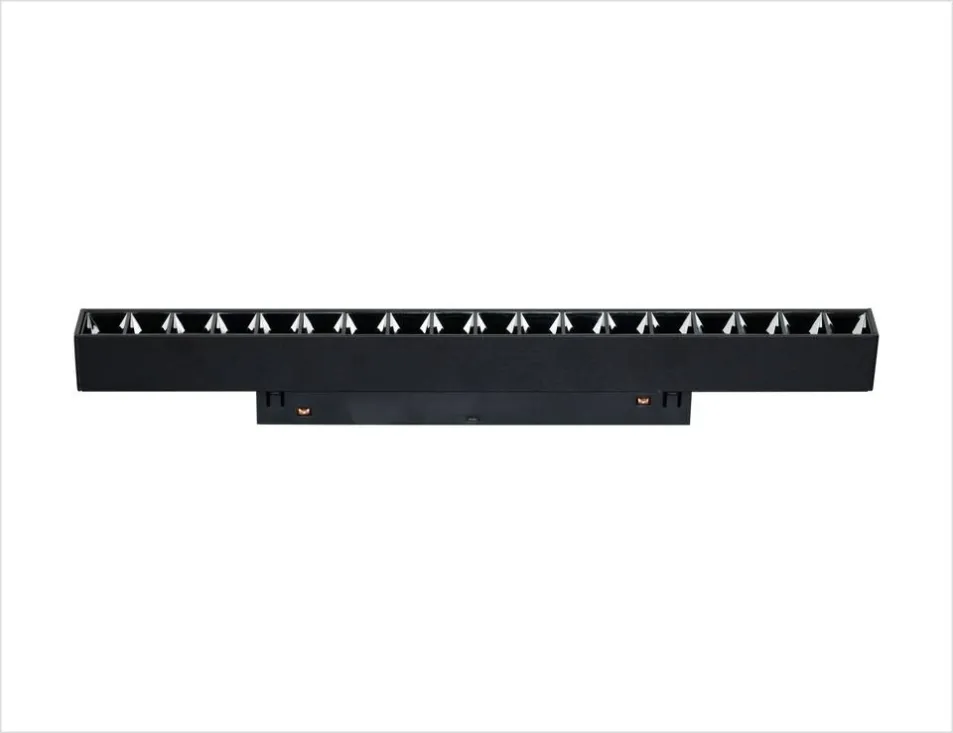

The DB-TL20-LM02 is a slim 48V magnetic linear track light designed for retail displays, showrooms, hotels and interior feature lighting. Its 24° beam concentrates the light on selected areas, while four power and length options help maintain a consistent appearance across the project.
Why Choose This Linear Track Light?
- Four power options: Select 6W, 12W, 18W or 24W according to the display size and required lighting level.
- Focused 24° beam: Suitable for highlighting shelves, merchandise, artwork and architectural details.
- Compact profile: All models are 22 mm wide and 25 mm high for a neat track installation.
- Three CCT options: Available in 3000K, 4000K and 6000K.
- Black aluminium housing: Matches modern commercial interiors and helps manage heat from the LED module.

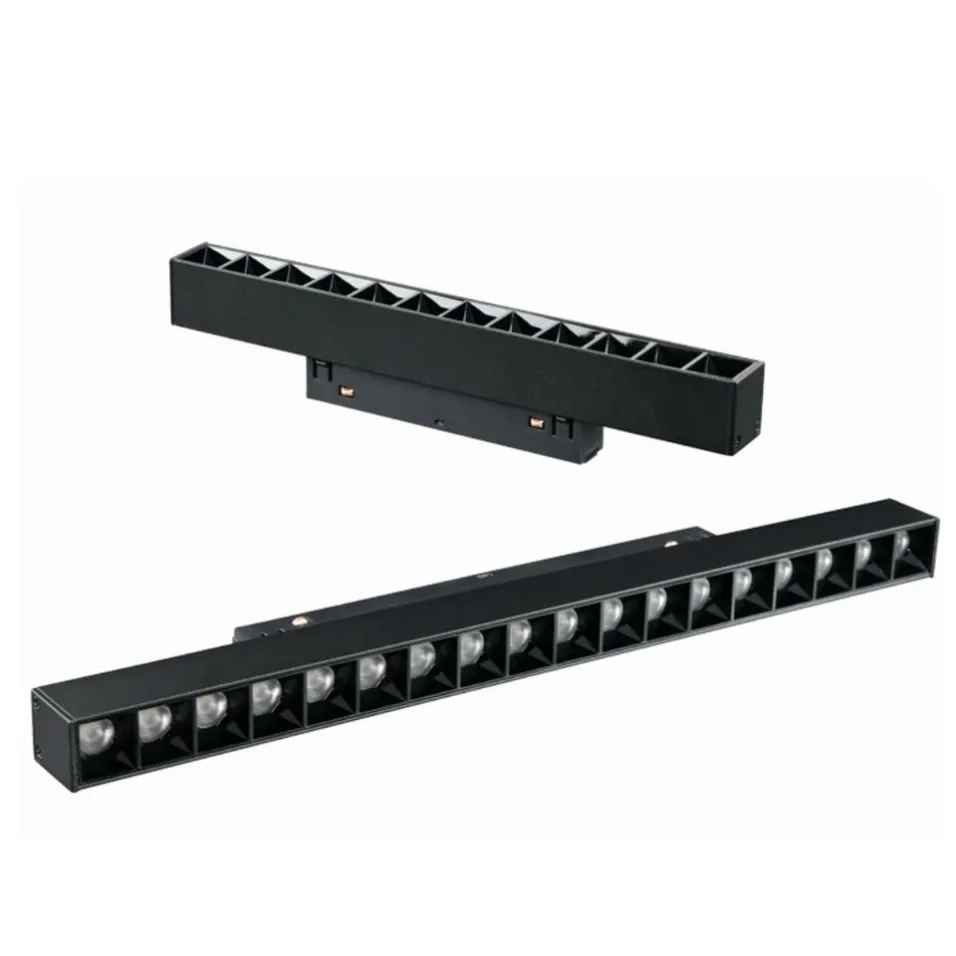

Model Selection
| Model | Power | Dimensions | Beam Angle |
|---|---|---|---|
| DB-TL20-LM02-6W | 6W | 115 × 22 × 25 mm | 24° |
| DB-TL20-LM02-12W | 12W | 223 × 22 × 25 mm | 24° |
| DB-TL20-LM02-18W | 18W | 331 × 22 × 25 mm | 24° |
| DB-TL20-LM02-24W | 24W | 439 × 22 × 25 mm | 24° |
Technical Specifications
| Product Type | Magnetic linear track light |
|---|---|
| Input Voltage | DC48V |
| Power Options | 6W / 12W / 18W / 24W |
| Luminous Efficiency | 70–80 lm/W |
| Beam Angle | 24° |
| Colour Temperature | 3000K / 4000K / 6000K |
| Colour Rendering | Ra>80 |
| IP Rating | IP44 |
| Material | Aluminium |
| Finish | Black |
Which Power Should You Use?
Choose the model according to the illuminated area, mounting height and required visual brightness. The four models share the same width and height, allowing different lengths to be used while keeping a consistent lighting design.
- 6W: Small displays, niches and short accent sections
- 12W: Shelves, cabinets and compact retail displays
- 18W: Medium display walls and merchandise areas
- 24W: Longer display sections and larger feature areas
Final quantities and spacing should be checked against the mounting height, surface colour and target illuminance.
Check Track Compatibility Before Ordering
Magnetic track dimensions and electrical connectors are not always interchangeable between suppliers. This luminaire requires a compatible DC48V magnetic track system. Before placing an order, send us the track section drawing, connector dimensions or a clear photo of the existing track.
This check helps avoid three common project problems:
- The fixture cannot lock securely into the track.
- The electrical contacts do not align with the rail conductors.
- The existing driver or power supply does not match the fixture load.

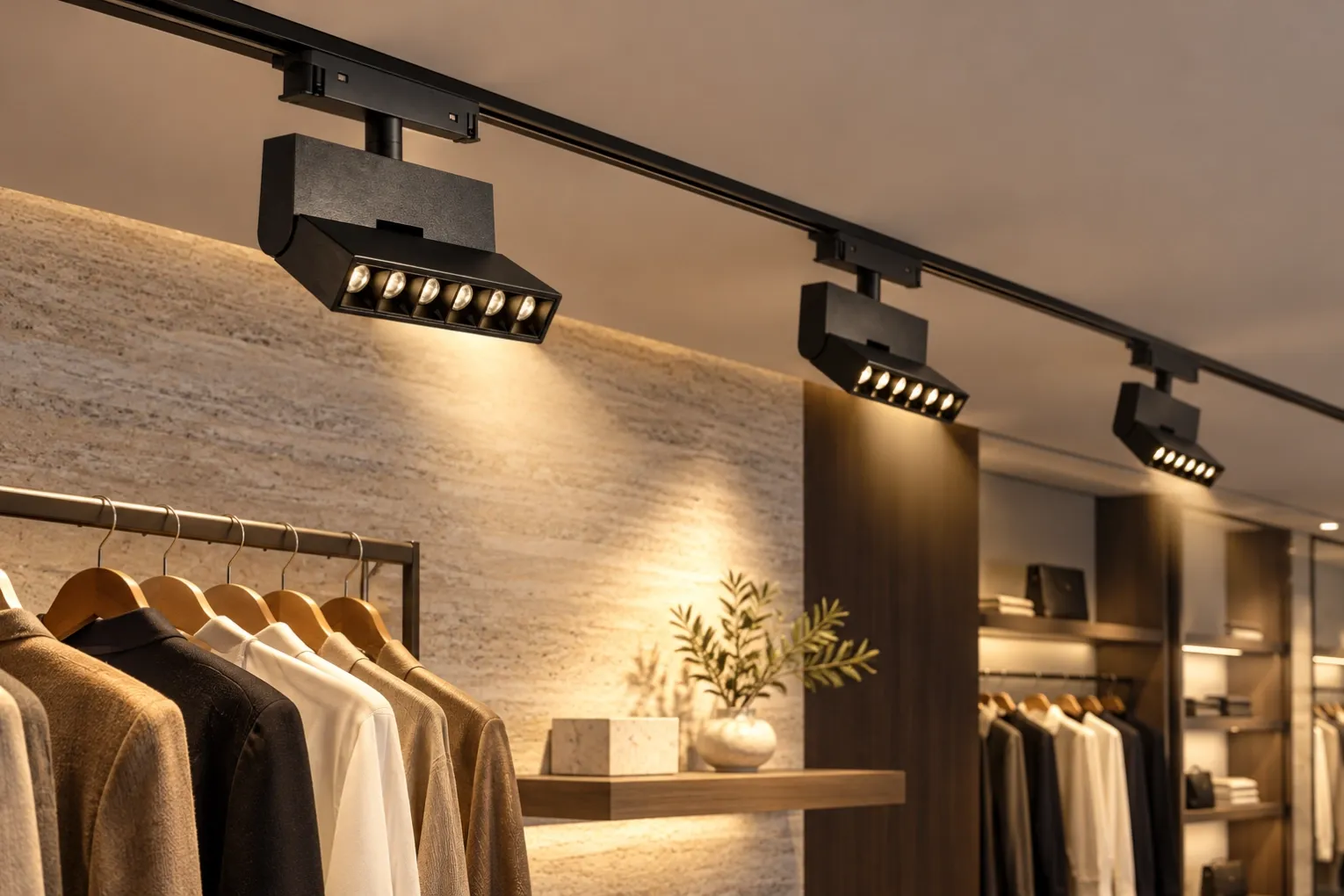

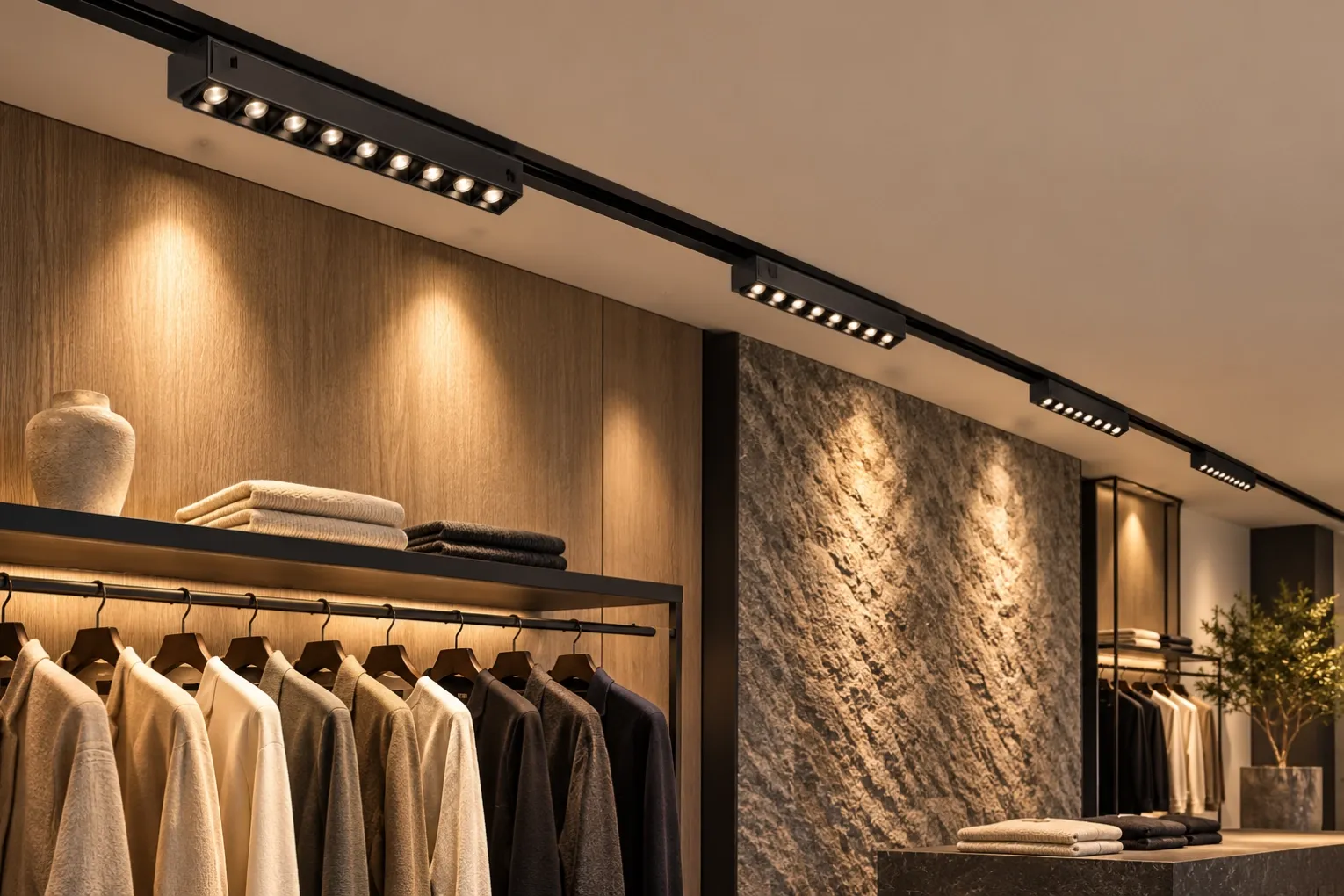

Application Areas
- Retail shops and clothing displays
- Showrooms and product display walls
- Hotels and reception areas
- Galleries and exhibition spaces
- Residential feature lighting
Information Required for a Project Quote
For faster model selection and quotation, please provide:
- Required quantity and power
- Preferred CCT: 3000K, 4000K or 6000K

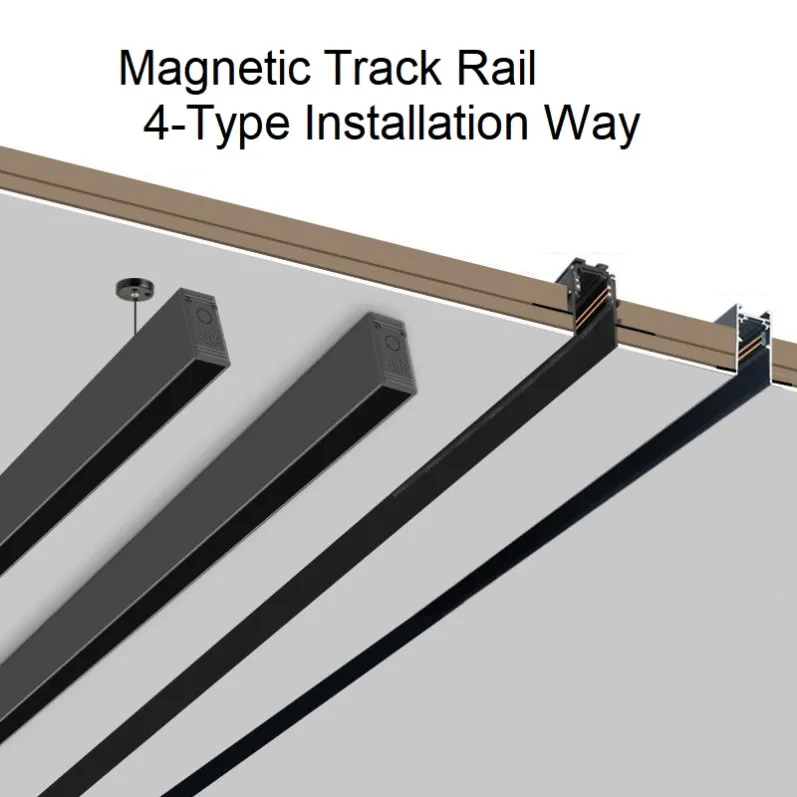

- Track installation type and rail dimensions
- Mounting height or project drawing
- Project location and required delivery date
Need to confirm compatibility? Send us your magnetic track drawing or a clear rail photo. We can check the fixture dimensions before preparing the sample or quotation.
Frequently Asked Questions
Can this light fit any magnetic track rail?
No. Magnetic rails may use different profiles, locking structures and electrical contacts. Confirm the rail dimensions and DC48V system before ordering.
Can different wattages be used in the same project?
Yes, subject to track compatibility and the capacity of the DC48V power supply. The four models share the same 22 mm width and 25 mm height.
Which colour temperature is suitable for retail lighting?
3000K creates a warmer atmosphere, 4000K provides a more neutral appearance, and 6000K produces cooler light. Selection should follow the merchandise, interior materials and project lighting plan.
How should I select the number of fixtures?
The quantity depends on mounting height, track position, illuminated area and required lux level. Send the layout and target lighting requirement for model selection.
