6W IP65 Up and Down LED Wall Light for Outdoor Façades, 160 × 68 × 60 mm — DB-LWL-A05CIP65-6W
Compact 6W wall light with symmetrical up and down beams. IP65 high-grade aluminium housing, multiple light colours, CE and RoHS certified. Suitable for façades, entrances and corridors.
Specifications
- Power
- 6W
- Shell
- Black
6W IP65 Up and Down LED Wall Light for Architectural Façades
This compact 6W LED wall light delivers symmetrical upward and downward illumination for façades, entrances, columns and exterior corridors. Its IP65 aluminium alloy housing is suitable for indoor and outdoor architectural projects requiring a decorative wall-lighting effect.
Key Features
- Up and Down Lighting: Two 3W LED modules create a balanced double-beam pattern on the wall.
- IP65 Protection: Helps protect the internal components against dust and water jets when correctly installed.
- Compact Housing: The 160 × 68 × 60 mm body fits narrow walls, columns and limited installation spaces.
- Aluminium Alloy Construction: Provides a rigid structure and supports LED heat dissipation.
- Multiple Light Colours: Available in warm white, white, yellow, blue, red and green.
Technical Specifications
| Model | DB-LWL-A05CIP65-6W |
| Product Type | Up and down LED wall light |
| Total Power | 6W |
| LED Configuration | 2 × 3W |
| Input Voltage | AC 85–265V, 50/60Hz |
| Light Distribution | Upward and downward |
| Luminous Efficacy | 80–90 lm/W |
| Colour Rendering Index | CRI >80 |

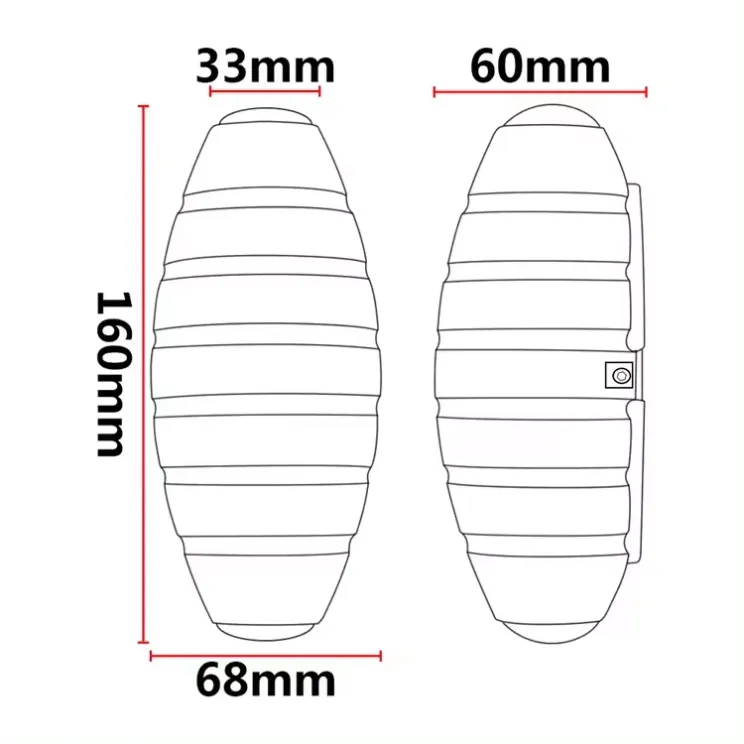

| Dimensions | 160 × 68 × 60 mm |
| IP Rating | IP65 |
| Housing Material | Aluminium alloy |
| Housing Colour | Black |
| Light Colour Options | Warm white, white, yellow, blue, red or green |
Waterproof and Housing Design
The IP65 enclosure helps protect the luminaire against dust and water jets. When correctly installed and sealed, the wall light can be used on exterior façades, entrances, balconies and covered outdoor corridors.
The aluminium alloy body provides structural strength and supports heat dissipation from the integrated LED modules. For coastal, high-humidity or chemically exposed projects, please provide the installation conditions so that the required surface treatment can be evaluated.

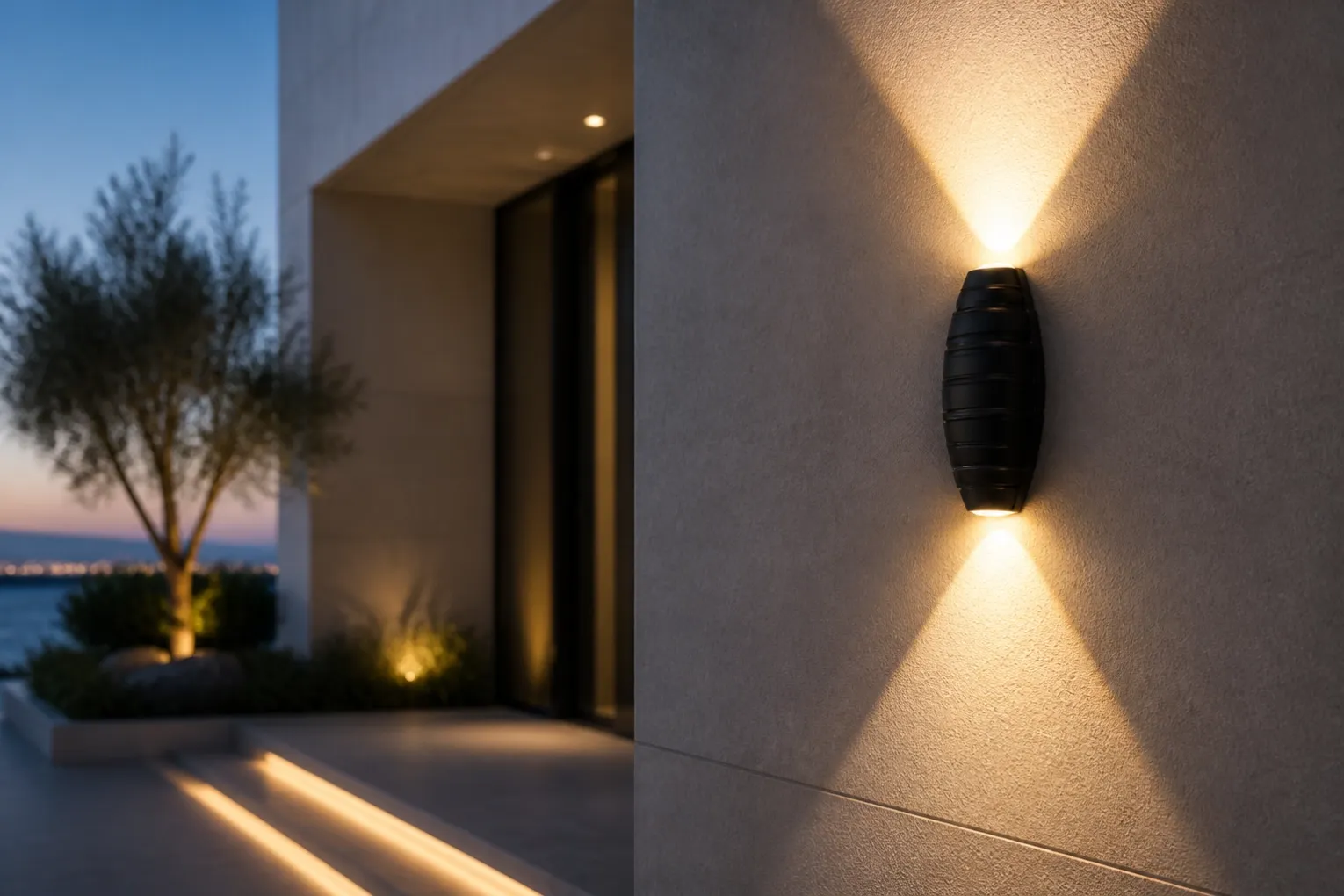

Up and Down Optical Effect
The two-way optical design projects light above and below the fixture, creating a clear decorative pattern on the mounting surface. It can highlight wall textures, columns and architectural details without using a high-power general lighting fixture.
Recommended Applications
- Villa and apartment façades
- Hotel entrances and exterior corridors
- Balconies and terraces
- Garden and boundary walls
- Columns and passageways
- Restaurants and retail feature walls
Project Application Example
For hotel corridors or villa façades, multiple fixtures can be installed at consistent intervals to create a repeated up-and-down light pattern. The recommended spacing should be confirmed according to the mounting height, wall material and required visual effect.
OEM and ODM Support
DAYBREAK supports lighting wholesalers, contractors and project buyers with OEM and ODM services. Available options can include light colour, housing finish, product labelling, packaging and project-specific configuration, subject to technical evaluation and order quantity.
Request a Datasheet or Quotation
Send us your required quantity, installation location, preferred light colour and target market. Contact DAYBREAK to request the technical datasheet, project recommendation or quotation.
6W IP65 Up and Down LED Wall Light
This compact 6W LED wall light creates a clean up and down lighting effect on exterior walls. Its IP65 high-grade aluminium housing provides reliable performance in outdoor environments. It is suitable for façades, entrances, corridors, columns and feature walls.
Key Features
- Up and Down Light: Two 3W LED modules create a balanced double-beam pattern.
- IP65 Protection: Protects the internal components against rain, water jets and dust.
- Compact Size: The 160 × 68 × 60 mm body fits narrow walls and columns.
- Multiple Light Colours: Available in warm white, white, yellow, blue, red and green.
- Durable Housing: High-grade aluminium body with a matte black finish.
Specifications
| Model | DB-LWL-A05CIP65-6W |
| Power | 6W (2 × 3W) |
| Input Voltage | AC 85–265V, 50/60Hz |
| Light Direction | Up and down |
| Luminous Efficacy | 80–90 lm/W |
| CRI | Ra >80 |
| Dimensions | 160 × 68 × 60 mm |
| IP Rating | IP65 |
| Material | High-grade aluminium alloy |
| Finish | Matte black |
| Light Colours | Warm white, white, yellow, blue, red or green |
| Certifications | CE and RoHS |
| Warranty | 3 years |
Design and Performance
The aluminium housing supports heat dissipation and provides a durable structure for daily outdoor use. The upper and lower LED modules project light onto the wall, highlighting surface textures and architectural details.
Applications
- Building façades
- Villa and apartment entrances
- Hotel corridors
- Balconies and terraces
- Columns and boundary walls
- Restaurants and retail spaces
OEM and ODM Support
DAYBREAK provides OEM and ODM support for wholesalers, contractors and project buyers. Custom options include light colour, finish, label and packaging.
Request a Quote
Send us your required quantity, light colour and installation location. Contact us for the datasheet, sample or project quotation.
