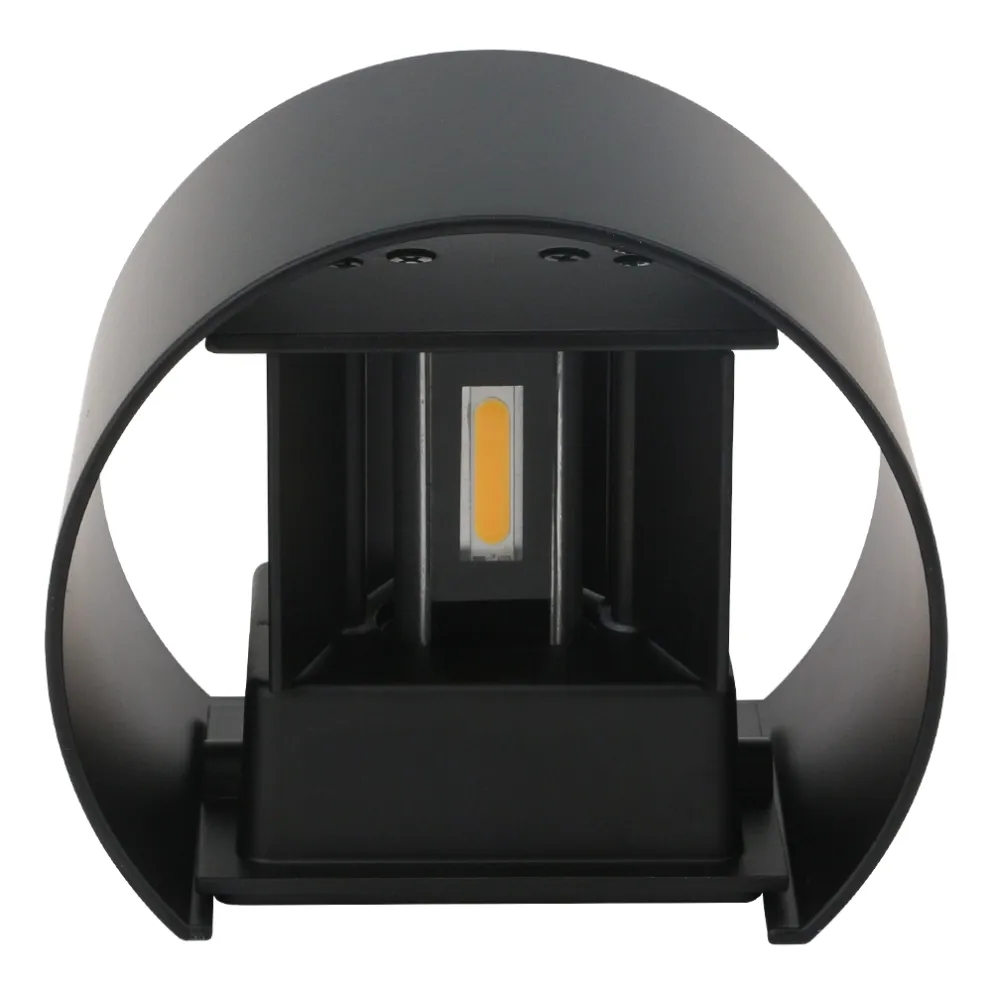

7W/12W 135mm Rounded IP65 Up & Down LED Wall Light – DB-LWL-A06B
Compact 7W/12W IP65 wall light with a rounded aluminium body, wide up-and-down light distribution, CRI>80 and black or white finishes.
Rounded Wall Light with Wide Up and Down Illumination
The DB-LWL-A06B combines a compact rounded housing with balanced upward and downward light. Its distinctive open-sided design adds visual detail while keeping the light source inside the fixture. Choose 7W for decorative accent lighting or 12W for a stronger wall-washing effect.
Key Features
- Two power options: 7W and 12W in the same housing design.
- Up and down lighting: Creates a balanced architectural light pattern.
- IP65 protection: Suitable for indoor and outdoor wall installations.
- Compact rounded body: Only 135mm wide for easy integration into modern facades.
- Black or white finish: Matches different wall materials and project styles.
Technical Specifications
| Model | DB-LWL-A06BIP65-7W / DB-LWL-A06BIP65-12W |
| Power | 7W (2 × 3.5W) / 12W (2 × 6W) |
| Input Voltage | AC85–265V, 50/60Hz |
| Light Distribution | Up and down |
| Beam Angle | 0°–180° |
| Luminous Efficiency | 70–80 lm/W |
| CRI | Ra>80 |
| Color Temperature | Warm White / Neutral White / White |
| IP Rating | IP65 |
| Dimensions | 135 × 100 × 100 mm |
| Material | High-grade aluminium alloy |
| Finish | Matte Black / White |
| Installation | Surface-mounted wall installation |
| Dimming | Available on request |
| Certification | CE, RoHS |
| Warranty | 3 years |
Optical and Housing Design
The upper and lower light exits create two clear wall washes for facade decoration and visual guidance. The aluminium housing supports heat dissipation, while the IP65 structure protects the internal components against dust and water jets.
Applications
Suitable for villa entrances, hotel facades, apartment buildings, balconies, covered walkways, restaurants and commercial exterior walls.
OEM/ODM Support
Power, color temperature, finish, driver, labeling and packaging can be prepared for project and wholesale orders. Product datasheets and dimensional drawings are available on request.
Request Project Information
Need a sample, datasheet or project quotation? Send us the required quantity, power, color temperature, finish and project location.
