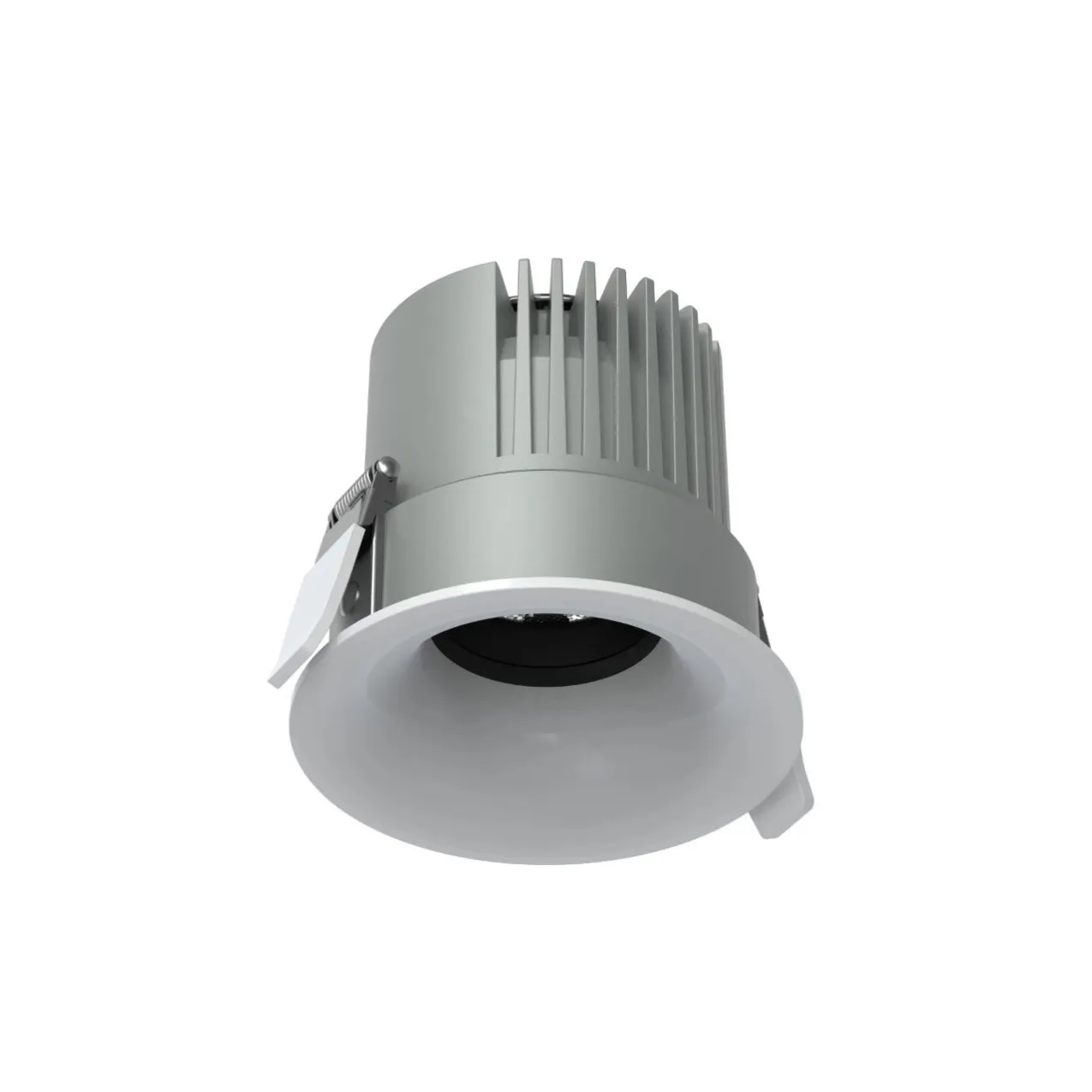

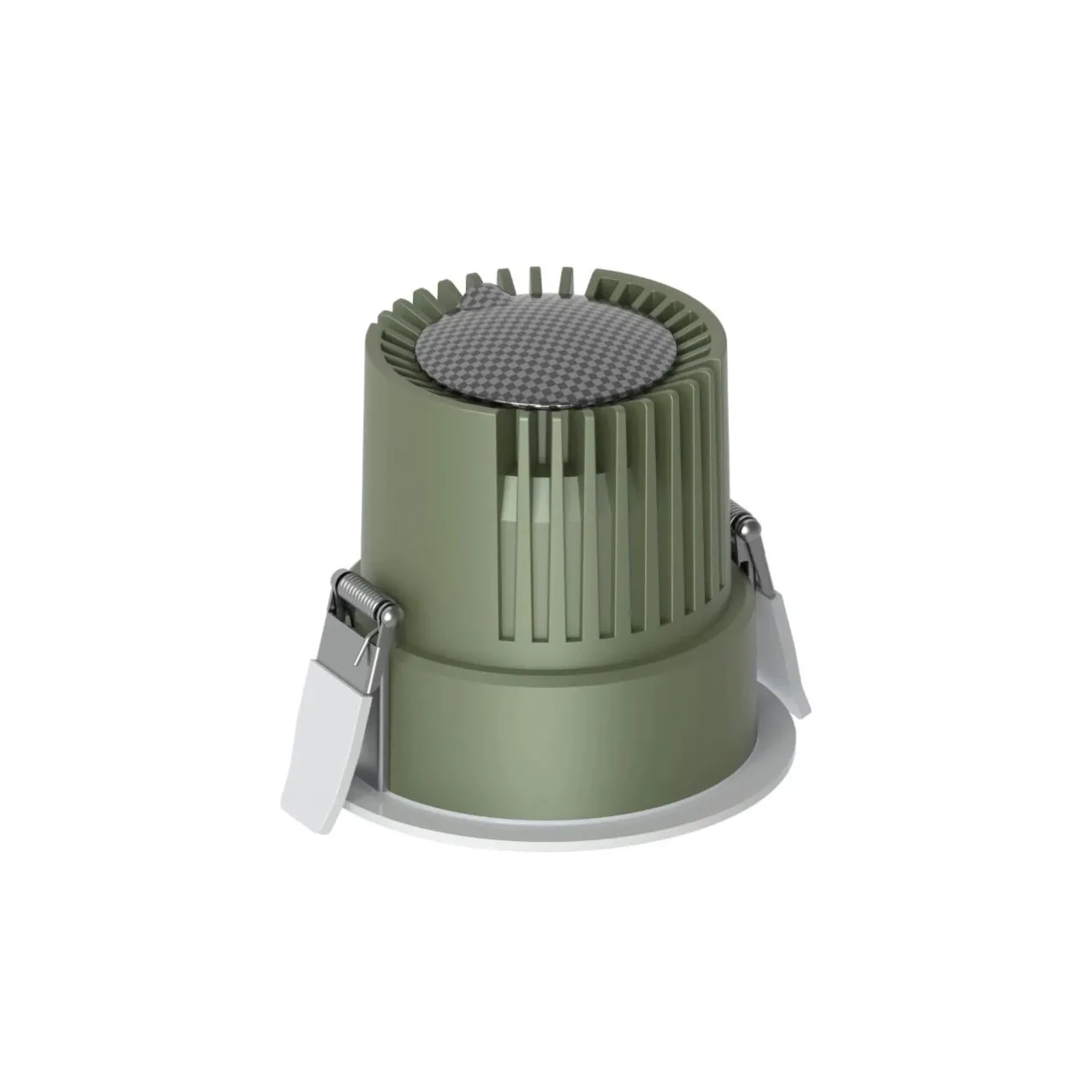

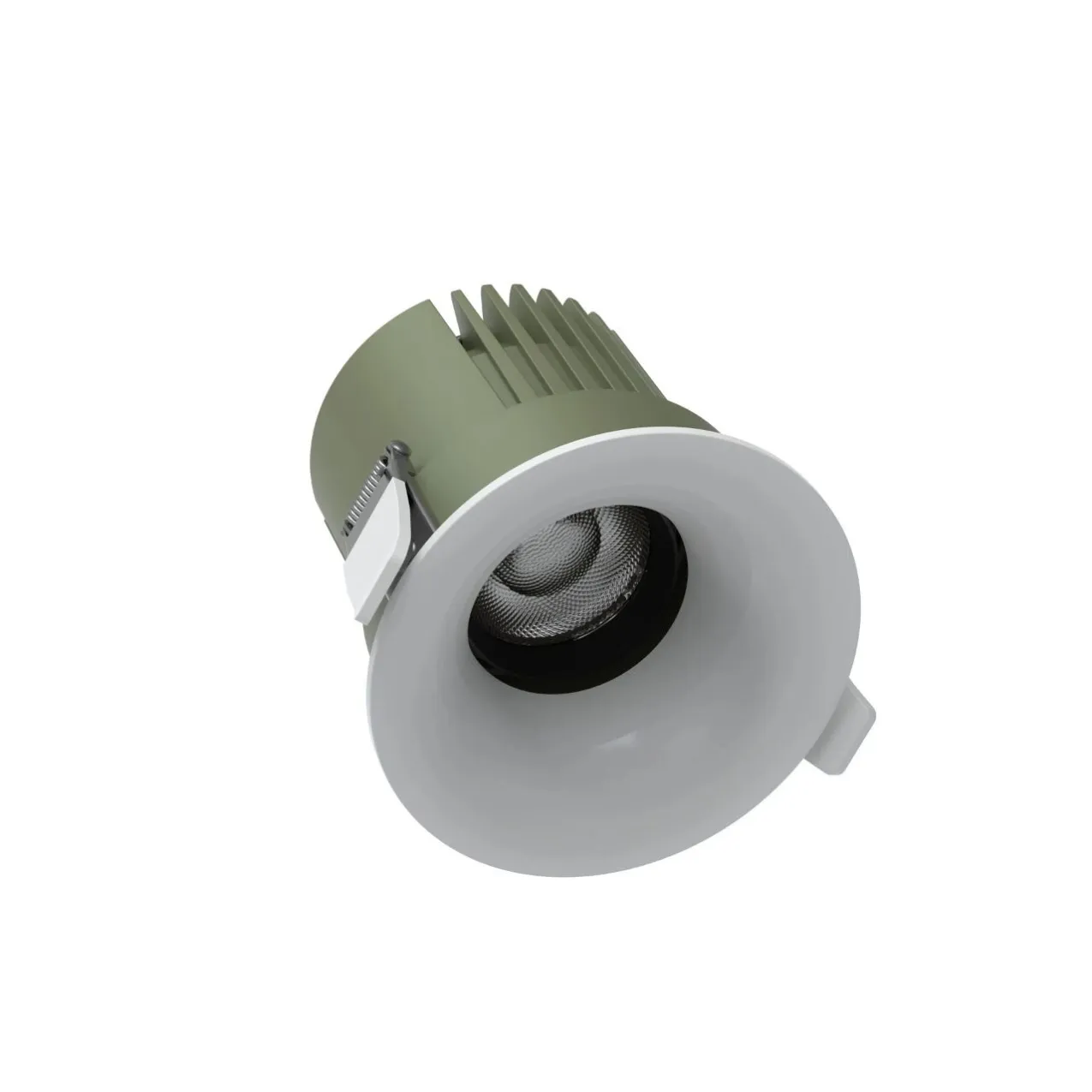

7W/12W/15W Adjustable 60° COB Downlight with Lifud Driver – DB-DL10D
Adjustable recessed COB downlight with a 60° beam, Bridgelux chip and Lifud driver. Available in 7W, 12W and 15W with six housing colours.
Adjust the Beam Without Moving the Fixture
The DB-DL10D Series has a single-axis adjustable optical module that allows the beam to be directed after installation. It is suitable for projects where displays, tables or wall features do not sit directly below the ceiling opening.
Key Project Benefits
- Single-Axis Adjustment: Directs the beam towards the required area without relocating the ceiling cut-out.
- 60° Beam: Provides wider coverage for general and display lighting.
- Bridgelux COB: Delivers a consistent light source across the three wattages.
- Lifud Driver: Suitable for commercial and hospitality lighting projects.
- Six Housing Colours: Black, white, green, orange, grey and gold options support different interior schemes.
Technical Specifications
| Specification | 7W | 12W | 15W |
|---|---|---|---|
| Model | DB-DL10D-7W | DB-DL10D-12W | DB-DL10D-15W |
| Power | 7W | 12W | 15W |
| LED | Bridgelux COB | ||
| Fixture Size | Ø65 × 66mm | Ø85 × 76mm | Ø85 × 76mm |
| Ceiling Cut-Out | Ø55mm | Ø75mm | Ø75mm |
| Beam Angle | 60° | ||
| Optical Adjustment | Single-axis directional adjustment | ||
| Input Voltage | AC220V | ||
| Driver | Lifud | ||
| Luminous Efficiency | 70–80 lm/W | ||
| CCT | Warm White / Neutral White / White | ||
| Material | Aluminium alloy | ||
| Housing Colours | Black / White / Green / Orange / Grey / Gold | ||
| Installation | Recessed ceiling installation | ||
| Certifications | CE and RoHS | ||
| Warranty | 3 years | ||
How to Select the Wattage
Choose the compact 7W model for lower ceilings and smaller display areas. Use 12W for hotel rooms, restaurants and standard retail applications. Select 15W where more light is required while retaining the same 75mm ceiling cut-out as the 12W model.
Applications
Suitable for hotels, retail stores, restaurants, galleries, showrooms and residential interiors. The adjustable lens helps direct light towards merchandise, artwork, tables and wall features.
Project and OEM Support
CCT, housing colour, product labels and packaging can be prepared for project and wholesale orders. Send us the wattage, quantity, CCT, housing colour and destination to request a datasheet, sample or quotation.
