7W/12W 200–370mm Linear Up & Down LED Wall Light, IP44 – DB-LWL-A04B
Linear IP44 wall light in 200mm, 300mm and 370mm lengths. 7W/12W options, CRI>80 aluminium housing and soft up-and-down lighting for hotels and corridors.
Linear Wall Light in Three Lengths
The DB-LWL-A04B combines a clean horizontal profile with soft upward and downward illumination. Three lengths allow designers and contractors to keep the same appearance across corridors, entrances and feature walls of different sizes.
Key Features
- Three lengths: 200mm, 300mm and 370mm options for coordinated project layouts.
- 7W and 12W versions: Select the required output according to wall size and fixture spacing.
- Up and down illumination: Creates a balanced architectural wall-wash effect.
- CRI>80: Maintains natural wall and material colors.

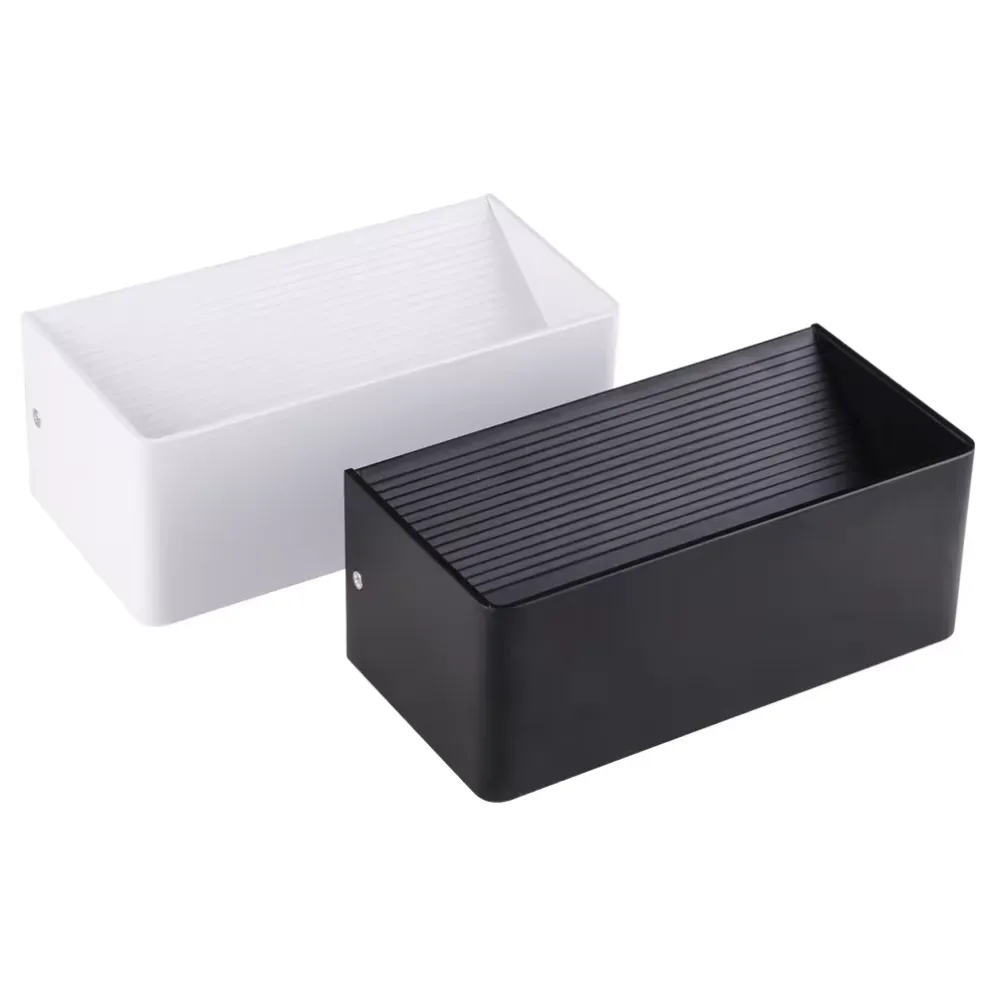

- Black or white finish: Matches modern hospitality and residential interiors.
Technical Specifications
| Model | Power | Dimensions |
|---|---|---|
| DB-LWL-A04B200-7W | 7W | 200 × 100 × 80 mm |
| DB-LWL-A04B300-7W | 7W | 300 × 100 × 80 mm |
| DB-LWL-A04B370-12W | 12W | 370 × 100 × 80 mm |
| Input Voltage | AC85–265V, 50/60Hz |
| Light Distribution | Up and down |
| Luminous Efficiency | 70–80 lm/W |
| CRI | Ra>80 |
| Color Temperature | Warm White / Neutral White / White |
| IP Rating | IP44 |
| Material | High-grade aluminium alloy |
| Finish | Matte Black / White |
| Installation | Surface-mounted wall installation |
| Certification | CE, RoHS |
| Warranty | 3 years |
Lighting and Housing Design

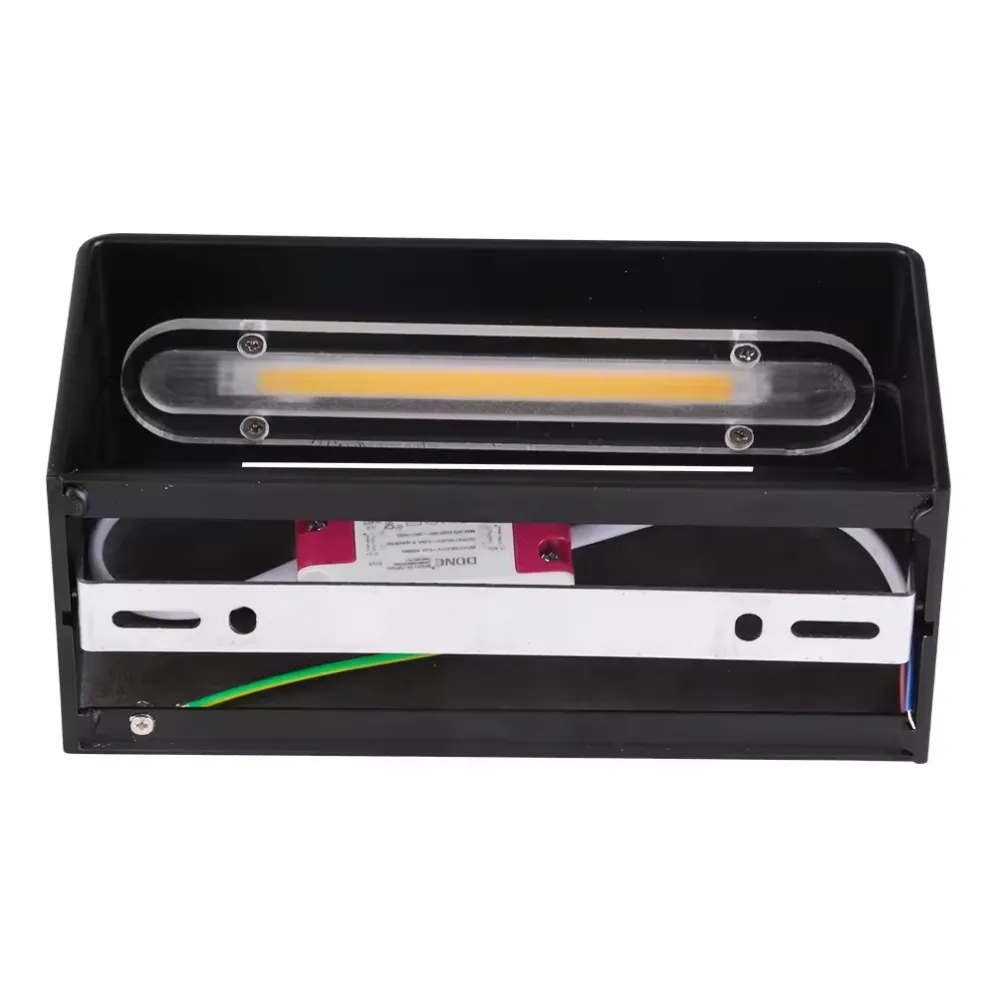

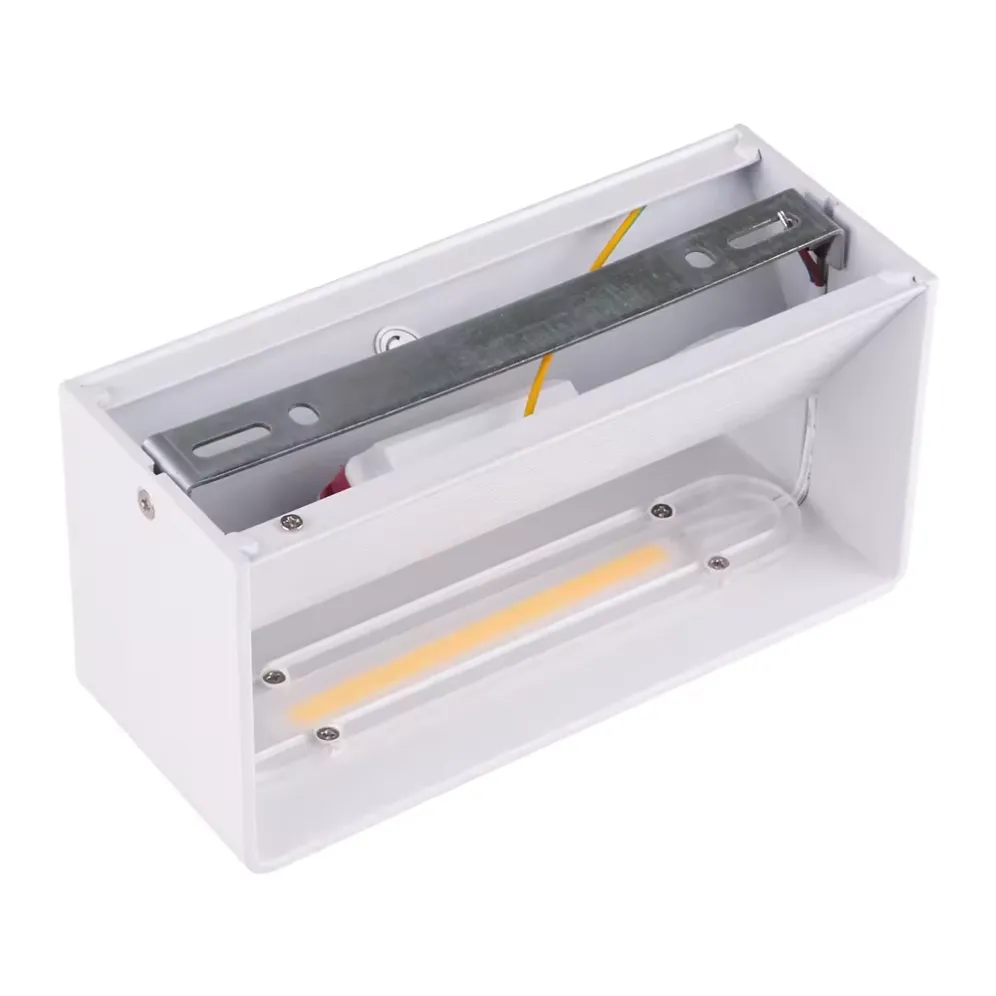

The long aluminium body creates a wider visual line than a compact square wall light. Recessed upper and lower light openings help keep the LEDs away from direct view while spreading light across the wall.
Which Size Should You Choose?
| 200mm / 7W | Suitable for narrower walls, columns and closer fixture spacing. |
| 300mm / 7W | Suitable for hotel corridors and medium-width feature walls. |
| 370mm / 12W | Suitable for larger walls and projects requiring a stronger visual presence. |
Applications

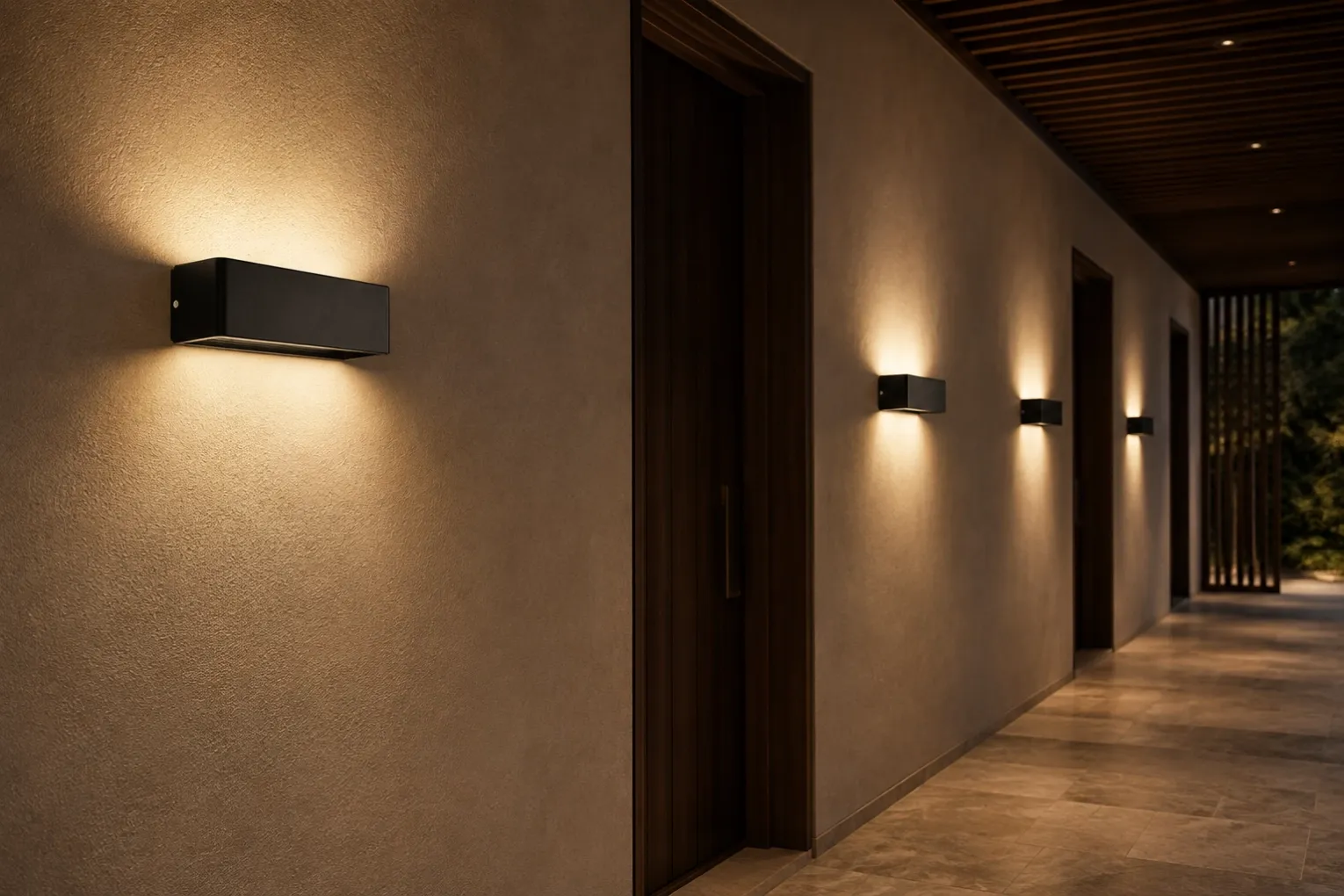

Recommended for hotel corridors, apartment entrances, villa interiors, restaurants, stair landings and sheltered commercial walkways. Install in locations suitable for an IP44 fixture.
OEM/ODM Support
Length, power, color temperature, finish, driver, labeling and packaging can be discussed for project, wholesale and private-label orders.
Request a Project Quotation
Send us your required model, quantity, color temperature, finish and installation location. We can provide a datasheet, dimensional drawing, sample proposal and quotation.
