How to Match LED Panel Light Sizes to Office Ceiling Grids?
Check the actual ceiling-grid dimensions before selecting an LED panel light. A product described as 600 × 600 mm, 300 × 1200 mm or 2 × 4 ft may have slightly different external dimensions depending on the manufacturer and ceiling system. Confirm the clear opening, panel dimensions, mounting method and available ceiling space before placing an order.
Which LED Panel Size Matches Your Ceiling?
When is a 600 × 600 mm panel suitable?

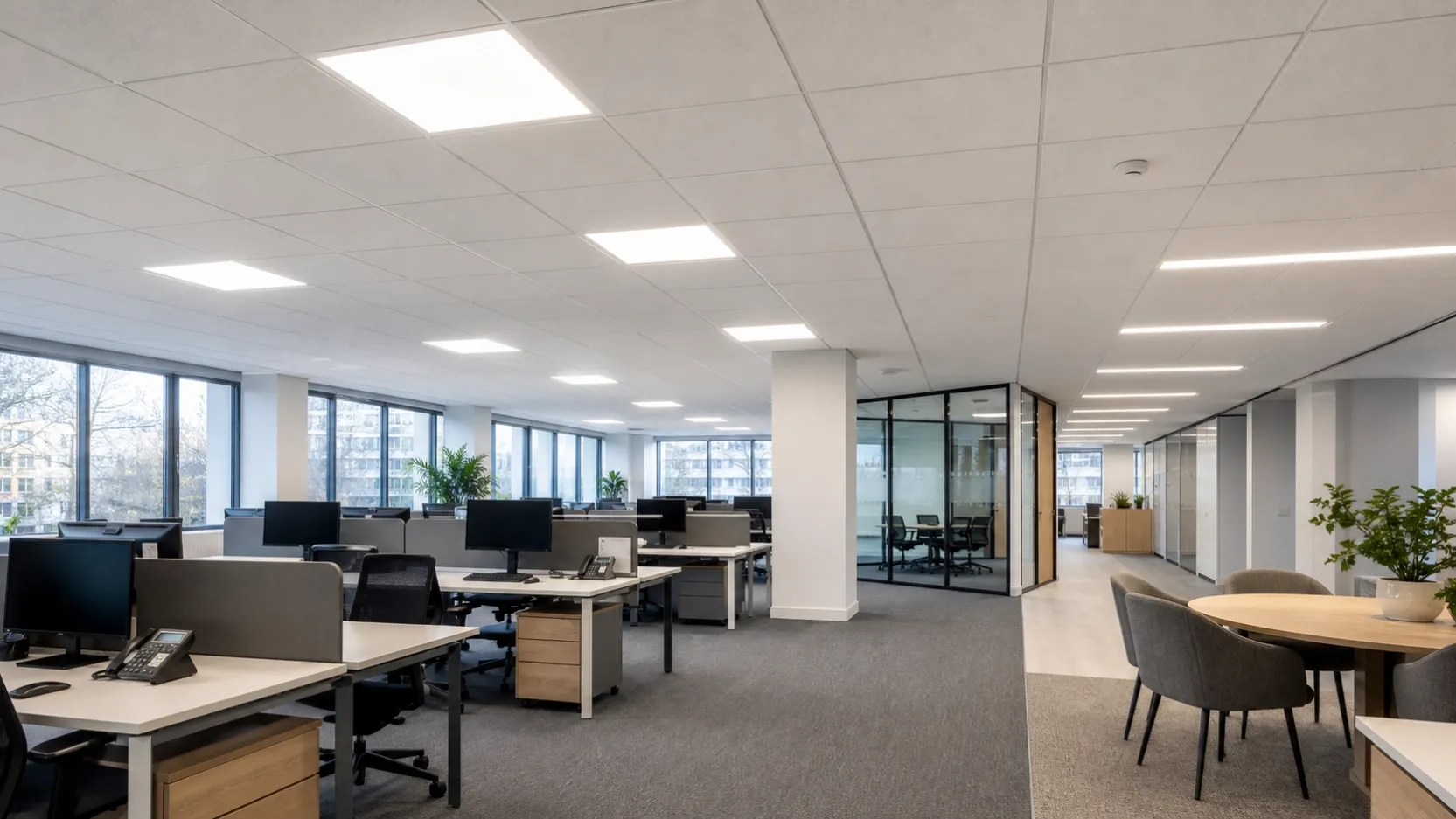

A 600 × 600 mm nominal panel can suit offices with square modular ceiling grids. Its format can be coordinated with ceiling tiles and other building services, subject to the reflected ceiling plan.
Do not assume that the luminaire itself measures exactly 600 × 600 mm. Manufacturers may make the finished panel slightly smaller so it fits inside the supporting grid. Use the dimensional drawing to confirm compatibility.
When should a 300 × 1200 mm panel be considered?
A 300 × 1200 mm nominal panel can suit rectangular ceiling modules, corridors or layouts where a longer luminaire shape aligns with desk rows and circulation routes.
The orientation should be checked against air-conditioning outlets, sprinklers, sensors and ceiling access panels.
Can metric panels replace imperial panels?
Not without checking the measurements. A metric 600 × 600 mm ceiling module and an imperial 2 × 2 ft system are not identical. Products with similar descriptions may have different external dimensions and mounting requirements.
| Nominal Size | Possible Application | Required Check |
|---|---|---|
| 600 × 600 mm | Square modular office ceilings | Actual panel size and clear grid opening |
| 300 × 1200 mm | Rectangular modules and linear layouts | Orientation, support and ceiling coordination |
| 600 × 1200 mm | Larger modular ceiling areas | Fixture weight, grid support and access |
| 2 × 2 ft or 2 × 4 ft | Imperial ceiling systems | Exact dimensions of both grid and luminaire |
Why Is the Actual Panel Size Important?
What should be measured before ordering?
The nominal size is useful for product classification, but it does not confirm installation compatibility. Measure or obtain drawings for the following items:
- Centre-to-centre ceiling-grid module
- Clear opening between the supporting T-bars
- Exact external dimensions of the LED panel
- Panel thickness and driver dimensions
- Available ceiling void
- Required safety supports
A physical sample is advisable when the ceiling system is already installed or when the project uses a non-standard grid.
Which Installation Method Fits the Project?
Can the same panel be installed in different ways?
Some LED panels support recessed, surface-mounted or suspended installation when compatible accessories are available. This must be confirmed for the selected model rather than assumed from the panel size.
| Installation | Ceiling Condition | Items to Confirm |
|---|---|---|
| Recessed | Compatible T-bar ceiling | Panel dimensions, grid support and safety cable |
| Surface-mounted | Concrete or finished solid ceiling | Mounting frame, driver space and cable entry |
| Suspended | Open or high ceiling | Suspension points, cable length and power connection |
| Plasterboard recessed | Gypsum-board ceiling | Compatible recessed frame and cut-out dimensions |
How Many LED Panels Does an Office Need?
Can the quantity be calculated from floor area alone?
No. Floor area alone is not enough to determine the final quantity. The calculation should also consider the model-specific lumen output and light distribution, ceiling height, work-plane requirements, room reflectance, daylight and panel positions.
Request the photometric file for the proposed model and use it in the project calculation. The lighting designer should also check applicable workplace, emergency-lighting and local building requirements.
What Should Be Checked for a Retrofit?
Which details are needed when replacing existing lights?
Record the existing luminaire and ceiling conditions before requesting a quotation. Photographs alone may not show the measurements or electrical configuration accurately.
- Existing luminaire dimensions
- Ceiling-grid type and clear opening
- Supply voltage and frequency
- Driver position and available ceiling depth
- Required color temperature
- On/off, dimming or control method
- Emergency-lighting arrangement
- Certification requirements for the destination market
How Should You Confirm the Final Selection?
Match the panel’s actual dimensions to the ceiling system first. Then confirm the mounting accessories, photometric data, electrical configuration and installation access for the selected model.
View our LED panel light category to compare available configurations. For a project-specific recommendation, send us your reflected ceiling plan, ceiling-grid dimensions, room size, mounting method and required electrical specifications.
Specifications and performance vary by model, configuration and test conditions. Please refer to the relevant product datasheet, dimensional drawing and project calculation before final selection.
Frequently Asked Questions
Is a 600 × 600 mm LED panel exactly 600 × 600 mm?
Not necessarily. The description may refer to the nominal ceiling module. Confirm the exact external dimensions in the product drawing.
Can a metric panel fit a 2 × 2 ft ceiling grid?
Do not assume compatibility. Compare the panel dimensions with the clear opening and support arrangement of the imperial grid.
Can an LED panel be installed on a concrete ceiling?
It may be possible when the selected model has a compatible surface-mount frame. Confirm the frame depth, driver position and cable entry.
What information should be sent for panel light selection?
Send the ceiling plan, grid measurements, room dimensions, ceiling height, installation method, supply voltage and required control method.
